Product Overview

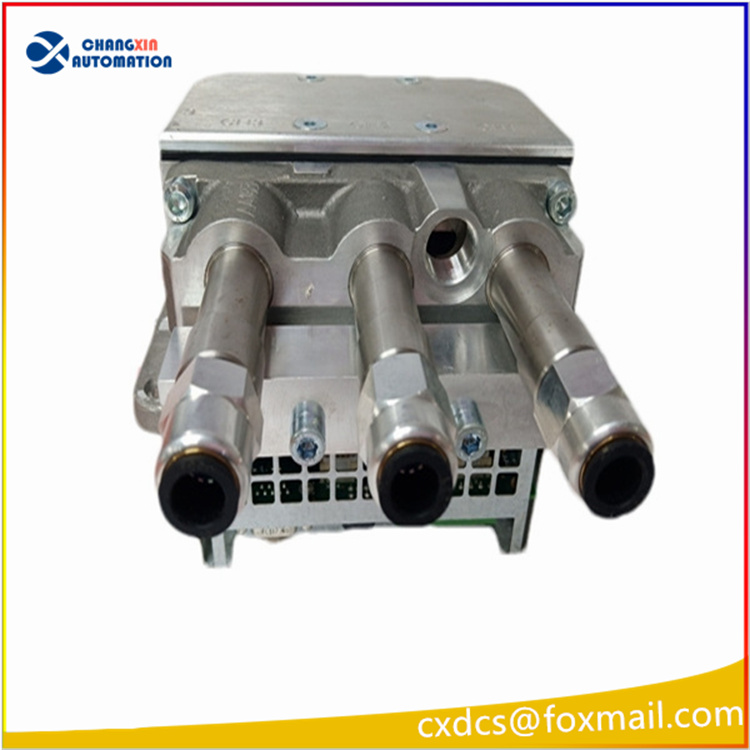

ABB ACU-01B (Part No. 3HNA024871-001/12) is an original high-precision Air Control Unit specially developed for ABB industrial painting robot systems, serving as the core pneumatic control component for automated spraying processes. Designed for automatic spraying production lines, it accurately controls the compressed air pressure, flow rate and air ratio during the spraying process, stably adjusts atomizing air and shaping air parameters, and ensures uniform paint atomization, consistent coating thickness and high surface finish quality.
Integrated with high-precision pneumatic regulating modules, signal acquisition and closed-loop control system, the ACU-01B supports automatic program linkage adjustment and dynamically matches robot spraying trajectories and process parameters. Adopting an industrial aluminum alloy body, it features dust resistance, pollution resistance, aging resistance and vibration resistance, adapting to long-term continuous spraying operation in workshops. It effectively solves process defects such as color difference, sagging and uneven coating thickness. The suffix /12 represents the factory batch version, with completely consistent core hardware specifications and full interchangeability with the standard model 3HNA024871-001.
2. Technical Parameters
|
Parameter
|
Specification
|
|
Model
|
ACU-01B
|
|
Part Number
|
3HNA024871-001/12
|
|
Product Name
|
Painting Robot Air Control Unit
|
|
Origin
|
Original ABB Switzerland Imported
|
|
Max Air Supply Pressure
|
10 bar
|
|
Max Air Flow
|
200 L/min
|
|
Control Signal
|
0-10V / 4-20mA standard analog signal
|
|
Adjustment Range
|
0~100% full-range closed-loop precise adjustment
|
|
Operating Voltage
|
DC 24V ±20%
|
|
Operating Temperature
|
-10℃ ~ +60℃ industrial wide temperature range
|
|
Protection Grade
|
IP65 dustproof and waterproof
|
|
Body Material
|
High-strength aviation aluminum alloy, anti-corrosion and anti-fouling
|
|
Product Weight
|
Approx. 3.66kg
|
|
Core Functions
|
Precise pressure regulation for atomizing/shaping air, flow closed-loop control, spraying process calibration
|
|
Version Description
|
Suffix /12 is batch version, fully interchangeable with standard model
|
3. Product Features
-
Precise Spraying Process Control: Professional pneumatic closed-loop adjustment algorithm stably controls atomizing and shaping air pressure and flow, ensuring uniform coating film and consistent color difference, greatly improving product spraying yield.
-
Excellent Automatic Line Compatibility: Supports standard 0-10V and 4-20mA industrial analog signals, seamlessly linking with ABB robot control systems to dynamically adjust air parameters following spraying trajectories, suitable for fully automatic spraying lines.
-
Industrial-grade Durability & Protection: Integrated aluminum alloy body with IP65 protection grade, dust-proof, oil-proof, corrosion-resistant and vibration-resistant, adapting to harsh workshop environments with high dust and humidity for continuous operation.
-
High Adjustment Accuracy & Stability: 0~100% full linear adjustment without hysteresis or signal drift. Stable long-term operation avoids spraying defects caused by air pressure fluctuation and ensures consistent batch production quality.
