Product Description

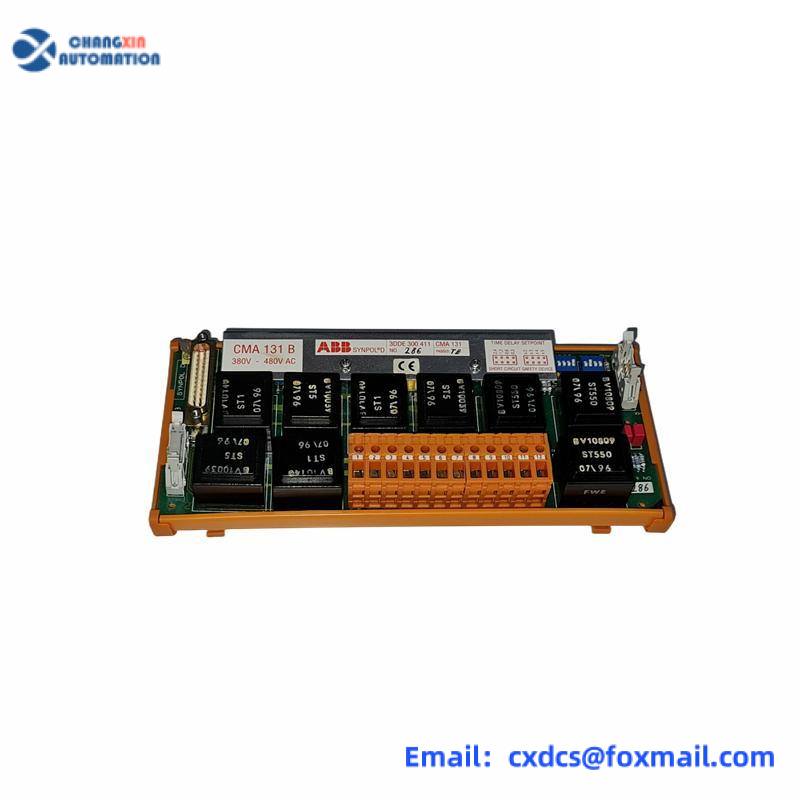

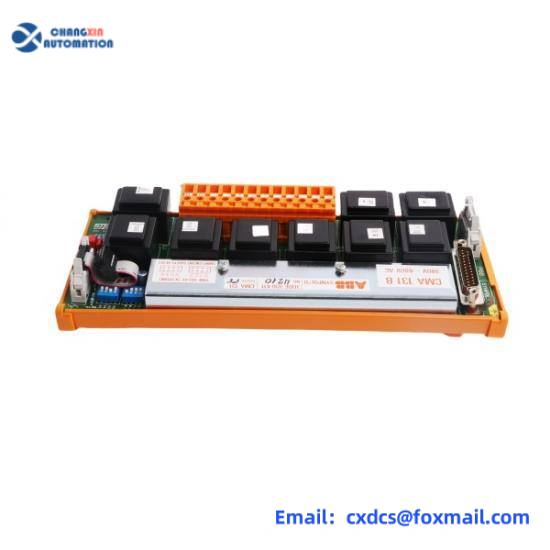

ABB CMA131 (Order No.3DDE300411) is a relay output board of SYNPOL-D series, designed for gas turbine & steam turbine protection and sequence control. It serves as the core I/O module for ABB turbine control system. This board integrates multiple relay output circuits for turbine interlock protection, trip circuits, alarms and auxiliary equipment logic drive. Equipped with hardware fault diagnosis and status feedback, it adopts integrated terminal block design and orange rail-mounted base. With excellent vibration and EMC resistance, it is developed for protection & control of gas and steam turbines in power plants and acts as critical spare part for SYNPOL-D system.
Specifications
- Model: CMA131, Order No.: 3DDE300411
- Manufacturer: ABB
- Product Type: SYNPOL-D Turbine Protection Relay Output Board
- Power Supply: 380~480VAC
- Channel Type: Multiple isolated relay contact outputs
- Contact Type: Passive relay contacts
- Functions: Unit protection trip, interlock logic output, alarm circuit driving
- Mounting: Rail-mounted rack installation with integrated orange base terminals
- Operating Temperature: -40℃ ~ +70℃
- Storage Temperature: -40℃ ~ +85℃
- Relative Humidity: 5%~95%, non-condensing
- Vibration Resistance: 2g, 10–500Hz
- Protection Rating: IP20 (cabinet installation)
- Features: Built-in hardware self-diagnosis, channel status monitoring, high-reliability safety trip loop
- Compatible System: ABB SYNPOL-D Turbine Control System
Application
- SYNPOL-D control system for gas turbines and steam turbines in thermal & combined-cycle power plants.
- Gas turbine emergency trip protection circuit, unit interlock protection and alarm signal output.
- Drive field solenoid valves, auxiliary relays and audible & visual alarm devices.
- Spare replacement during overhaul and maintenance of legacy SYNPOL-D power plant systems.
- Sequence control of turbine units and logic output for auxiliary equipment start/stop.
Same Series Models (SYNPOL-D Series Boards)
- CMA130 3DDE300410: Basic relay output board
- CMA121 3DDE300401: Analog input board
- CMA141 3DDE300421: Digital input board
- CMA151 3DDE300431: CPU main control board
- CMA161 3DDE300441: Communication interface board
