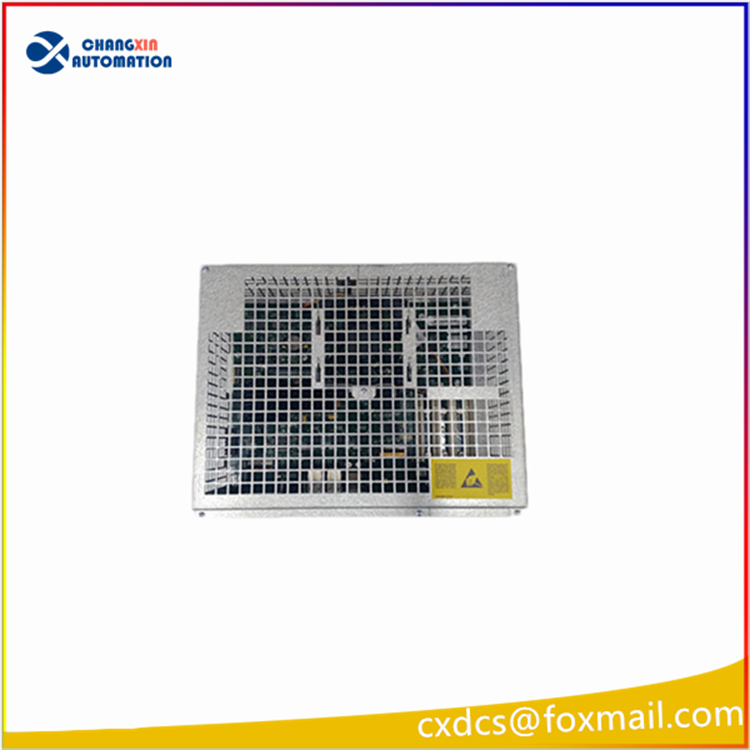

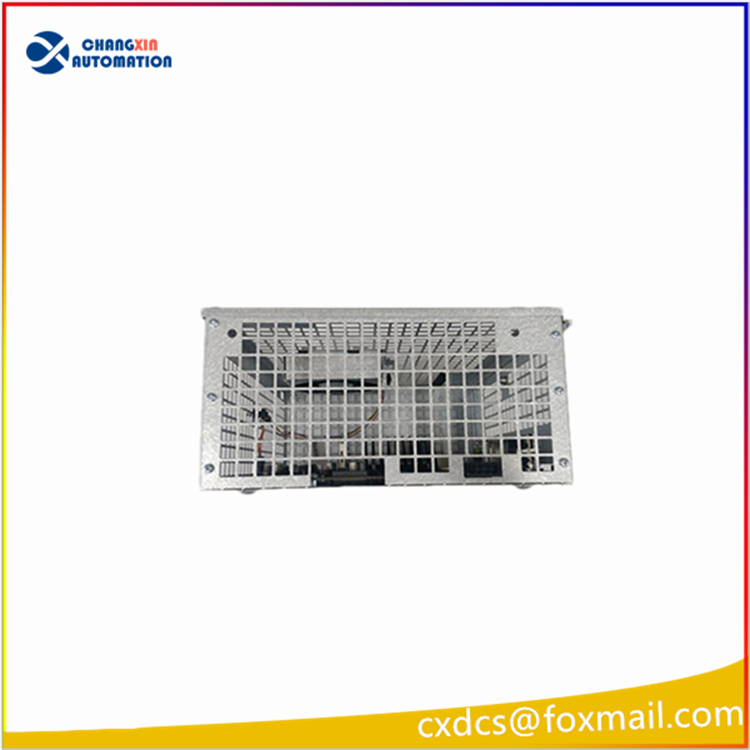

ABB DSQC639 3HAC025097-001/16 Main Computer Motherboard

ABB DSQC639 (Order Number 3HAC025097-001/16) Product Description
DSQC639 is the main computer motherboard (control unit) of the **ABB IRC5 industrial robot control cabinet**, serving as the core computing control component of the control cabinet, responsible for motion logic scheduling, program parsing, IO control, and overall communication interaction; `3HAC025097-001` is the material code, and the suffix `/16` indicates that this hardware version is version 16.

Core Usage Compatibility

1. Compatible Models: ABB IRC5 single cabinet / compact control cabinet, covering mainstream industrial robot series such as IRB120, IRB1410, IRB2600, IRB4600, IRB6700;
2. Core Functions: Runs RobotWare system firmware, coordinating axis motion control, teaching device interaction, external bus communication (Profinet/EtherNet/IP, etc.), and fault diagnosis recording.

. Key Parameters and Features

– Integrated embedded processor, running memory, system flash memory, onboard network port, expansion slots, capable of connecting servo drives, IO modules, and teaching devices;
– `/16` belongs to a mature mass-produced hardware version, with stable compatibility, compatible with most mid-to-old versions of RobotWare (5.x mainstream firmware), different versions of the same material have downward compatibility, and some firmware has version compatibility restrictions;
– Installation Location: Inside the IRC5 control cabinet main compartment, as the core board card of the entire cabinet.
