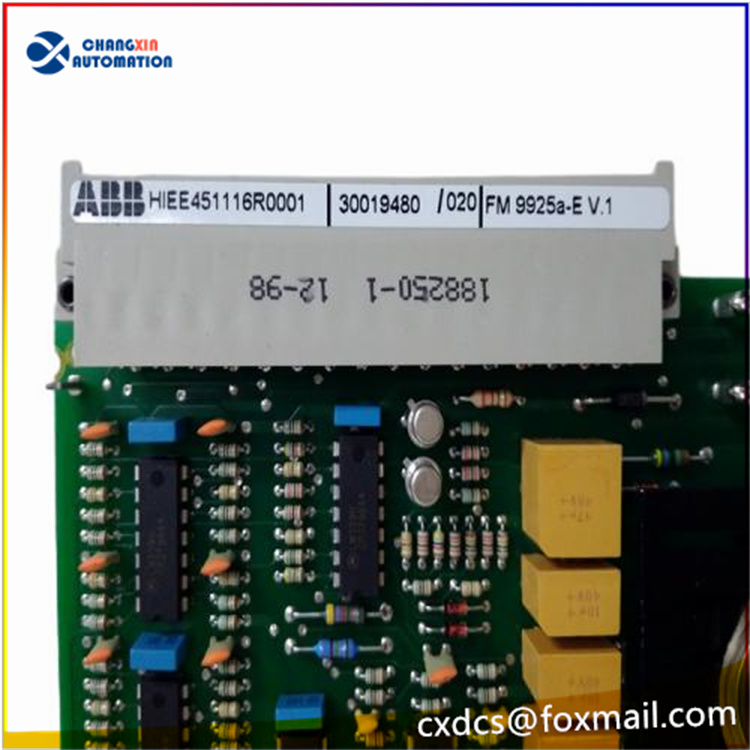

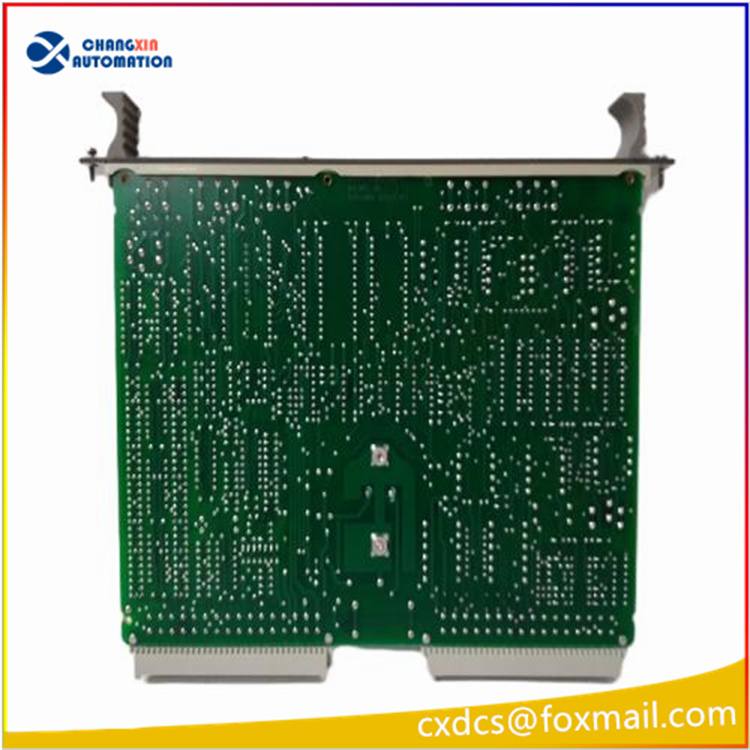

ABB FM9925A-E HIEE451116R0001 Signal Conditioning Communication Board

I. Model Classification and Positioning
Dual encoding distinction
Board hardware model: FM9925A-E V.1
ABB original factory spare part part number: HIEE451116R0001 (complete matching of suffix R0001 is required for purchase and maintenance)
Compatible system
ABB Procontrol P14 power plant-specific DCS, equipped with UNITROL series generator excitation system, belongs to CPCI European rack-mounted plug-in card-based integrated board for mixed signal conditioning + bus communication, core acquisition spare parts for thermal power / hydropower / substation of ABB Group.
Core function
Collect analog / digital quantities from generators, excitation cabinets, plant power supply, transformers on-site, complete isolation, amplification, filtering, analog-to-digital conversion, and then upload through the backplane high-speed bus to the P14 main control unit, while providing external protocol conversion channels.

Hardware Structure and Channel Configuration
1. Physical Form
Standard European CPCI plug-in card, with dual European connectors on the front and back:
Front side: Terminal panel, for external connection of on-site sensors and switch signals
Back side: Backplane bus socket, for connection to the internal high-speed data bus of the P14 rack
Overall weight: 0.87kg; Protection level: IP20 (installed in the power plant control room)
Installation: Hot-swappable slot of the P14 standard rack (online replacement support for power plant operation and maintenance)
2. Signal Channels (Mixed AI + DI)
Analog AI channels: Multi-channel isolated differential input
Support 4–20mA, 0–10V, ±10V voltage/current signals, compatible with PT100 temperature, excitation voltage, stator current, generator speed transmitters; single channel independent electrical isolation, suppressing strong electromagnetic interference (essential in power plant high-voltage environment)
Digital DI channels: Passive switch quantity, position contact, protection action signal collection, with open-circuit diagnosis
Built-in precision operational amplifier, second-order anti-interference filter circuit, 12~14 bit ADC high-precision sampling
3. Communication Architecture
Internal bus of the backplane: P14 dedicated high-speed redundant process bus, real-time upload of collected data to the main control
External protocol expansion: Integrated RS485, supports Modbus RTU, can be connected to the background monitoring, relay protection device
Onboard dual-core processing unit, local pre-computation, fault cache, channel abnormal self-diagnosis, panel indicator lights intuitively display channel faults, communication interruption, power abnormality

Electrical Environmental Parameters
Power supply: DC 24V rack system power supply
Operating temperature: -25℃ ~ +55℃ (standard wide temperature of power plant control room)
Storage temperature: -20℃ ~ +70℃
Humidity: 5%~95% RH, no condensation
Electromagnetic interference resistance: Complies with power IEC 61000 electromagnetic compatibility standard, tolerant to high-voltage electric field interference

Core Functions
Multi-channel signal isolation and conditioning
Electrical isolation of strong and weak signals, preventing high-voltage from the excitation circuit from entering the control circuit and burning the main control; amplification and noise reduction of weak sensor signals.
Real-time data collection and conversion
Synchronous collection of generator temperature, excitation current/voltage, active/reactive power, circuit breaker position, protection trip signals.
System bus data interaction
Redundant communication with P14 main control, ensuring no delay in uploading excitation regulation and generator monitoring data.
Hardware fault diagnosis
Single-channel open circuit, short circuit, over-range, bus disconnection automatic alarm, shortening power plant fault troubleshooting time.
Protocol gateway conversion
Convert P14 internal private bus data to Modbus, connect to third-party monitoring background.

Typical Application Scenarios
UNITROL excitation control cabinet signal acquisition core board for hydroelectric / steam turbine generator sets Power plant and hydropower plant Procontrol P14 DCS process control cabinet
Substation plant power supply, main transformer measurement and control signal preprocessing unit
Excitation monitoring system for synchronous condensers and pumped storage units
