I. Basic Information
Brand: ABB (INSUM Intelligent Motor Management System)

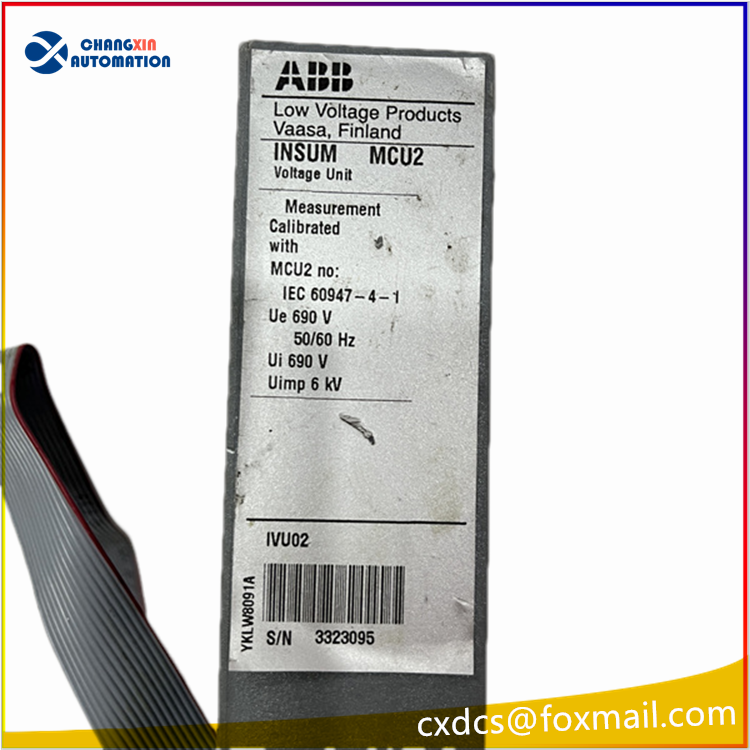

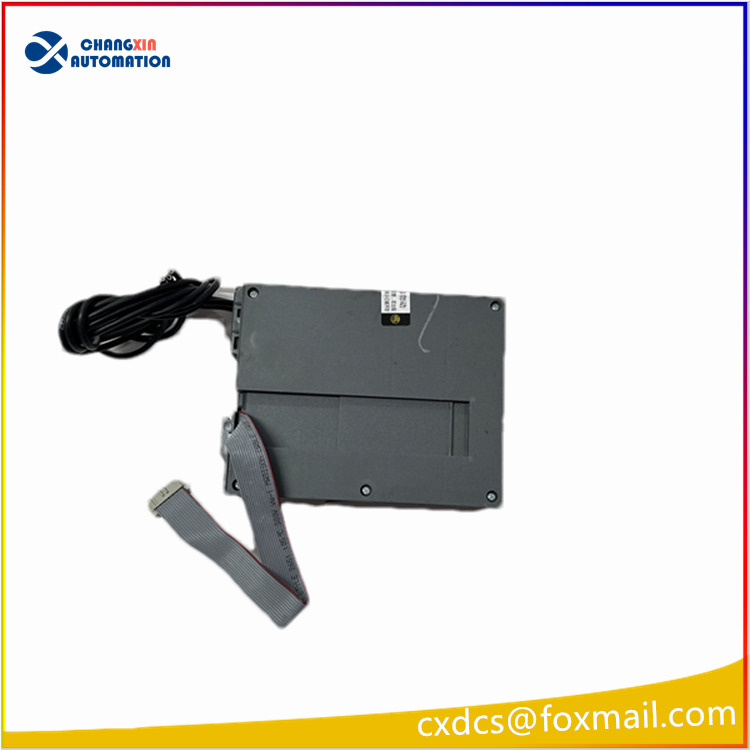

Model: INSUMMCU2 (Full common model: MCU2A02V24, Part Number 216MB66 HESG324510M1)
Product Type: Intelligent Motor Control and Protection Unit (Motor Control Unit)
Application Architecture: INSUM Low-Voltage Intelligent Motor Control System, integrated into MNS Low-Voltage Drawer-Type Switchgear, used for local measurement, control, protection of low-voltage motors such as fans, pumps, belt conveyors, etc.
Installation Method: Built-in plug-in installation in low-voltage drawer unit, DIN rail installation
Core Function Positioning
Motor Comprehensive Protection: Achieve comprehensive protection for three-phase asynchronous motors against overload, overcurrent, short circuit, phase loss, phase imbalance, grounding leakage, overvoltage, undervoltage, and start-up timeout. Support inverse-time overcurrent characteristic.
Local Start/Stop Control: Integrated with direct motor start-up, star-delta start-up, soft start logic, allowing local button control + remote DCS/PLC remote start/stop control.
Real-time Electrical Parameter Collection: Measure three-phase current, three-phase voltage, active/ reactive power, power factor, accumulated energy, motor operating temperature, start/stop times, operating duration.
Remote Communication Upload via Bus: Through INSUM’s dedicated VLA field bus, combined with RS485 interface, using Modbus RTU protocol to upload telemetry, telemetry, fault SOE events to DCS, SCADA back-end, achieving four remote monitoring functions.
Fault Diagnosis and Event Recording: Can store multiple fault trip records, accurately record fault type and fault time, facilitating analysis of motor fault traceability.
Key Electrical Parameters
Control Power Supply: 208–240VAC 50/60Hz
Rated Measuring Current: Standard 10A (Can be extended to large current motor circuits by external CT)
Protection Accuracy: Current measurement accuracy ±0.5 grade, supports thermal overload memory function, data not lost during power outage
Communication Specifications: RS485, Modbus RTU, VLA Field Bus multi-node networking, single bus can accommodate up to dozens of MCU2 units
DI/DO Configuration: Multiple switch quantity inputs (local start/stop, manual/auto mode, protection engagement/disengagement), relay outputs (closing, opening, fault alarm) Environmental parameters
Operating temperature: -20℃ to +70℃
Storage temperature: -40℃ to +85℃
Protection level: IP20 (inside switch cabinet)
Electromagnetic compatibility: Compliant with IEC61000 industrial anti-interference standards
List of Core Protection Functions
Overload thermal protection, stall protection, short-circuit instantaneous protection
Three-phase imbalance, phase loss, phase sequence error protection
Ground fault leakage protection, underload no-load protection
Motor winding overheating PT100 temperature protection, start-up time overlong protection
Voltage abnormality (overvoltage, undervoltage, undervoltage) protection
Core Product Features
Integrated design: Integrates motor protection, measurement and control, communication, and logic control into a single module, significantly simplifies secondary wiring of low-voltage cabinets, and reduces construction and failure probabilities.
Distributed intelligent operation and maintenance: Each motor is independently locally protected, and the bus network is centralized for networking, enabling intelligent management, energy consumption statistics, and predictive maintenance of low-voltage motor equipment throughout the plant.
Drawer-type plug-and-play: No need to reconfigure parameters when replacing the drawer, and modules support local parameter storage, resulting in high operational efficiency.
Compatible with ABB System 800xA DCS platform, widely compatible with power plants, chemical plants, and metallurgical MNS low-voltage complete switch cabinets.
Rich fault alarms: Local LED fault indicator + remote background event upload, enabling rapid identification of the cause of motor tripping.
Typical Application Scenarios
Low-voltage switch cabinets for power plant and biomass power plant plant power supply, intelligent protection and monitoring of induced fans, supply fans, condensate pumps, and circulating water pumps.
Low-voltage pump rooms, air compressor stations, belt conveyor motor centralized measurement and control systems in petroleum, chemical, and coal chemical plants.
Intelligent motor management transformation projects for metallurgy, cement, and water treatment industries using MNS low-voltage drawer cabinets.
Energy monitoring and motor protection for HVAC pumps and fans in commercial buildings and large factories.
