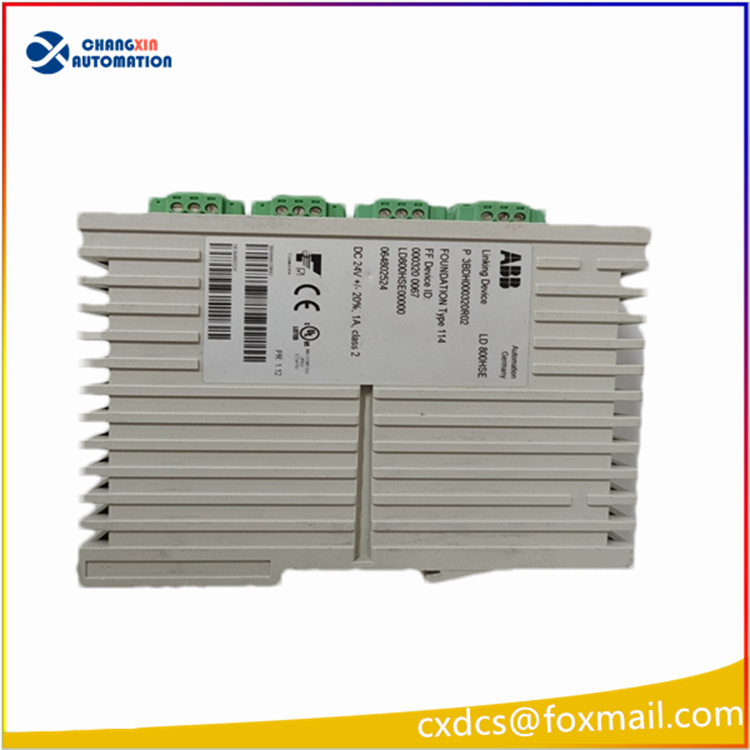

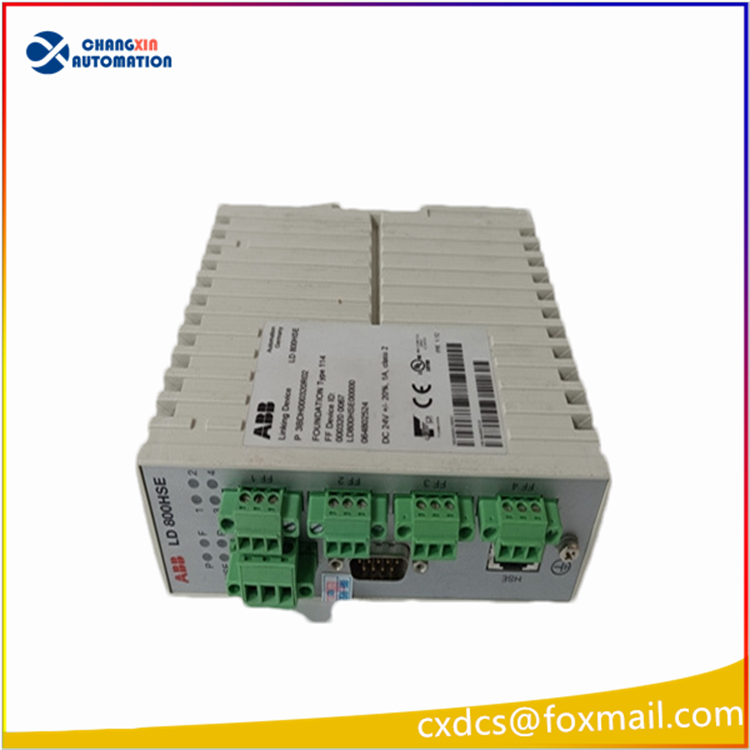

ABB LD800HSE 3BDH000320R02 Fieldbus module

The ABB LD800HSE 3BDH000320R02 is a fieldbus connection device produced by ABB. It is mainly used to connect the HSE high-speed Ethernet subnet and the H1 fieldbus in the Foundation Fieldbus (FF) system. Here is a detailed introduction about this device:
I. Main Functions
Protocol Conversion and Data Interchange: As a gateway between HSE high-speed Ethernet and H1 fieldbus, it realizes the conversion between the two bus protocols, ensuring smooth data transmission between different buses.
Transparent Configuration: Allows the upper system to directly access the function blocks of H1 devices without the need for additional mapping configuration, simplifying the system configuration process.
Client/Server Access: Supports client/server access mode, facilitating remote monitoring and management of H1 devices by the upper system.
Publish/Subscribe Mode: Supports publish/subscribe mode to achieve data exchange between H1 devices and between H1 devices and the HSE subnet.
Data Redistribution: Supports HSE↔H1, H1↔H1 data redistribution, with a maximum of 4 subcycles, which helps reduce network load and improve system performance.

Technical Features
Multi-link Access: Supports 4 independent H1 master stations (LAS), with a maximum of 31 devices per segment, and a total bus length of ≤ 1900m (in conjunction with standard cables), meeting the access requirements for large-scale on-site equipment.
High Reliability: Hardware redundant links + automatic fault detection, supports online firmware updates, and has low maintenance costs. At the same time, the equipment supports H1 link redundancy and dual-machine hot standby, ensuring that the system can quickly switch in case of failure and guarantee the continuous operation of the system.
Flexible Expansion: Can be combined with power conditioning modules and motherboard components to achieve single-channel/redundant configuration, suitable for different working conditions.
Easy Installation and Maintenance: Installed using 35mm DIN rails, in compliance with EN 50022 standards, with a protection level of IP20. The equipment is small in size, lightweight, and easy to install and maintain.
III. Application Scenarios
Power Plant DCS System: Used for the access of on-site instruments (such as pressure transmitters, temperature sensors, actuators) in boilers, steam turbines, and auxiliary networks, to achieve centralized monitoring and management of on-site equipment.

Petrochemical/Chemical Plants:

Used for networking of Foundation Fieldbus devices in heating furnaces, reaction vessels, and storage tank areas, to improve the automation level of the production process.
Pharmaceutical/Food Industry: Achieves secure communication between on-site equipment and upper-level monitoring in clean areas, ensuring hygiene and safety in the production process.
Water Treatment/Metallurgy: Used for interconnection and centralized data management of long-distance field buses, to improve production efficiency and management level.
