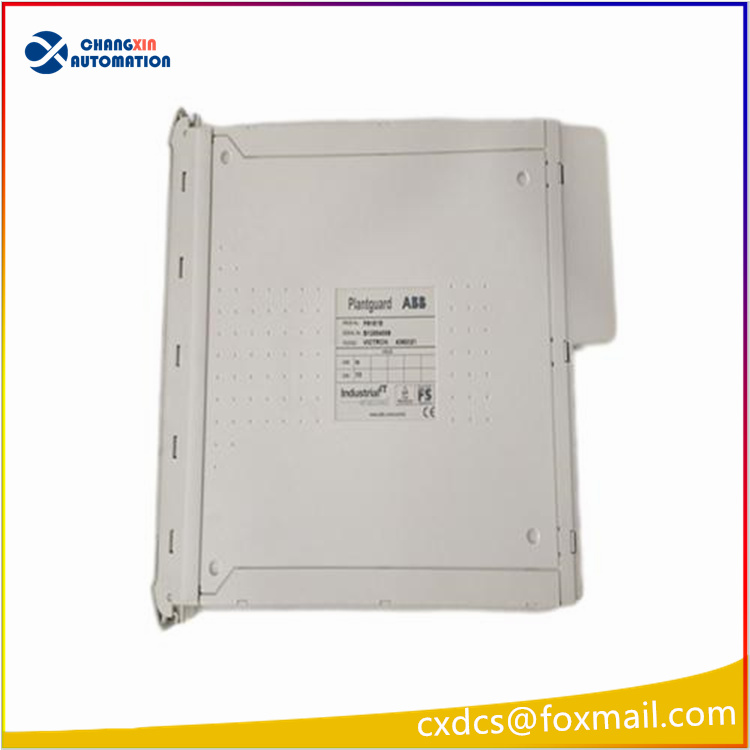

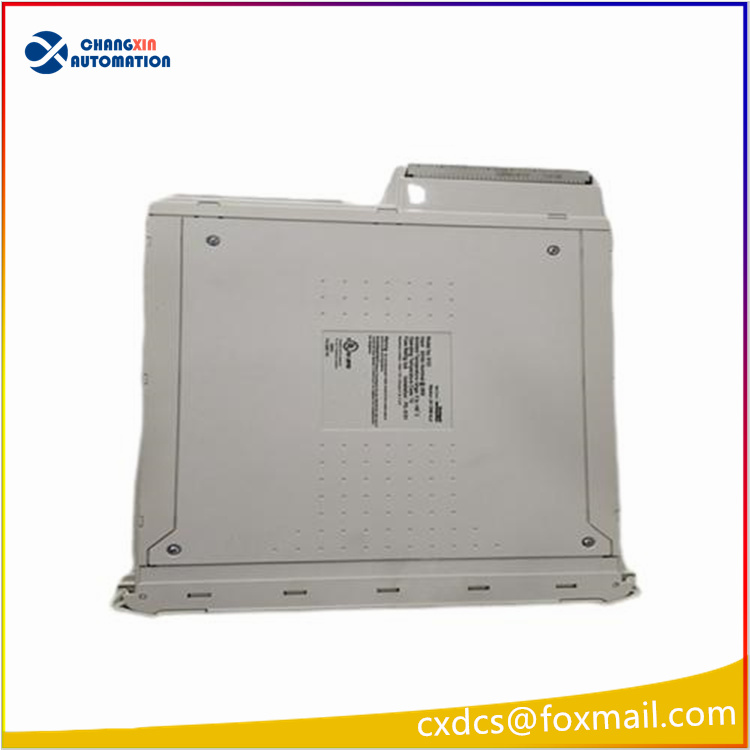

ABB P8151B Safety Communication Processor Module

ABB P8151B Safety Communication Processor Module
I. Product Positioning
P8151B belongs to the ABB Plantguard (formerly ICS Triplex ConTRAC) high-security TMR (Triple Modular Redundancy) system. It is the core unit communication processor of the entire safety control system, targeting SIL3 safety-critical scenarios, and features a triple-module redundant fault-tolerant architecture.

Core Identity
System： Plantguard Safety PLC Rack Main Communication / Computing Unit
Safety Level: IEC 61508 SIL 3, TMR Triple Voting Fault Tolerance
Product Status： The original factory has discontinued production. The market is circulating with brand-new inventory and refurbished units.

Core Architecture and Advantages
TMR Triple Redundant Computing
Three independent CPUs operate in parallel， with hardware real-time voting output； single-point channel failure automatically isolates， ensuring no system downtime or erroneous actions， meeting the safety protection requirements of petrochemical and power industries with zero interruption.
Hot Swap Maintenance
Support for on-rack live plug-and-play replacement， without interrupting ESD and unit protection safety circuits during maintenance.
Built-in Full Channel Self-Diagnosis
Real-time inspection of power supply， processor， bus， and communication link， fault codes and operation logs can be read by the upper computer， quickly locating disconnections， protocol mismatches， and hardware damage issues.
Network Redundancy Capability
Dual Ethernet hardware links， with the primary link failing， the backup link switching within milliseconds to ensure uninterrupted transmission of safety data.

Key Hardware Electrical Parameters Table
Project Specification Parameters
Power Supply DC 24V ±10%, built-in overcurrent / overvoltage protection, supports dual redundant power supply input
Processor Industrial-grade high-performance multi-core processing unit, independent three-channel computing cores
Memory Standard 512MB RAM + onboard Flash (stores programs, configurations, fault logs)
Network Port 2 channels of 10/100Mbps adaptive RJ45 Ethernet (redundant communication)
Serial Port RS232/RS485 multiplexing terminals, used for local debugging, Modbus RTU connection
Protection Grade IP20 (rack-mounted installation inside the control cabinet)
Operating Temperature -20℃ ~ +60℃; extreme conditions can briefly reach -40℃ ~ +70℃
Humidity 5%–95% without condensation, PCB with three protection coatings to resist dust, moisture, and corrosive gases
Installation Standard rack slot installation, compatible with Plantguard system backplane bus
Four. Supported Communication Protocols
Ethernet: Modbus TCP, Profinet IO, EtherNet/IP, Plantguard internal safety bus
Serial Port: Modbus RTU, debugging terminal protocol
Backplane: Exclusive TMR safety high-speed internal bus, connects with the same series I/O modules (P8100, P8110, etc.)
Five. Typical Application Industry Scenarios
Oil and Gas Petrochemical: ESD emergency shutdown of refining and chemical plants, flare protection, compressor interlock
Power Thermal Power / Nuclear Power: Boiler FSSS, turbine trip protection, auxiliary machine safety interlock
Chemical Fine Chemicals: Reactor high-pressure over-temperature and over-pressure safety circuit
Paper, Metallurgy, Pharmaceutical: Explosion-proof workshop key unit safety shutdown system
