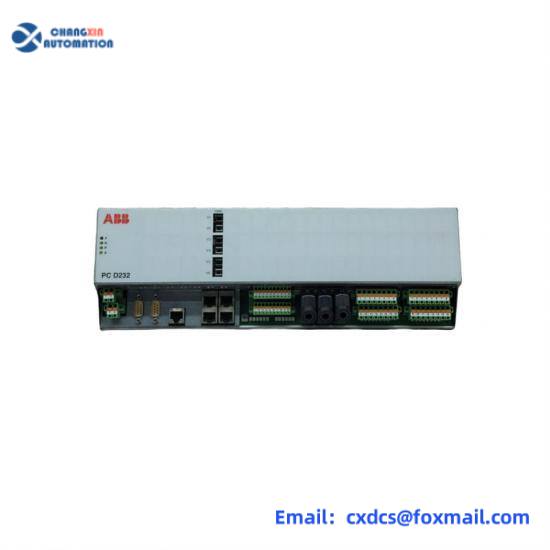

The ABB PCD232A101 3BHE022293R0101 is a high-performance excitation control unit module, belonging to the PCD series under the ABB AC800PEC control platform. The following is an introduction to this module:
I. Main Functions
Excitation Current Control:
Precisely control the excitation current to regulate the output voltage and current of the generator, ensuring that the generator can provide stable and high-quality power under various operating conditions.
According to different operating requirements, automatically adjust the excitation current to optimize the operation efficiency of the generator. For example, when the load changes, automatically adjust the excitation current to maintain a constant output voltage.
Protection Functions:
Equipped with various protection functions, such as overcurrent protection, overvoltage protection, and undervoltage protection, which help prevent the generator from being damaged in abnormal conditions.
Communication Function:
Possess the communication capability with the superior monitoring system or other control devices, which can transmit the operating status, fault information, etc. of the generator in real time, facilitating remote monitoring and management by maintenance personnel.
Key Features
- High-Reliability Design – Constructed with industrial-grade materials for 24/7 operation in harsh environments
- Space-Efficient Packaging – Compact 120x90x35mm form factor enables installation in constrained control cabinets
- Universal Power Compatibility – Operates seamlessly at 220V AC with 50/60Hz frequency tolerance
- Seamless System Integration – Backward compatible with existing ABB control architectures
- Thermal Stability – Engineered for optimal heat dissipation in industrial operating conditions
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand/Model | ABB PCD232A101 (3BHE022293R0101) |
| Power Requirements | 220V AC, 50/60Hz |
| Physical Dimensions | 120mm (W) × 90mm (H) × 35mm (D) |
| Weight | 0.5kg |
Application Fields
This control module excels in complex industrial applications including:
- Manufacturing process control systems
- Power plant automation and monitoring
- Infrastructure management systems
- Heavy industrial machinery control cabinets
- Building management system integrations
