I. Product Description

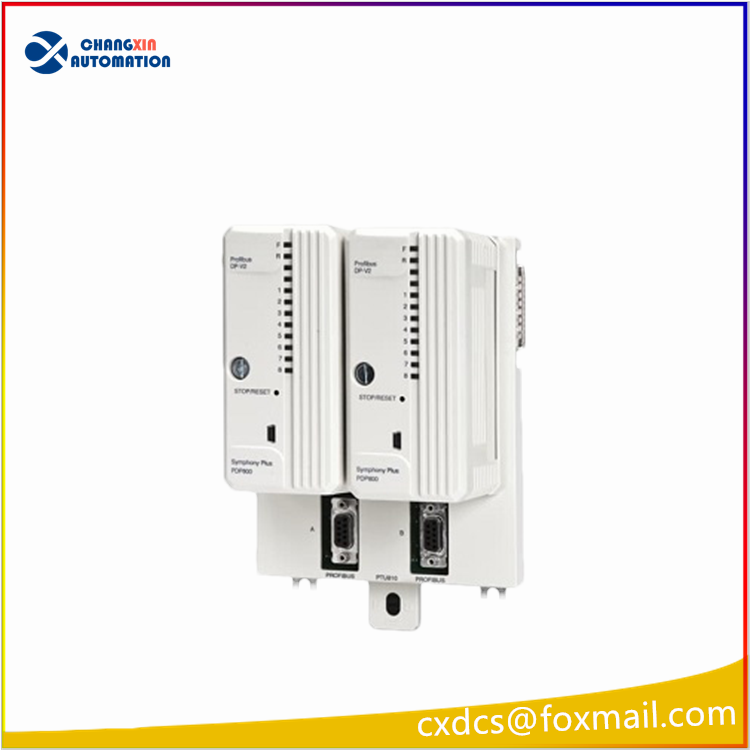

The PDP800 is a dedicated Profibus DP master station communication module of the ABB Symphony Plus (S+) SD series. It is also compatible with the expansion bus of the AC800M controller. It is a key communication component for connecting field Profibus slave devices to DCS/PLC.
Product Type: Profibus DP Master Station Interface Module
Installation Method: Installed in the controller CEX expansion bus, supports DIN rail installation
Original Application Platform: Symphony Plus, AC800M, S800 I/O System, widely used in power plants, chemical plants, water treatment, turbine control, etc.

Core Communication Specifications
Protocol Support
Full versions of PROFIBUS DP V0, V1, V2; can be connected to PROFIBUS PA safe instruments through DP/PA coupler
DP V2 supports 1ms high-precision event timestamp, can accurately record SOE sequential events, facilitating fault traceability of interlocks
Communication Rate: Adaptive from 9.6 kbps to 12 Mbps
Transmission Medium and Distance
Twisted-pair electrical bus: Maximum transmission distance 1200m
Optical fiber bus: The farthest distance can reach 15km, suitable for long-distance distributed I/O networking in the factory
Slave Station Capacity: The maximum number of Profibus DP slaves that a single module can connect is 125
External Interfaces: DB9 female Profibus communication port; module backplane connects to the controller CEX bus

Electrical and Environmental Parameters Table
Project Parameters
Power Supply 24VDC ±10%, powered by the system backplane
Power Consumption Running ≤ 5W, Standby ≤ 2W
Operating Temperature -20℃ ~ +60℃, humidity 5%~95% without condensation
Storage and Transportation Temperature -40℃ ~ +85℃
Anti-Vibration Can withstand 5g vibration, suitable for strict working conditions in power plants and steel mills
MTBF > 150,000 hours, suitable for 7×24-hour continuous operation
Dimensions 244mm×74mm×170mm, weight approximately 0.18kg
Maintenance Features Support for hot-swappable operation while powered on, redundant configuration can be replaced online without interrupting control

Equipment Compatibility Range
ABB’s own equipment: S800 remote I/O module, TP800 turbine protection card, VP800 valve position control card, AS800 automatic synchronization module, MCM800 status monitoring card
Third-party equipment: frequency converters, soft starters, intelligent transmitters, electric actuators, MCC motor control center, relay protection IED instrument, flow meters and all field devices that support Profibus DP

 Panel Indicator Lights and Diagnostic Function
Built-in operation, bus status, fault LED indicators, allowing for intuitive judgment of bus communication status
Built-in hardware self-diagnosis: real-time monitoring of bus messages, slave station online status, module power supply, communication quality
Support for online configuration of S+ Engineering software, parameter download, fault diagnosis, message monitoring
Can upload communication faults, slave station disconnection events to the upper-level operation station for alarm

Typical Application Scenarios
Thermal Power Generation: Turbine / Boiler auxiliary control, turbine protection speed regulation system, connected with VP800/TP800 and other dedicated cards
Petroleum Refining: Long-distance device S800 remote IO networking, connected with on-site intelligent instruments and frequency converters
Water Treatment / Water Affairs: Distributed I/O for pump stations, pump group frequency control communication
Metallurgy / Papermaking: Large number of Profibus field devices centralized connection to DCS
Renovation of Old Systems: Upgrade of old Symphony system to expand Profibus field bus capability
