ABB PHARPS32200000 F8-G2B9B3B6 Power Module

Product Description

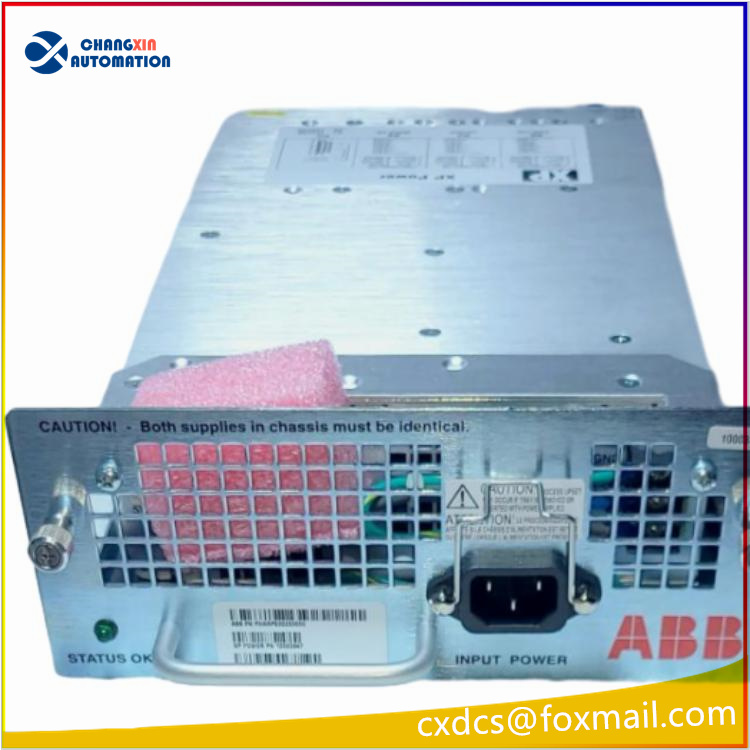

Model: PHARPS32200000, Configuration Code: F8-G2B9B3B6. It is an ABB Symphony Harmony (Bailey INFI90) MPS III modular power supply module, dedicated power unit for Bailey DCS rack. This hot-swappable rack-mount module supplies multiple isolated DC outputs and supports redundant parallel operation. Equipped with comprehensive hardware protection and status LED indicators, it can be replaced online without system shutdown. It delivers stable multi-channel DC power for DCS controllers, I/O cards and communication boards to guarantee continuous operation of critical process control systems.

Technical Specifications

• Model: PHARPS32200000
• Configuration Code: F8-G2B9B3B6
• Type: DCS Modular Power Supply Module (MPS III)
• Compatible System: ABB Symphony Harmony / Bailey INFI90 / Net90 DCS
• AC Input: 175~264V AC
• Multi DC Output: 5V, ±15V, 24V multiple isolated DC outputs
• Isolation Voltage: 4500V AC between input and output
• Protection: Overvoltage, undervoltage, overload, short-circuit, overtemperature
• Mounting: Rack plug-in, hot-swappable
• Redundancy: Support dual power redundant parallel
• Operating Temperature: 0℃ ~ +60℃
• Protection Class: IP20 (for cabinet installation)
• Dimension: 127 × 508 × 254 mm
• Weight: Approx. 1kg
• Features: Status LED, fault diagnosis, aluminum alloy housing

Application

Used for large industrial DCS systems requiring high-reliability uninterrupted control:

1. Boiler, turbine and water treatment control systems in thermal power plants
2. Process control for oil, gas and petrochemical plants
3. Large continuous production lines for metallurgy, paper-making and pharmaceutical industries
4. Automation systems for oil & gas pipelines and pumping stations
5. Critical process control cabinets for cement and coal chemical industry Function: Supply stable multi-channel DC power to DCS rack controllers and I/O cards. Redundant design eliminates single-point power failure risk. Hot-swap maintenance avoids plant shutdown and improves overall system availability.

Related Series Models

PHARPS32200000 F8-G2B9B3B6 PHARPS32200000 F8-G2B9B3B1 PHARPS32200000 F8-G2B9B3B2 PHARPS32200000 F8-G2B9B3B3 PHARPS32200000 F8-G2B9B3B4 PHARPS32200000 F8-G2B9B3B5 PHARPS32200000 F8-G2B9B3B7
