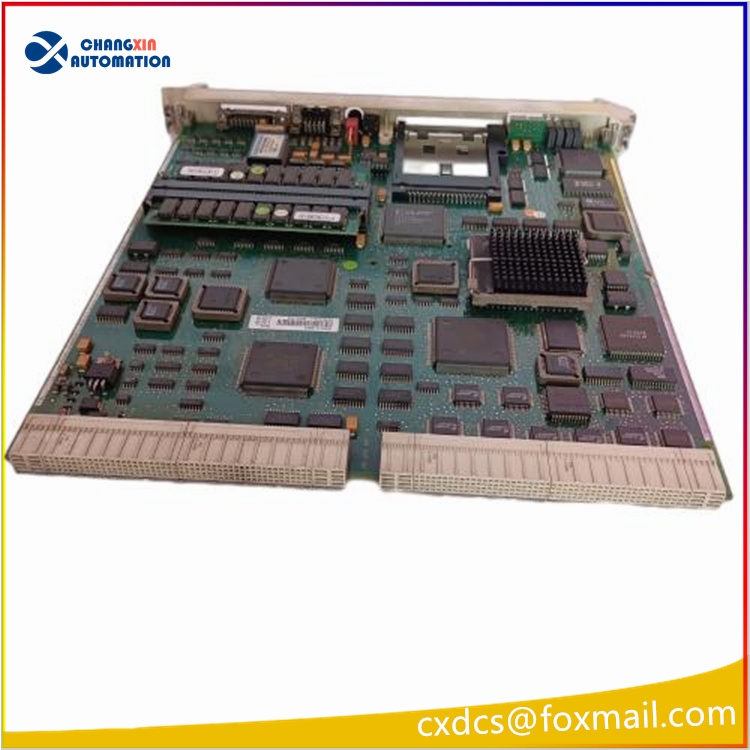

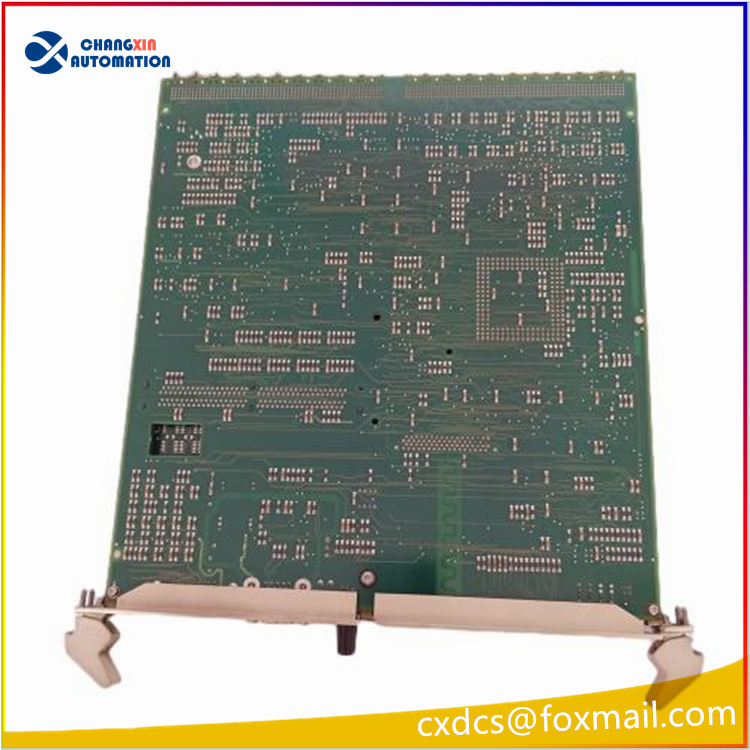

ABB PM511V08 (Order Number: 3BSE011180R1) Main Processor CPU Module
I. Basic Product Information
Full Model: PM511V08
ABB Official Part Number: 3BSE011180R1 (The global unique purchase number)
Product Category: Advant AC400 Series DCS Main Processor CPU Module
Compatible Systems: ABB Advant OCS / Advant Master / Classic Distributed Control System AC450 (Power Plant and Hydropower Plant Unit DCS, Excitation System Back-end Main Control Core Card)
Interpretation of Model Codes
PM511: Code for Processor Series
V08: Hardware Version 08 (Fixed firmware, memory configuration-specific version. Different versions cannot be directly installed on the machine)
3BSE011180R1: Unique Order and Storage Code for ABB Original Equipment
Electrical Parameters of Core Hardware Table
Parameter item Detailed specification
Main control CPU Motorola 68040 industrial processor, with a main frequency of 25 MHz
Memory 8MB ECC error-correcting dynamic RAM (hardware data verification to prevent industrial control data corruption)
Storage expansion Pre-installed PCMCIA slot, allowing for the insertion of flash memory cards for downloading programs, backing up projects, and firmware upgrades
Power supply 24VDC backplane direct current power supply
Overall power consumption ≈6W
Front panel interfaces RS232 debugging serial port, VGA debugging port, parallel printing port, status digital tube + operation/fault indicator lights
Communication bus Supports Profibus DP, ABB internal system bus, Modbus RTU, Ethernet interconnection protocol
Installation form Standard CPCI European rack plug-in card, cabinet backplane slot installation
Net weight Approximately 0.76kg
Overall dimensions 118×35×111mm
Core Functionality (Power Plant DCS / Excitation System Scenario)
The entire system’s computing core
Responsible for the full plant process logic operation, unit sequence control, interlock protection, analog quantity regulation operation; excitation system parameters monitoring of generating units, reactive power/voltage regulation data interaction processing.
I/O bus scheduling management
Overall coordination of all AI/DI/AO/DO input/output cards’ data collection and command issuance within the rack.
Upper computer data interaction
Upload temperature, pressure, current, excitation voltage/current and other process data to the central control console, and receive operation instructions from the operator for execution.
Fault diagnosis and event recording
Hardware self-check, circuit fault alarm, SOE event sequence storage, used for fault traceability after tripping.
Redundant operation support
The system can be configured with dual CPU redundancy hot backup, with a single processor failure automatically switching without interruption, ensuring uninterrupted operation of the power plant units.
Environmental Operating Conditions Standards
Operating temperature: -20℃ ~ +60℃ (constant temperature environment of the power plant control room)
Storage temperature: -40℃ ~ +85℃
Humidity: 5%~95% RH, no condensation
Corrosion grade: G3 industrial corrosion, resistant to strong electromagnetic interference of the power plant and power grid surge impact
Protection: IP20 (limited to use inside the control cabinet only)
Main Application Scenarios
Complete DCS distributed control system main control unit for power plant generating units, hydropower station
