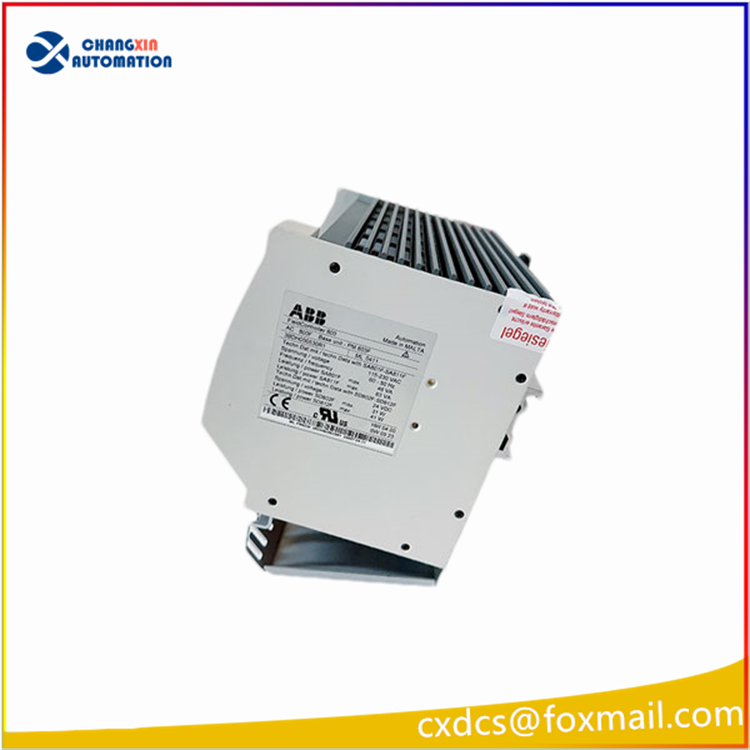

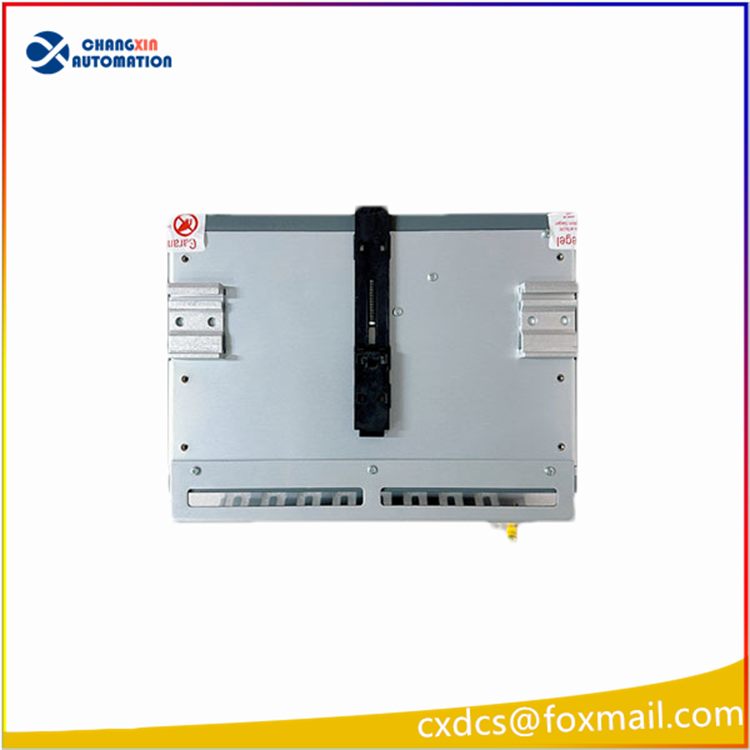

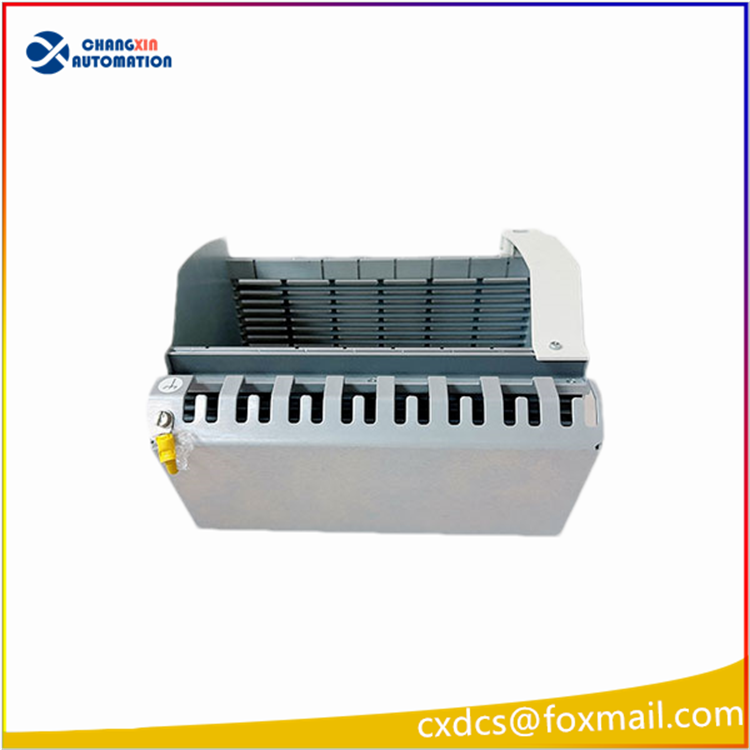

The ABB PM803F 3BDH000530R1 is a high-performance controller module, mainly used in industrial automation control and monitoring systems. The following is an introduction to this module:
I. Main Functions
Control and Monitoring: As the core component of the AC 800F Freelance control system, the PM803F is responsible for executing control programs, processing data, and communicating with on-site equipment to achieve monitoring and control of the production process.
Data Processing: It has a powerful data processing capability, capable of handling complex control algorithms and logic, and enabling high-speed and precise control operations.
Communication Function: It supports multiple communication interfaces, including Ethernet, serial interfaces, etc., facilitating data exchange and integration with other devices and systems.
Redundant Configuration: It supports redundant configuration to enhance the reliability and availability of the system.
Technical Features
High-performance processor: Utilizes Intel® 32-bit RISC superscalar processor with a clock speed up to 150 MIPS, ensuring rapid data processing capabilities.
Large-capacity storage: Equipped with 16MB synchronous dynamic read/write memory (SDRAM) and a battery backup to ensure data security and reliability.
Modular design: Adopting a modular design, modules can be added or removed as needed, facilitating expansion and maintenance.
Multiple fieldbus interfaces: Supports various fieldbus interfaces, such as PROFIBUS-DPV1, FOUNDATION Fieldbus HSE, Modbus, etc., to meet different application requirements.
High reliability: Utilizing advanced control technology and high-quality components to ensure stable and reliable product operation, suitable for long-term stable operation in harsh industrial environment conditions.
Application scenario
Process control: Control of production processes in industries such as chemicals, petroleum, and natural gas.
Discrete control: Control of production lines in industries such as mechanical manufacturing and automotive manufacturing.
Motion control: Motion control of equipment such as CNC machines and robots.
Data acquisition and monitoring: Real-time data acquisition and monitoring in fields such as energy management and environmental monitoring.
Specifications and Parameters
CPU: Intel® 32-bit RISC superscalar processor
Clock speed: Up to 150 MIPS
Memory: 16MB synchronous dynamic read-write memory (SDRAM), with battery backup
I/O scan cycle: Configurable, depending on the function of the fieldbus module
Time required to process 1000 instructions: Binary and 16-bit arithmetic instructions less than 1.0 ms, fixed-point arithmetic instructions less than 2.0 ms
Size: 239 mm x 202 mm x 164 mm
Weight: Maximum 1.6 kg (maximum 5 kg when fully assembled)
