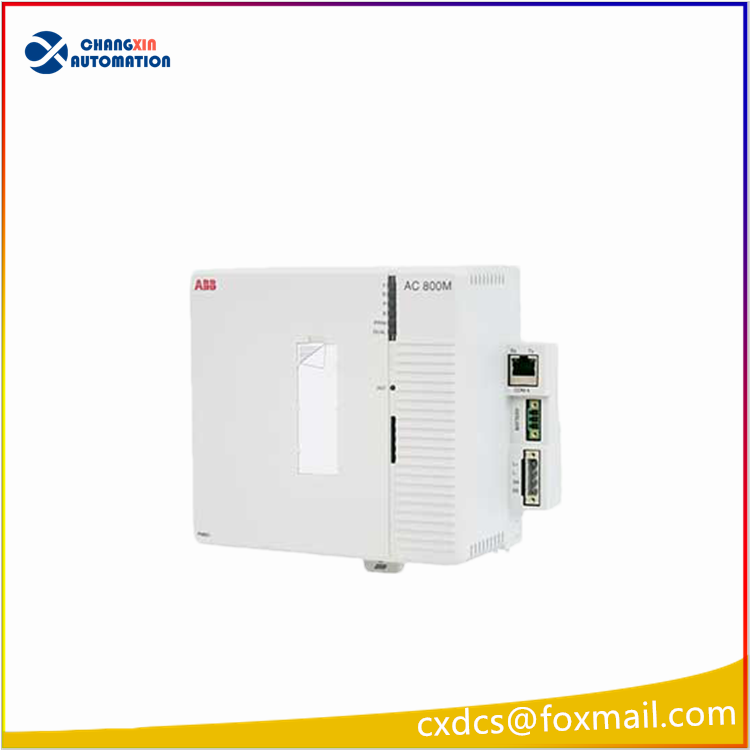

The ABB PM891K01 3BSE053241R1 is a high-performance redundant central processing unit, belonging to the ABB AC800M control system series. It is widely used in the field of industrial automation, especially in industries such as power, petrochemicals, and metallurgy where high system reliability is required.
Core Features
High Performance and Reliability
Processor Architecture: Equipped with an industrial-grade PowerPC multi-core processor with a clock speed of up to 450 MHz, it supports rapid processing of complex control algorithms and meets real-time requirements (millisecond-level cycle tasks).
Memory Configuration: Features 256MB RAM (expandable to 8MB in some models), meeting the demands for large-capacity data storage and real-time computing.
Safety Certification: Complies with IEC 61508 SIL 2/3 standards, suitable for safety-critical applications (such as emergency shutdown systems ESD).
Redundancy Design
CPU Redundancy: Supports dual-processor redundancy configuration (e.g., in combination with PM864AK01), with a master-to-standby switch time of ≤10ms, ensuring seamless system switching in case of hardware failure.
Bus Redundancy: Enhances fault tolerance through CEX bus redundancy design (e.g., BC810 interconnection unit), preventing system interruption due to single-point failures.

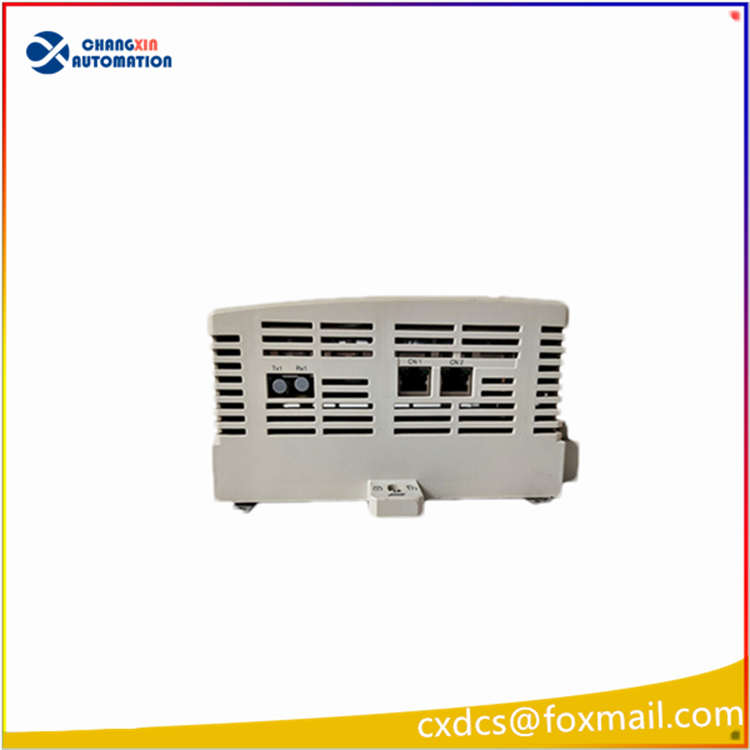

Network Redundancy: Equipped with 2 RJ45 redundant Ethernet ports (CN1, CN2), supporting TCP/IP, Modbus TCP, and other protocols, ensuring reliable network communication.
Expandability and Communication Capabilities
I/O Expansion: Connects multiple I/O modules (such as the S800 series) via the CEX expansion bus, with each module supporting up to 7 I/O clusters and each cluster up to 12 units, allowing flexible expansion of I/O points.
Communication Protocols:
Supports mainstream industrial protocols such as Profibus, Modbus, EtherNet/IP, and OPC UA, and is compatible with third-party devices.
Serial Communication: Optional RS232/RS485 serial communication modules are available, compatible with traditional device connections.
Environmental Adaptability
Operating Temperature: 0°C to 60°C (some models support -40°C to +70°C), suitable for extreme industrial environments.
Protection Rating: IP20 (requires use with a protective cabinet), meeting the requirements of industrial control cabinet environments.
Diagnosis and Maintenance
Fault Diagnosis: Integrated LED indicators, INIT button, and safety digital interfaces support real-time monitoring of communication status, faults, and abnormal conditions.
Remote Maintenance: Supports remote monitoring and maintenance through an integrated web server, facilitating user management and troubleshooting of the system.
Programming and Configuration: Utilizes ABB Control Builder M software, supporting five programming languages under the IEC 61131-3 standard (such as ladder diagrams, function block diagrams, etc.), providing offline simulation and debugging functions to reduce on-site commissioning time.
Application fields
The ABB PM891K01 3BSE053241R1 is widely applied in industrial automation fields where system reliability is highly demanded, including:
Process control: Precise control of parameters such as temperature, pressure, and flow in industries like chemical, petroleum, and natural gas.
Electricity industry: Automation monitoring of power plants and substations, achieving automated management and optimized operation of the power system.
Manufacturing: Control of production lines in industries such as automotive manufacturing and mechanical processing, improving production efficiency and quality, and reducing labor costs.
Infrastructure projects: Infrastructure projects such as water treatment and sewage treatment, implementing remote monitoring and automated control of equipment.
Technical Specifications
Processor: Multi-core architecture, with a main frequency of 450 MHz
Memory: 256MB RAM (expandable to 8MB)
Ethernet ports: 2 redundant RJ45 ports
Serial port: 1 isolated RJ45 serial port (COM4)
Size and weight: Approximately 280mm × 245mm × 105mm, 2.1kg
Operating temperature: 0°C ~ 60°C (some models support -40°C ~ +70°C)
Relative humidity: 15% ~ 85% RH (no condensation)
Protection level: IP20 (requires use with protective cabinet)
