I. Basic Material Information

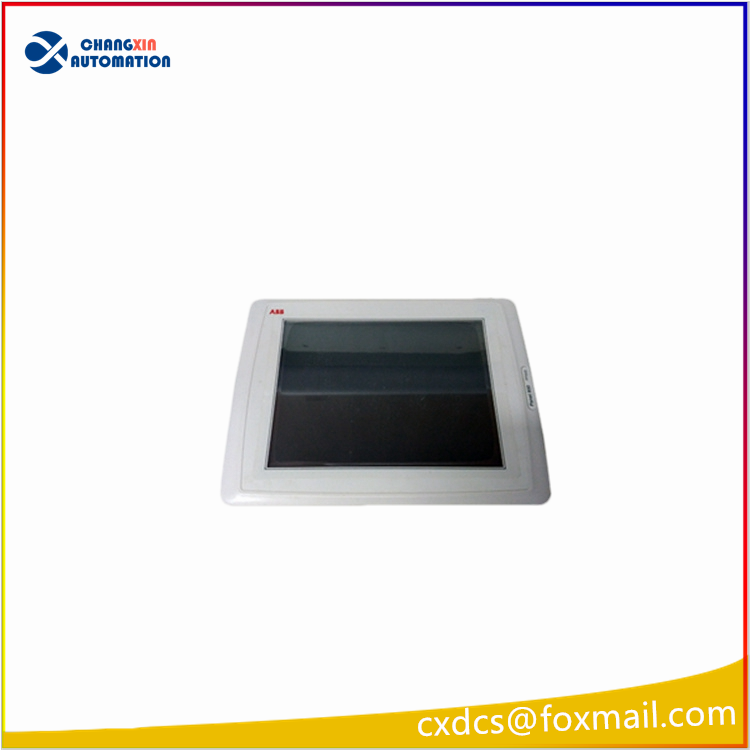

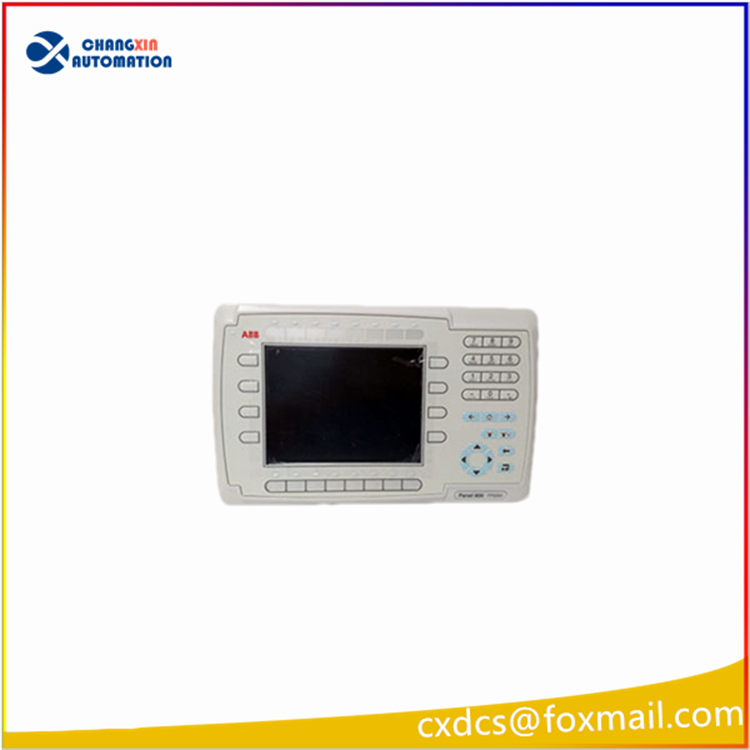

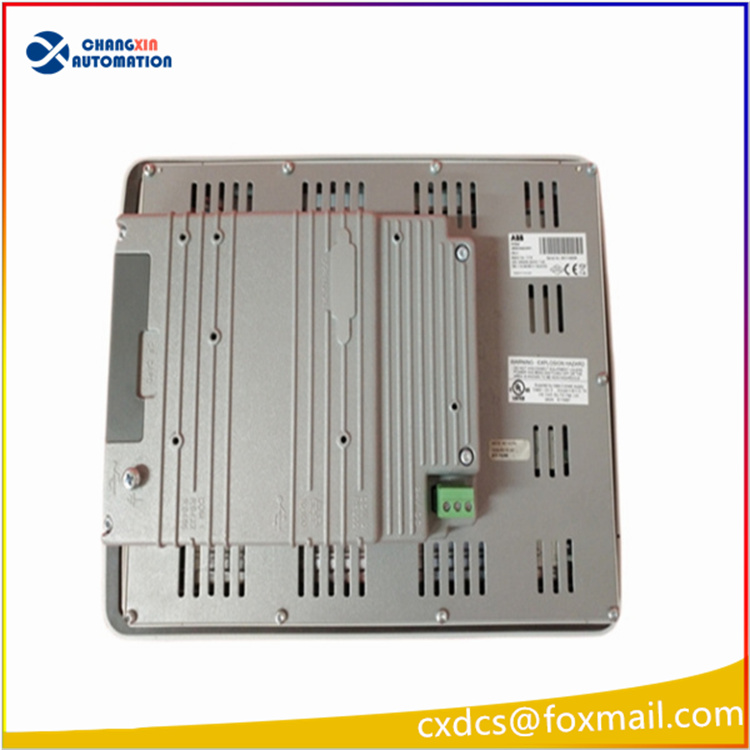

Model: PP845
ABB Order Code: 3BSE042235R1
Screen Specifications: 10.4-inch TFT color resistive touch screen, resolution 800×600
Operating System: Windows Embedded CE 7.0
Memory Configuration: 512MB RAM + 4GB Flash Storage
Installation Method: Embedded installation on control cabinet panel
Front Panel Protection: IP65 (waterproof and dustproof, suitable for on-site operation console); Back Panel Protection IP20
Power Supply: DC24V (19.2~28.8V), Total Machine Power Consumption ≤ 12W
Operating Temperature: -10℃ ~ +50℃
Hardware Interface Configuration
1. 10/100M Adaptive Ethernet RJ45: For communication with AC800M controller and program download
1. RS232/RS485 Serial Ports: Supports Modbus RTU, can be connected to third-party instruments and frequency converters
USB2.0 Interface: For copying HMI program, firmware upgrade, and historical data export
Standard system status operation indicator light, fault self-check alarm prompt
Core Functions
Process Picture Monitoring: Real-time display of temperature, pressure, flow, valve status, motor operating parameters
Remote Operation Control: Equipment start/stop, parameter setting, manual valve operation, loop switching
Alarm Management: Real-time alarm pop-up window, historical fault records, alarm classification storage and query
Trend Curve: Historical trend trace of process parameters such as temperature and pressure
User Permission Grading: Multi-level password permissions for administrators and operators to prevent accidental operation
Data Archiving, Report Export, Local Storage via USB Drive
IV. Compatible Systems and Communication Protocols
Mainly Compatible: ABB AC800M PLC, 800xA DCS Control System
Supported Protocols: ABB OPC, Modbus TCP/RTU, CANopen, PROFIBUS DP (optional expansion)
Configuration Software: Developed using Control Builder M + Panel Builder 800 for configuration screens
Typical Application Scenarios
ABB 800xA DCS Control System local operation station for thermal power, chemical industry, papermaking, metallurgy
On-site process monitoring operation console for sewage treatment, waste heat power generation, oil and gas installations
Local human-machine operation terminal for production lines, complete equipment sets
