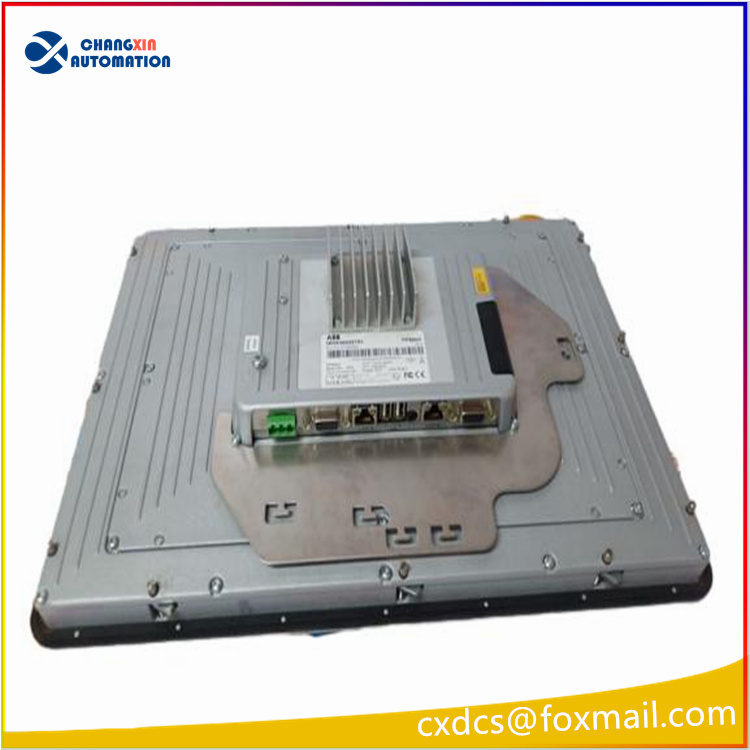

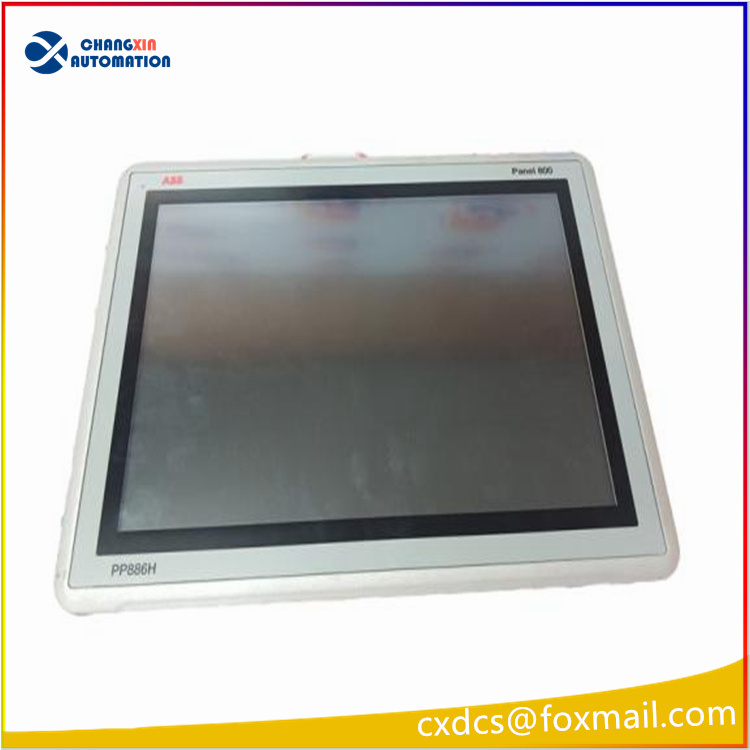

ABB PP886H 3BSE069297R1 is a high-performance industrial touchscreen, belonging to the Human-Machine Interface (HMI) product category. It is widely used in the field of automation control. The following is a detailed introduction of this product:
I. Product Overview
Brand and Model: ABB PP886H 3BSE069297R1
Product Type: Industrial Touch Screen (Human-Machine Interface HMI)
Application Fields: Industrial Automation, Building Automation, Power System, Transportation System, Medical Equipment, Data Center Management, etc.
Main Features
Durable and Reliable:
The product features a die-cast aluminum housing with powder coating on the surface, providing excellent shock resistance and corrosion resistance.
The front panel design can withstand moisture, dust, and harsh environments, ensuring stable operation in various industrial conditions.
Wide Temperature Operating Range:
The operating temperature range is wide, from -30°C to +70°C, adapting to extreme temperature environments.
The relative humidity range is 5% to 95% (non-condensing), ensuring normal operation in high humidity conditions.
High Resolution Display:
Equipped with a high-resolution TFT LCD display, providing clear and bright visual effects.
The brightness can be adjusted, with the minimum being 0.5 cd/m², suitable for different lighting conditions.
Touch Technology:
Uses resistive touch technology, supporting glove operation, meeting the special requirements of industrial sites.
Multiple Interface Options:
Provides various interfaces such as Ethernet, USB, serial ports, etc., facilitating connection with various controllers and devices.
Based on the .NET framework, it supports connection with multiple brand controllers, enabling flexible system integration.
Easy Development and Maintenance:
Equipped with Panel Builder 800 engineering tools, providing a familiar and user-friendly Microsoft Windows environment, supporting multiple languages, facilitating rapid and efficient engineering development.
Provides comprehensive templates and libraries, covering various possible processes, simplifying the application development process.
III. Product Specifications
Display Size: 10.4 inches or 15.4 inches (varies by model or version)
Display Resolution: 1280 x 800 (16:10)
Processor: ARM9 (800 MHz or 1 GHz, varies by model or version)
Memory: Main memory 1GB or 2GB, application memory 1.5GB or 3.5GB (SSD)
Interfaces:
Ethernet: 1 x 10/100 Base-T or 2 x 10/100 Base-T (4-pin M12)
USB: 2 x USB 2.0, maximum 500mA
Serial Ports: 1 x RS232, 1 x RS422/485 or 1 x RS232, 1 x RS422/RS485, 1 x RS485
Protection Grade: IP66 (front panel)/ IP20 or IP66 (rear panel), compliant with NEMA 4X/12 and UL Type 4X/12 standards.
Power Supply: 24 VDC (18 – 32 VDC)
Power Consumption: 18W to 32W (varies by model or version)
IV. Application Scenarios
Industrial Automation: Used in manufacturing, chemical, petrochemical industries, etc., to create intuitive control interfaces for monitoring and operating production processes.
Building Automation: Controls building automation systems, including air conditioning, lighting, security systems, etc.
Power System:
Monitors and controls power plants, substations, and power grid equipment.
Transportation System: Used for traffic signal control, intelligent transportation systems, etc., providing intuitive interactive interfaces.
Medical Equipment: Applied to the operation interfaces of medical equipment, such as medical diagnostic equipment and surgical equipment.
Data Center Management: Used for monitoring and managing data center equipment, providing visual control of servers and network devices.
