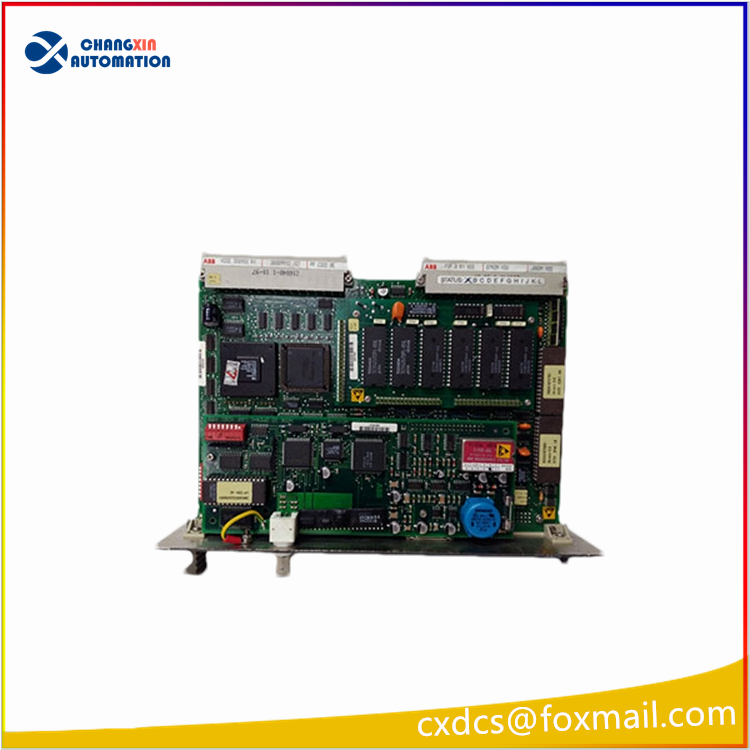

The ABB PPC322BE01 HIEE300900R0001 is a high-performance industrial automation control module, often referred to as a processor unit. It belongs to ABB’s PLC/DCS series and is widely used in industrial automation systems as the core control component.
Core features
High-performance processor
Utilizing the PowerPC architecture (such as MPC603E 166 MHz), it offers powerful real-time data processing capabilities, supports complex control algorithms and high-speed computations.
Memory configuration: 32 MB DDR3 RAM + 8 MB flash memory, meeting the requirements for large-scale program storage and fast data access.
Modular design
Compact design (dimensions: 115×45×25 mm), supporting DIN rail installation, facilitating integration into existing control cabinets.
Metal casing, suitable for harsh industrial environments (vibration, electromagnetic interference, etc.).
Rich interfaces and communication capabilities
Input/output (I/O): Onboard 12DI/8DO/4AI/4AO, supporting various signal types (such as 0–20 mA, ±10 V, PWM output).
Communication interfaces: Dual RS485 + single 10/100M Ethernet, supporting Modbus RTU/TCP, PROFINET protocols, enabling seamless data exchange with SCADA systems or other devices.
Isolation design: Channel-to-channel 3 kV isolation, effectively suppressing common-mode interference from equipment such as frequency converters, enhancing system stability.
High reliability and environmental adaptability
Operating temperature range: -25°C to +60°C, suitable for extreme environments (such as cold storage warehouses, high-temperature workshops).
Power supply voltage: 24 VDC (18–32 V), power consumption ≤15 W, supports fanless operation, reducing maintenance costs.
Protection level: IP20 (front), equipped with short-circuit and overload protection functions.
Typical application scenarios
Process Control
In industries such as chemical engineering, power generation, and metallurgy, closed-loop control of parameters such as temperature, pressure, and flow rate is achieved.
Example: In the control of a reaction vessel, temperature/pressure signals are collected through an AI interface, the feed valve is controlled through a DO interface, and the data is transmitted via Ethernet to the upper-level system for safety interlock. Motion control
Support high-precision motion control such as the seventh axis of robots and servo systems.
Example: Read the zero position signal of the encoder through the DI interface, output ±10 V speed curves through the AO interface, and adjust the PWM duty cycle to 0.1% to achieve a repeat positioning accuracy of ±0.02 mm.
Data acquisition and monitoring (SCADA)
As an edge computing node, it collects on-site data in real time and uploads it to the cloud or control center.
Example: In the film blowing machine, 4 AI channels read pressure signals, 4 AO channels control heaters, DO drives servo cutters, and complete thickness closed-loop control within 100 μs, with the film thickness tolerance ≤ ±2 μm.
