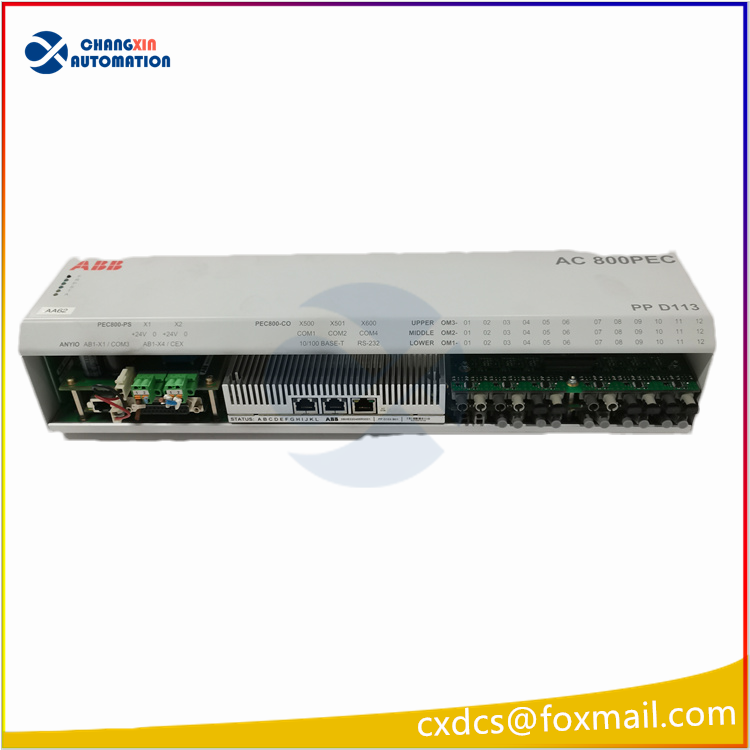

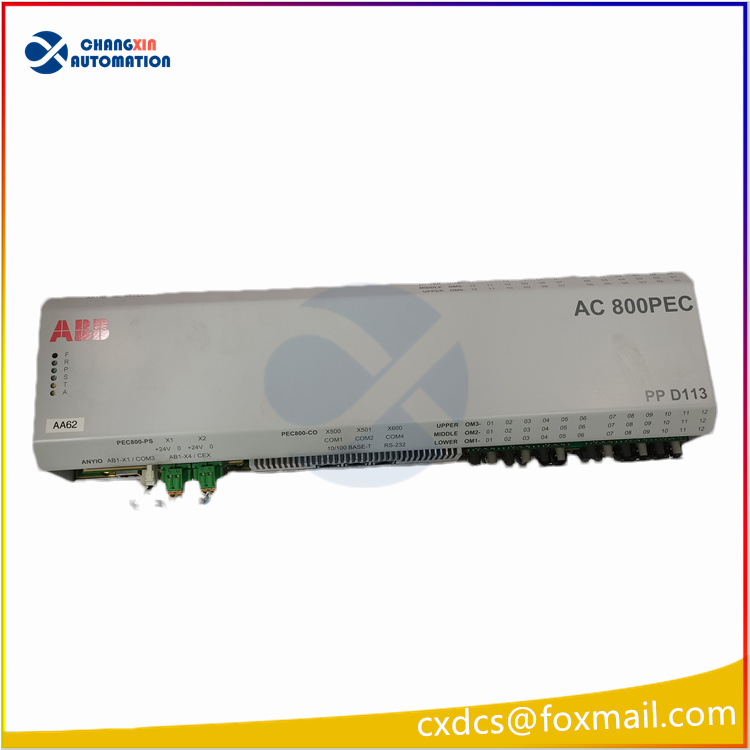

ABB PPD113B01-10-150000 3BHE023784R1023 AC 800PEC High-speed Excitation Module

I. Product Description
This module is a high-performance power electronic dedicated main controller for the ABB AC 800PEC platform. The material code is 3BHE023784R1023, and the hardware model is PP D113 B01-10-150000-01. It integrates a 750MHz RISC main processor + FPGA high-speed computing unit. It is the core computing unit of the generator excitation, high-power transmission, and grid-connected converter system. It is equipped with an internal switching power supply and is suitable for harsh industrial environments with strong electromagnetic interference. It can simultaneously complete microsecond-level power closed-loop control and millisecond-level plant-wide process logic control.

 Key Technical Parameters (Table) Table
Parameter Item Technical Indicator
Power Supply Input of the Whole Machine 85~264V AC, 47~63Hz mains power
Internal Power Supply Output 24VDC, 15A, rated power 360W, power efficiency ≥ 90%
Core Processor 750MHz 32-bit RISC, built-in 64-bit IEEE floating-point operation unit FPU
Built-in Storage 1GB RAM + 4GB Flash program storage
High-speed Control Cycle Minimum 100μs; FPGA underlying tasks can reach 25ns level response
Fiber Optic Expansion Channel Maximum 36 bidirectional CEX Bus optical links, external I/O and power units
Communication Interface Dual Ethernet, AnyBus-S, Profibus, Modbus TCP, dedicated PEC optical fiber bus
Operating Temperature Range Whole machine -25℃ ~ +70℃; short-term tolerance -40℃ low-temperature startup
Protection Grade IP20 (standard control cabinet installation)
Isolation Voltage Signal circuit 2500V electrical isolation,具备 4kV lightning protection， surge protection
Installation Method Standard DIN rail cabinet installation
Whole Machine Dimensions 450mm×145mm×100mm， whole machine weight approximately 2.5kg
Programming Standard Compatible IEC61131-3； supports Matlab/Simulink automatic code generation eero

Product Performance
Dual-core hybrid computing architecture: The CPU is responsible for process logic, human-computer interaction, and upper-level communication; the FPGA independently handles IGBT pulses, current and voltage closed-loop control, and hardware protection. They do not compete for computing power, meeting the requirements for rapid control of power electronics.
Strong anti-electromagnetic interference: All-fiber I/O isolation, suppressing harmonic and pulse interference in large power converters, suitable for power plant and metallurgical strong magnetic field sites.
Integrated design: Controller + high-power switching power supply integrated design, no need for additional external power module, simplifying cabinet wiring.
System compatibility and interoperability: Native connection to ABB 800xA DCS system, achieving unified monitoring and data interaction for the entire plant automation.
Redundancy expansion capability: Supports dual-machine hot standby redundancy, fiber link redundancy, meeting high-reliability scenarios without shutdown for generators, rolling mills, etc.
Fault self-diagnosis: Built-in hardware faults, communication disconnection, power overvoltage/overcurrent, fiber link diagnosis, capable of quickly locating fault points.

Application Domains
Power Energy Industry: Static excitation systems for thermal power / hydropower / wind power generators, SVG static reactive power generators, photovoltaic / wind power grid-connected inverters, large-power rectification equipment in substations.
Metallurgical Heavy Industry: Transmission of large-power rolling mills / cold rolling mills, electric arc furnaces, aluminum electrolysis large-power rectifier cabinets, metallurgical transformation control systems.
Railway Transportation: Large-power locomotives, main control units of urban rail traction converters.
New Energy Storage: Power control of storage converters PCS, battery charging and discharging closed-loop regulation.
Chemical / Paper Industry: Large-power transmission, variable frequency main drive, process large-power power supply control.

Complete models of the same series as PP D113
1. B01 series (integrated built-in power supply, corresponding to 3BHE023784R material section)
PP D113 B01-10-150000-01 3BHE023784R1023 (this model, 15A built-in power supply)
PP D113 B01-25-111000 3BHE023784R2530 (25A high-power power supply version)
PP D113 B01-xx multiple current configuration derivative model
