Product Description

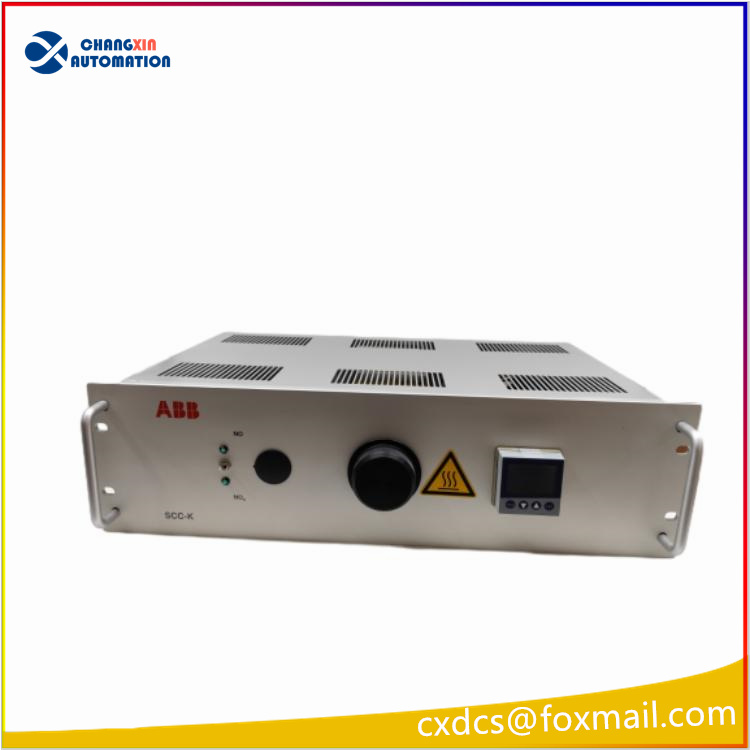

SCC-K (Order No. 23093-4-3KXG801000U0100) is ABB thermal converter for gas analysis system. It adopts heated quartz reaction tube. Through thermal reaction, it converts non-measurable gas components containing carbon, sulfur and chlorine into measurable compounds for gas analyzer, meanwhile removing interfering components in sample gas. This model is 240VAC powered with status signal output interface. Conversion efficiency ≥99%. It features stable temperature control and adaptable sample gas flow. Warm-up time is about 60 min, T90 response time ≤10s. It serves as core pre-treatment spare part for continuous flue / process gas analysis systems.
Data Sheet
| Item | Specification |
|---|---|
| Model | SCC-K |
| Order No. | 23093-4-3KXG801000U0100 |
| Brand | ABB |
| Type | Gas Thermal Converter |
| Power Supply | 240VAC |
| Sample Gas Flow | Nominal 60 L/h, max.120 L/h |
| Max. Sample Gas Inlet Temp | 80℃ (dry dew point) |
| Sample Gas Absolute Pressure | ≤120kPa (1.2bar) |
| Pressure Drop | ≤0.5kPa (5mbar) |
| Conversion Efficiency | ≥99% |
| Warm-up Time | Approx.60 min |
| T90 Response Time | ≤10s @60 L/h |
| Core Component | Heated quartz reaction tube |
| Signal Interface | Status signal output |
| Operating Temperature | 5℃ ~ +45℃ |
| Storage Temperature | -20℃ ~ +60℃ |
| Protection Class | IP20 |
| Origin | Germany |
Product Application
It belongs to ABB online gas analysis system, widely used for CEMS continuous emission monitoring in thermal power, chemical, metallurgy and waste incineration industries; sample gas pre-treatment of process pipelines. It thermally converts complex sulfur, chlorine and carbon containing gas for downstream gas analyzer measurement, eliminates interfering gas components to guarantee measuring accuracy. Used for new system integration and spare replacement of legacy gas analysis equipment.
Related Series Models
- 23093-4-3KXG801001U0100: SCC-K, 120VAC power version
- SCC-G: Compact gas conversion pre-treatment unit
- SCC-M: Multi-channel thermal converter
