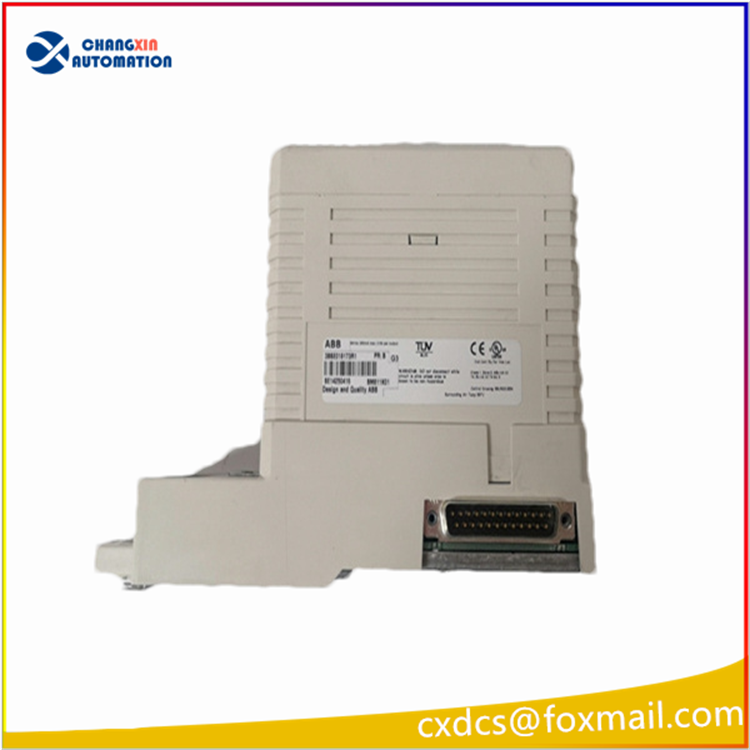

ABB SM811K01 3BSE018173R1 Safety CPU Module

The ABB SM811K01 safety CPU module is a high-performance and highly secure control component specifically designed for the industrial automation field. Here is a detailed introduction to it:
I. Core Functions
Safety Control: The SM811K01 module has been certified to SIL3 level, ensuring its high level of safety integrity. It can reliably perform critical tasks such as emergency shutdown, equipment protection, fault detection, and safety interlock, ensuring the safe operation of industrial processes.
Intelligent Monitoring: During non-SIL and SIL1-2 operations, the SM811K01 provides intelligent monitoring of the controller, ensuring the stability and reliability of the control system.
Redundant Configuration: It supports the formation of 1oo2 (one out of two) or higher redundant structures with controllers such as PM865, enhancing system availability. Additionally, it has hot-swappable features, facilitating online upgrades and maintenance.

Technical Specifications
Processor: Equipped with a high-performance CPU (such as MPC862P microprocessor, operating frequency 96MHz), featuring rapid data processing capabilities.
Memory: 32MB RAM for application operation, supporting storage flash memory (specific capacity may vary by version).
Input/Output: Supports 2-4 channels of 24VDC input (dual-channel redundancy), input current range 2.0mA to 0.5A; relays or transistors output, meeting different control requirements.
Communication Interfaces: Supports multiple communication protocols (such as PROFIsafe, CIP Safety), optional bus interface, facilitating integration with other devices or systems.
Power Requirements: 24VDC (±10%), typical power consumption ≤ 5W, adaptable to different industrial power supply environments.
Operating Temperature: -20°C to +60°C, ensuring stable operation in harsh industrial environments.
Protection Grade: IP20 (installed in control cabinet), preventing foreign objects from entering.
Size and Weight: Width 59mm, height 186mm, depth 127.5mm, weight approximately 0.7 kilograms (including base), lightweight yet sturdy.

Application scenario
Mechanical safety control: Emergency stop and safety door interlock for machines, stamping equipment, and robot units to ensure the safety of operators.
Chemical plant ESD system: Handles redundant signals to ensure rapid equipment shutdown in emergency situations, preventing the expansion of accidents.
Conveyor line safety monitoring: Controls the logic of photoelectric sensors and area scanners to achieve safe monitoring of material transportation.
