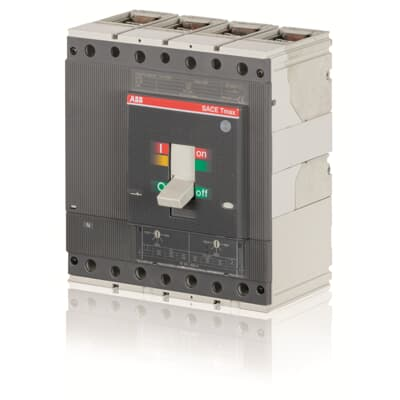

ABB T5S630 SACE Tmax T5 series plastic-case circuit breaker

Product Description

T5S630 is a moulded case circuit breaker (MCCB) of ABB SACE Tmax T5 series, frame rating 630A. “S” stands for standard short-circuit breaking capacity. This circuit breaker can be equipped with TMA thermal-magnetic trip unit or PR221DS electronic trip unit, providing long time delay overload protection, short time delay short-circuit protection and instantaneous short-circuit protection. 3-pole or 4-pole versions are available, supporting fixed and plug-in mounting. It is used in low voltage power distribution systems for protection and isolation of cables, transformers and motor loads. Accessories such as auxiliary contacts, shunt trip and undervoltage release can be fitted. It is a widely used protective component and spare part for industrial switchgear and power distribution projects.

Specifications

• Model: T5S630
• Type: Moulded Case Circuit Breaker (MCCB)
• Series: ABB SACE Tmax T5
• Frame Rated Current: 630A
• Poles: 3P / 4P optional
• Rated Operational Voltage: 690V AC
• Rated Insulation Voltage Ui: 1000V
• Rated Impulse Withstand Voltage Uimp: 8kV
• Ultimate Short-Circuit Breaking Capacity Icu @400V AC: 50kA
• Service Short-Circuit Breaking Capacity Ics @400V AC: 50kA
• Trip Unit Options: TMA thermal-magnetic trip / PR221DS electronic trip
• Mounting: Fixed type, plug-in type
• Mechanical Endurance: 20000 operations
• Electrical Endurance: 5000 operations
• Net Weight: approx. 5.2 kg
• Operating Temperature: -25℃ ~ +70℃
• Storage Temperature: -40℃ ~ +85℃
• Protection Class: IP30 (after cabinet door installation)
• Functions: Overload protection, short-circuit protection, circuit isolation, fault interruption
• Certifications: CE, IEC 60947-2

Applications

1. Incoming and outgoing circuit protection for low-voltage switchgears in industrial plants.
2. Power supply protection for high-power motors such as water pumps, fans and air compressors.
3. Secondary side protection of transformers, power distribution systems for buildings and municipal projects.
4. Matching low voltage cabinets for production lines in power plants, chemical and metallurgy industries.
5. Retrofit of legacy power distribution systems, replacement spare parts for original Tmax series circuit breakers.

Series Models (T5 Frame)

T5N630, T5S630, T5H630, T5L630, T5V630
