ABB TC513 3BSE006385R1 AF100 Fieldbus Twisted Pair Cable

Product Description

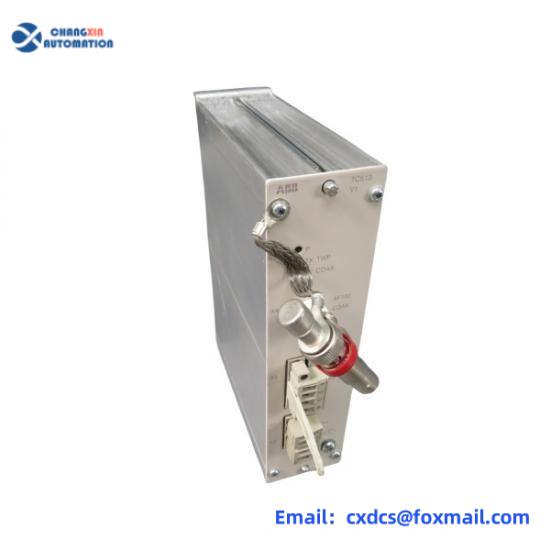

ABB TC513 3BSE006385R1 is an AF100 fieldbus Twisted Pair / Coax Modem manufactured in Sweden. It belongs to ABB Advant Fieldbus 100 (AF100) bus system and is designed for legacy AC400 and AC110 DCS controllers. It performs signal conversion between twisted pair and 75Ω coaxial cable to extend AF100 communication distance with strong EMI immunity. Daisy-chain bus topology is supported. Equipped with LED diagnostic indicators for power and network status. Standard 35mm DIN rail mounting. It is critical spare hardware for communication links of old ABB Advant DCS systems.

Specifications

• Model: TC513, Order No.: 3BSE006385R1
• Series: AF100 Fieldbus Communication Series
• Type: Twisted Pair to Coaxial Media Conversion Modem
• Bus Protocol: Advant Fieldbus 100 (AF100)
• Coax Impedance: 75Ω
• Power Supply: 24VDC
• Mounting: 35mm standard DIN rail
• Indication: LED indicators for power and communication diagnostics
• Topology: Daisy-chain bus topology
• Origin: Sweden
• Net Weight: Approx.0.73 kg
• Ingress Protection: IP20
• Operating Temperature: 0℃ ~ +60℃; Storage Temperature: -40℃ ~ +85℃
• Humidity: 5~95%RH, non-condensing
• Features: Media conversion, long-distance transmission, high noise immunity, fast fault diagnosis

Application

1. AF100 fieldbus media conversion for ABB Advant AC400 / AC110 DCS systems;
2. Bus communication extension for legacy DCS projects in power, chemical and paper industries;
3. Interconnection of AF100 segments with different cabling (twisted pair / coaxial);
4. Extend AF100 communication distance under heavy electromagnetic interference;
5. Spare replacement and overhaul retrofit for existing ABB AF100 fieldbus networks.

Same Series Models

TC512, TC513
