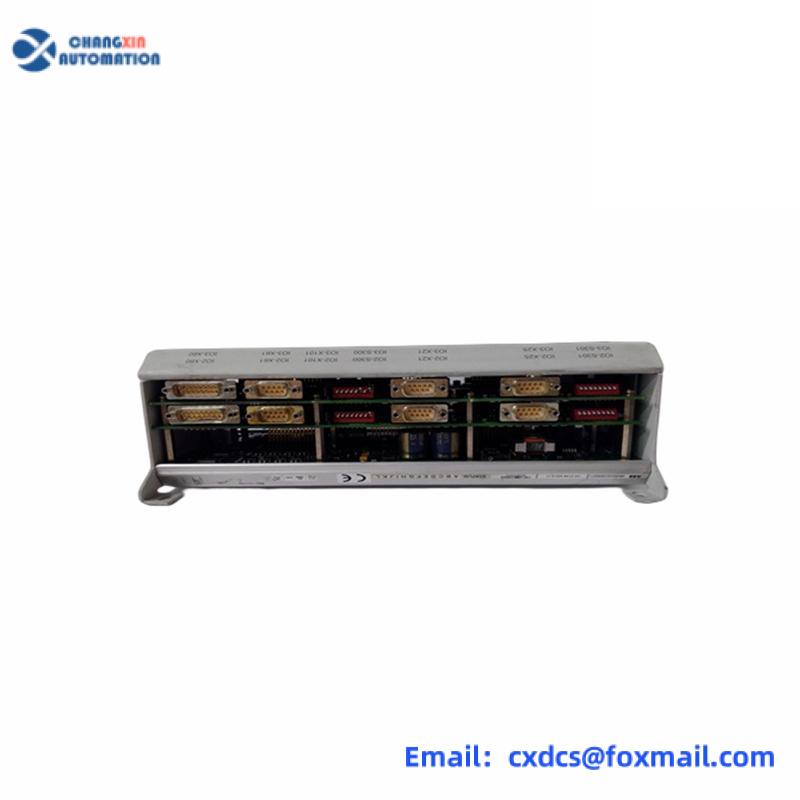

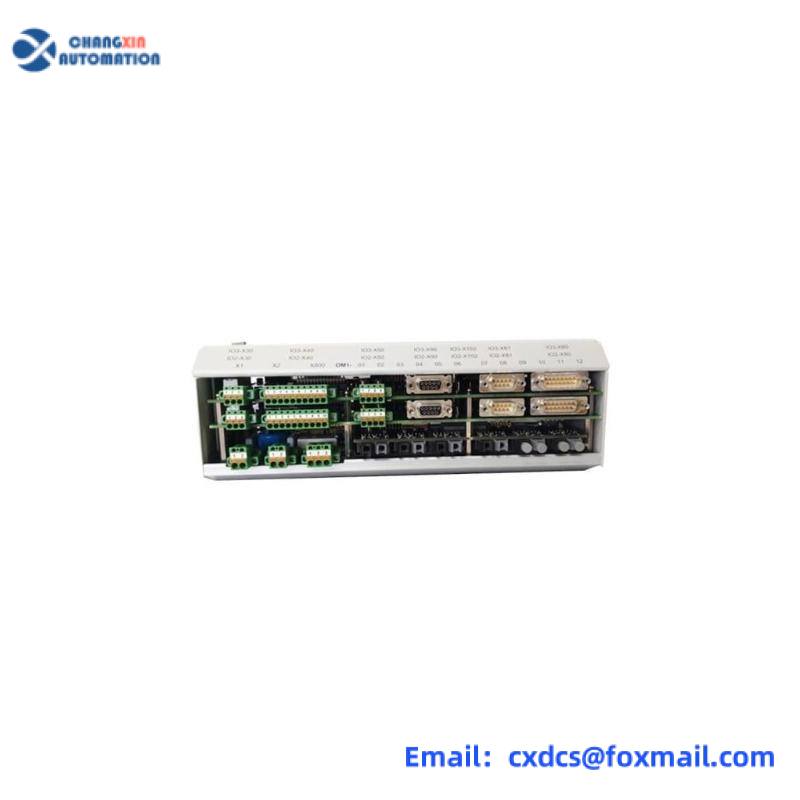

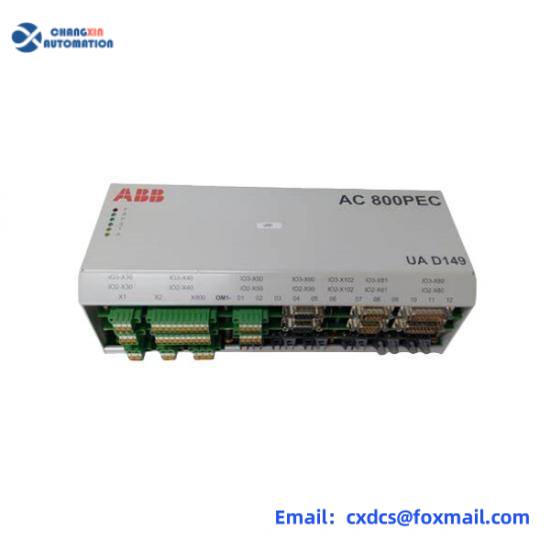

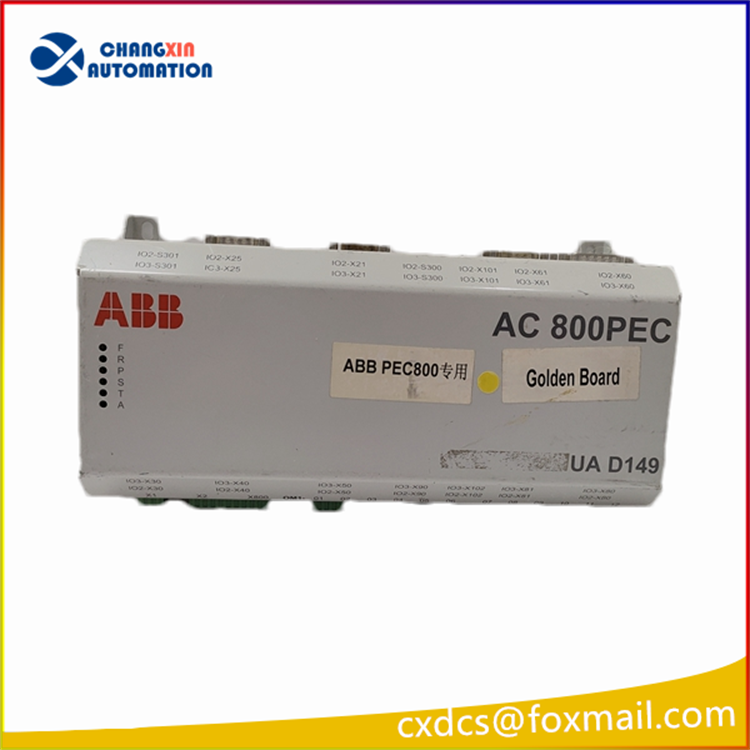

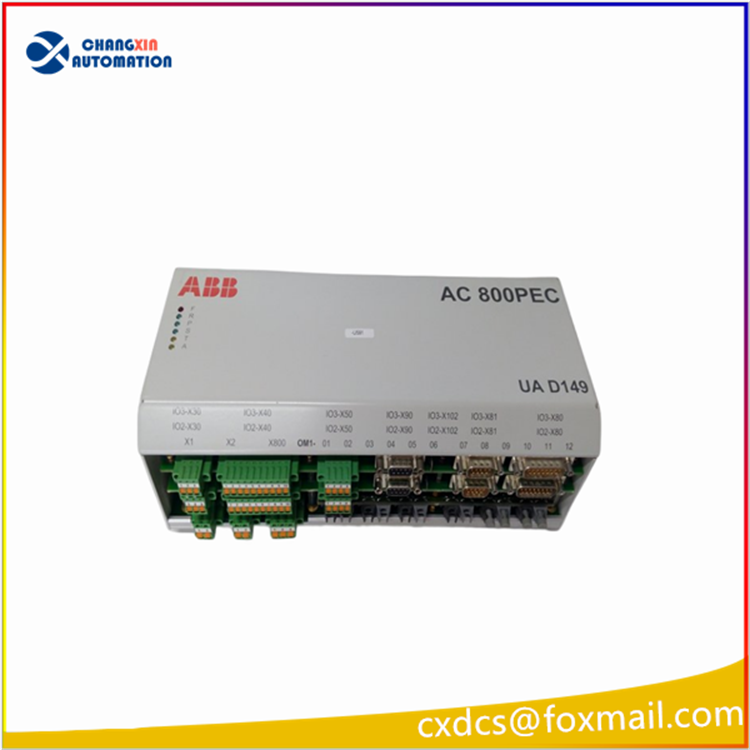

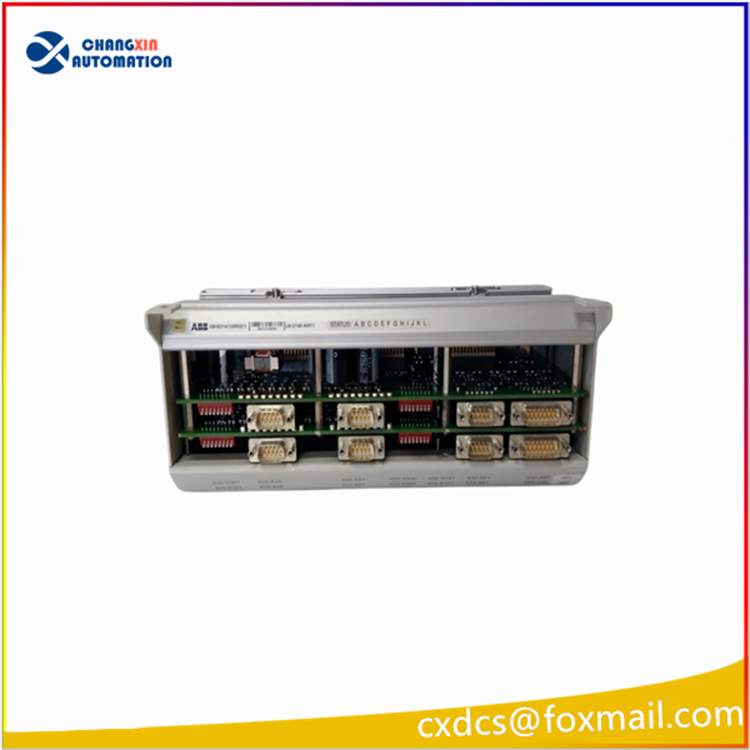

I. Basic Material Information
Order Model: UAD149A0011
Material Code: 3BHE014135R0011
Product Category: AC 800PEC Combined High-Speed I/O Module (Combi IO)
Applicable Platforms: ABB System 800xA, AC 800PEC Power Electronic Controller System
Original Factory: Formerly ABB Power Division, now Hitachi Energy
Origin: Sweden
Protection Grade: IP20 (Cabinet Rail / Rack Installation)
Core Hardware Specifications
1. I/O Channel Configuration
Multiple Analog Input Channels: Voltage / Current Signals (0~10V, 4~20mA), 12-bit High-Precision Sampling
Integrated Digital Input + Digital Output, with Electrical Isolation
Multiple Groups of DB15 High-Speed Terminal Interfaces, suitable for Encoder, Pulse, Valve Group, Temperature, Transformer Signal Acquisition
Hardware Electrical Isolation: 2500Vrms, Strong Resistance to Industrial Interference
2. Electrical and Environmental Parameters
Power Supply: DC 24V
Typical Power Consumption: Approximately 2W
Operating Temperature: -25℃ ~ +70℃
Storage Temperature: -40℃ ~ +85℃
Control Scan Cycle: Minimum 25μs, Meeting the Requirements for High-Speed Closed-loop Control of High-Power Drive and Excitation System
Size: 297×175×36mm, Weight Approximately 1.68kg
3. Communication Methods
Fiber Optic PowerLink Bus (Connecting to PPD113 Series CPU Main Controller, such as 3BHE023584R2665)
Compatible with S800 I/O Bus, DDCS Drive Bus
Supports Channel Fault Self-Detection, Open Circuit Diagnosis, Overvoltage and Overcurrent Protection, Event Fault Log Upload
Core Functions
Provide High-Speed Field Signal Acquisition + Control Output for AC800PEC Main Controller, serving as the Front-End Signal Module for Excitation and High-Power Converter
Acquire Analog / Switching Signals such as Generator Voltage, Current, Speed, Temperature, Circuit Breaker Position, Valve Position Feedback, etc.
Output Excitation Regulation Instructions, Power Unit Drive, Relay Interlock, Alarm Contact Signals
Multi-Axis Drive Synchronization Control, High-Precision Current Voltage Closed-loop Sampling Control for Wind Power / Solar Inverter, SVG Reactive Power Compensation Device
Hydroelectric, Thermal Power, Rail Transit High-Power Power Electronic Equipment High-Precision Control
Steel, Chemical Precision Motion Control, High-Power Rectifier Device Signal Acquisition Control
Typical Application Scenarios
Excitation Control System for Synchronous Generator Sets (Most Commonly Used with PPD113 Main Controller)
High-Power High-Voltage Frequency Conversion, Rolling Mill, Metallurgical Multi-Drive Control System
Wind Power Inverter, Solar Inverter, SVG Reactive Power Compensation Device
High-Precision Control of High-Power Electrical Equipment in Hydropower, Thermal Power, Rail Transit
High-Precision Motion Control of Steel, Chemical, and Other Precision Devices, Signal Acquisition Control of High-Power Rectifier Devices
Compatibility and Spare Parts Explanation

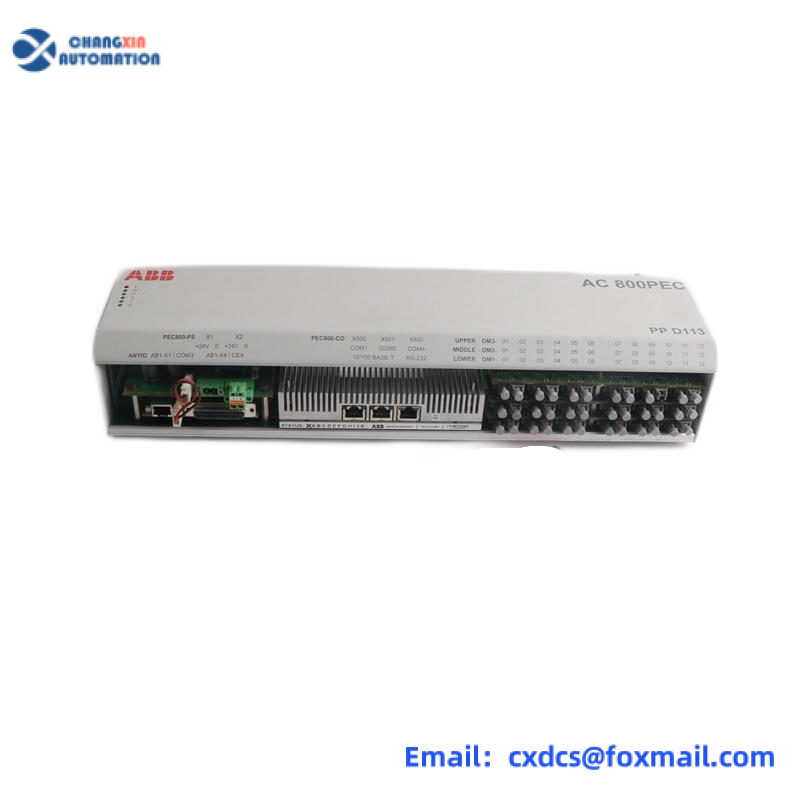

Must be used in conjunction with AC 800PEC Series CPU Main Controller (PPD113 Series, such as the 3BHE023584R2665 you previously queried), cannot run independently
Different R Suffix Versions of the same series (3BHE014135Rxxxx) have different terminal definitions and firmware configurations, cannot be directly interchanged. Replacement requires verification of hardware version + program configuration
The original factory has been discontinued, market circulation supplies are mainly new inventory and disassembled refurbished items. Regular Warranty 12 months
Support IEC61131-3 Programming, Upper Software Uses Control Builder M, 800xA System Configuration and Debugging
