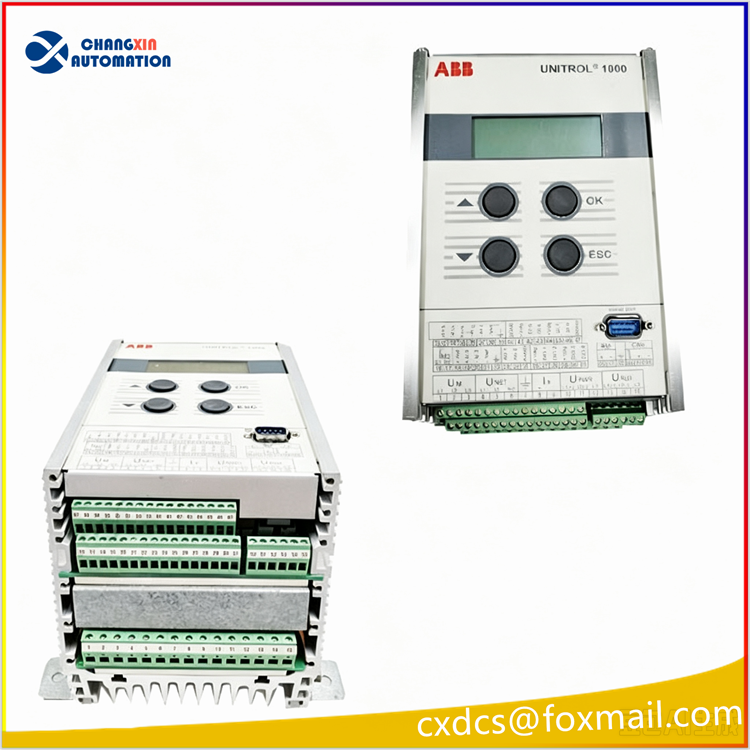

ABB UNITROL 1000-7 Automatic Voltage Regulator

Product Description

ABB UNITROL 1000-7 is a digital Automatic Voltage Regulator (AVR / Excitation Controller) within the UNITROL 1000 family for brushless excitation of synchronous generators. It is a legacy product, replaced by UNITROL 1010. Adopting fully digital control architecture, it integrates voltage regulation, protective limiters and optional PSS (Power System Stabilizer). It is a single-channel controller equipped with local MMI for on-site monitoring and parameter setup. Commissioning, configuration, fault recording and diagnostics can be done via CMT1000 PC tool. It regulates excitation current to stabilize generator terminal voltage, improve system damping and comply with grid codes, suitable for new build and retrofit projects of medium & small synchronous generators, available in BASIC, FULL and FULL+PSS variants.

Specifications

• Model: UNITROL 1000-7
• Product Type: Digital Automatic Voltage Regulator (AVR / Excitation Controller)
• Machine Range: Medium & small synchronous generator 100kVA～80MVA
• Control Modes: AVR constant voltage, FCR constant field current, superimposed PF/VAR regulation
• Regulation Accuracy: 0.1% at 25℃
• Response Time: <20ms (3-phase measurement); <50ms (1-phase measurement)
• Excitation Output: Max 10A DC
• Software Packages: BASIC, FULL, FULL+PSS (PSS2A/2B/2C per IEEE 421.5)
• Communication: RS485, Ethernet, USB service port
• I/O: Configurable analog & digital inputs / outputs
• Operating Ambient Temperature: -10℃ ~ +60℃
• Protective Functions: Overexcitation limiter, underexcitation limiter, V/Hz limiter, stator current limiter, FRT fault ride-through
• Commissioning Software: CMT1000
• Mounting: Cabinet rail mounting

Applications

1. Excitation voltage control for land-based thermal, hydro, gas turbine and diesel synchronous generator sets
2. Marine power plants and marine auxiliary synchronous generators
3. Power generation units for oil & gas platforms and mining equipment
4. Excitation control for synchronous motors
5. Retrofit & upgrade of old generator excitation systems

Series Models

UNITROL 1000-7, UNITROL 1000-15, UNITROL 1005, UNITROL 1010, UNITROL 1020, UNITROL 1000 FLEX
