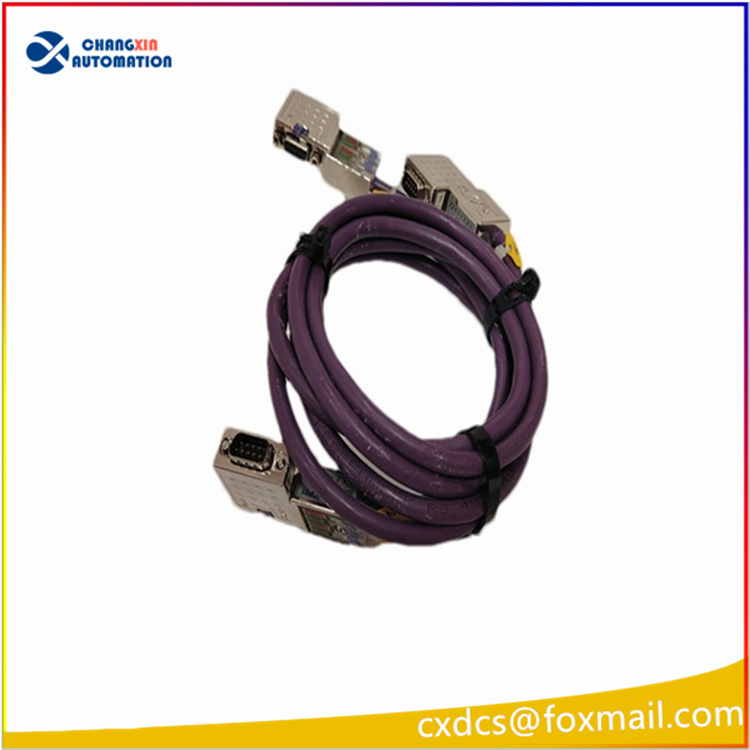

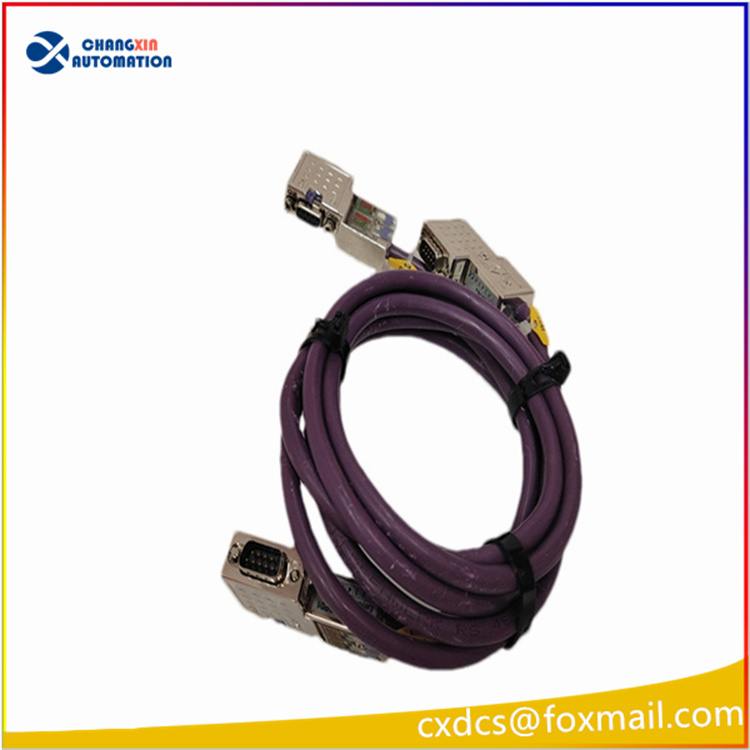

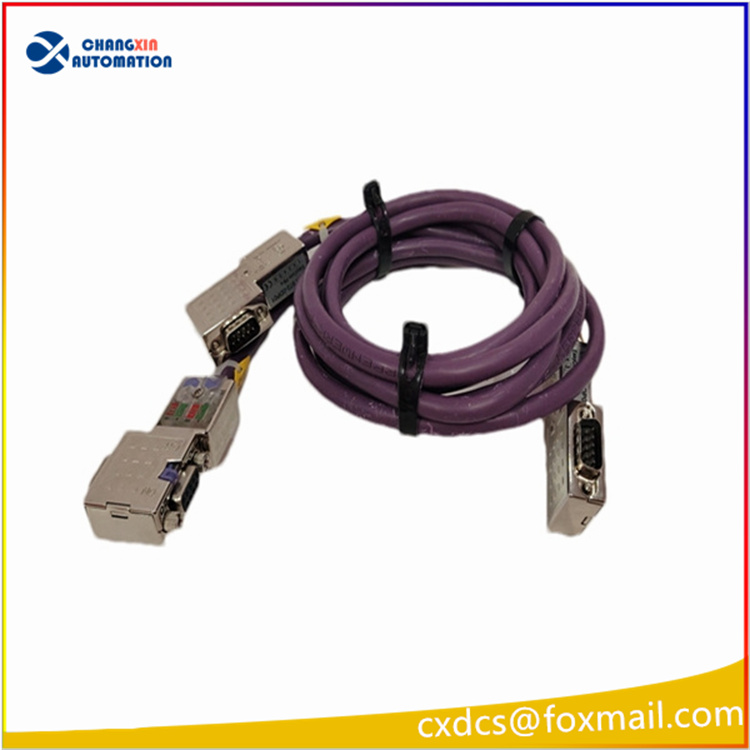

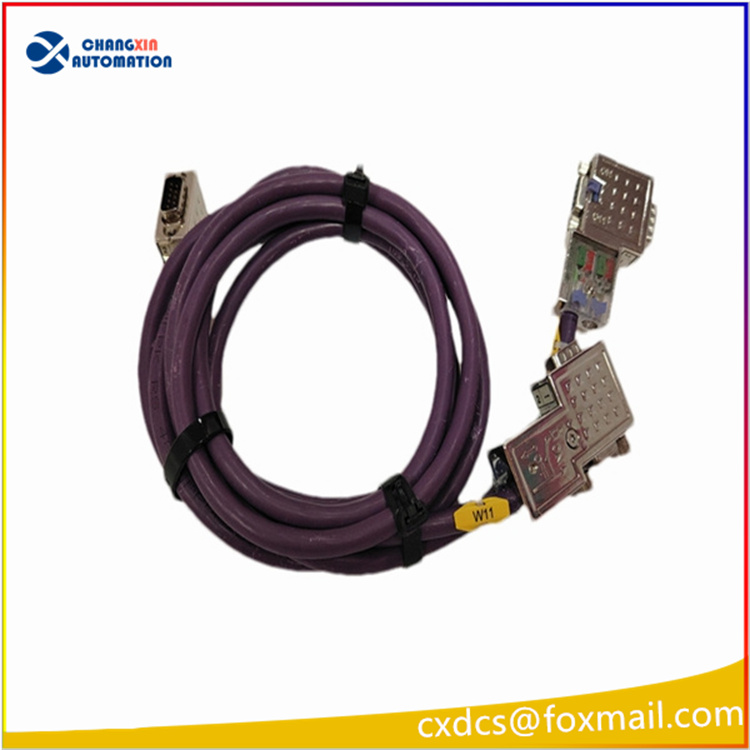

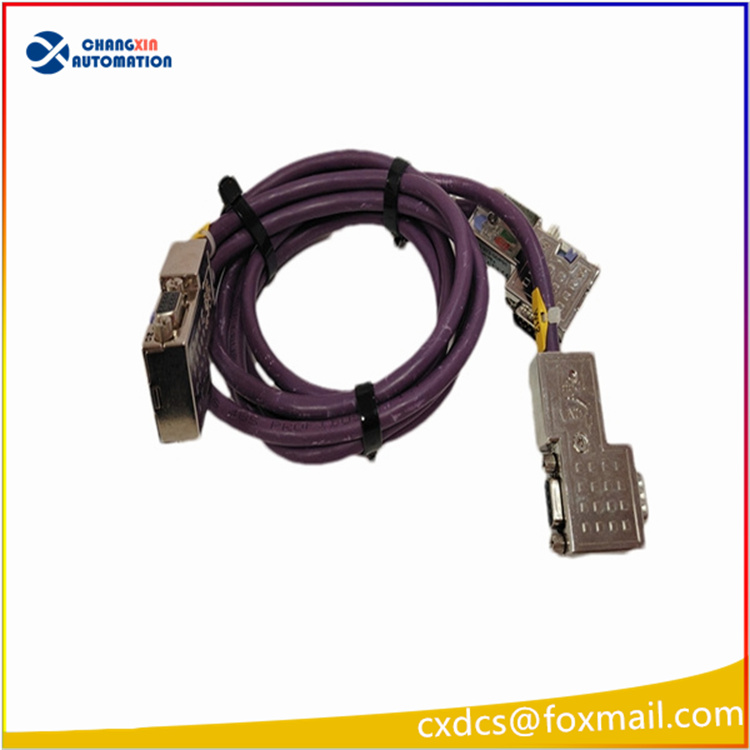

ABB VIPA 972-0DP01 PROFIBUS-DP Bus Connector

I. Basic Information
Brand: VIPA (now under the ownership of ABB)
Model: 972-0DP01
Product Type: PROFIBUS-DP RS485 Bus Connector (90° Side Out Wire)
Interface: Standard DB9 Pin Connector, with Programming and Debugging PG Port
Connection Method: EasyConn剥皮线 IDC Piercing Quick Connection
Shell： Full Metal Shielded Die-cast Zinc Shell， highly resistant to electromagnetic interference

Core Functions
PROFIBUS Physical Layer Connection
Enable PLC, Distributed I/O， Frequency Converter， Instruments， etc. to connect to the PROFIBUS-DP Field Bus， completing real-time data interaction between the controller and slave stations.
Switchable Terminal Resistor
Built-in 150Ω Bus Matching Resistor， controlled by the ON/OFF switch on the side； the connection terminals at both ends of the bus must be set to ON， and the intermediate nodes to OFF to eliminate signal reflection， prevent bus communication interruption， and prevent station loss.
Built-in PG Debugging Interface
Side预留an independent DB9 Debugging Port， no need to disconnect the bus to connect to a computer， programming device， download programs online， diagnose bus faults， and monitor communication status.
Peel-free Quick Connection
Red and Green labeled A/B Signal Lines， directly press-fit and fix， no need to peel the wire， construction is efficient， compatible with single-core and multi-core purple PROFIBUS standard cables.

Key Electrical Parameters Table
Parameters Specifications
Bus protocol PROFIBUS-DP / MPI
Transmission rate 9.6kbps ~ 12Mbps adaptive
Terminal resistance Internal 150Ω, switchable
Power supply DC5V from bus side, no external power supply required
Connection specifications AWG16~22, standard PROFIBUS A type cable
Operating temperature -20℃ ~ +75℃
Protection level IP20, full metal shielding and grounding
Outlet method 90° lateral outlet, saving installation space of control cabinet

Wiring Definitions
Green wire A → DB9 pin 3
Red wire B → DB9 pin 8
Shielding layer is crimped onto the metal housing of the connector and reliably grounded

Compatible alternative models
Siemens 6ES7 972-0BA52-0XA0 (90° outlet, fully compatible with function pins)
VIPA 972-0DP10 (straight outlet model, only the outlet direction is different, electrical compatibility)
VI. Typical application scenarios
ABB VIPA, Siemens S7 series PLC PROFIBUS-DP distributed control system;
Power plant DCS, SIS system, high-voltage frequency converter, excitation system bus communication networking;
Metallurgy, chemical industry, water treatment, rail transit automation equipment bus networking;
Old equipment bus connectors aging, communication failure spare parts replacement.
