Product Overview

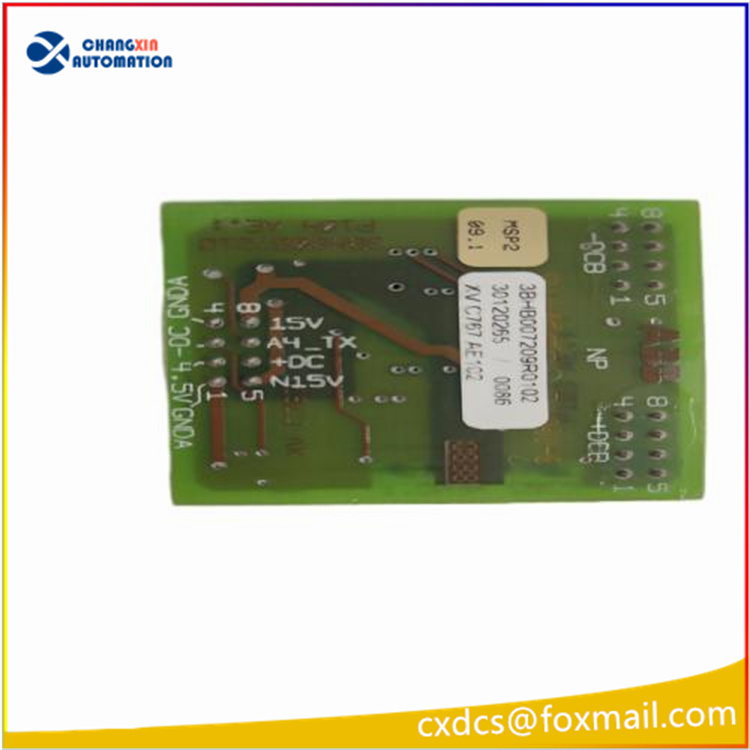

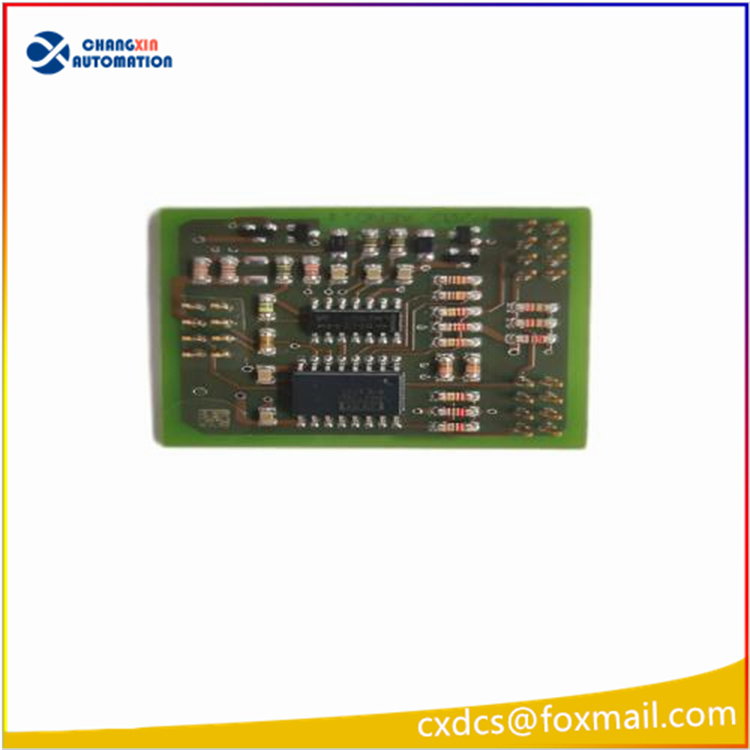

ABB XVC767AE102, Part No.3BHB007209R0102, is a dedicated signal acquisition board designed for ABB ACS5000 & ACS6000 IGCT medium & high voltage variable frequency drives, installed inside power unit cabinet as an essential sampling spare part for high-power IGCT converters.
Main Functions
- Collect secondary current signals from unit CT, complete signal filtering, galvanic isolation and level conversion, transmit real-time current data to main control unit;
- Monitor operating status of IGCT power modules, feedback overcurrent & short-circuit faults of power loop;
- Auxiliary temperature sampling for power cells to realize pre-protection against overcurrent and over-temperature.
Specifications
- Power Supply: DC24V
- Compatible Drives: ABB ACS5000, ACS6000 IGCT high voltage inverter series
- Operating Temperature: -20℃～+60℃, cabinet mounting
Application
Spare part for HV drives of power plant fans, steel mill rolling mill drives, petrochemical large compressors and mining main belt conveyors.
