AMAT 0090-76133 Single Board Computer

AMAT 0090-76133 (Synergy V452) Single Board Computer

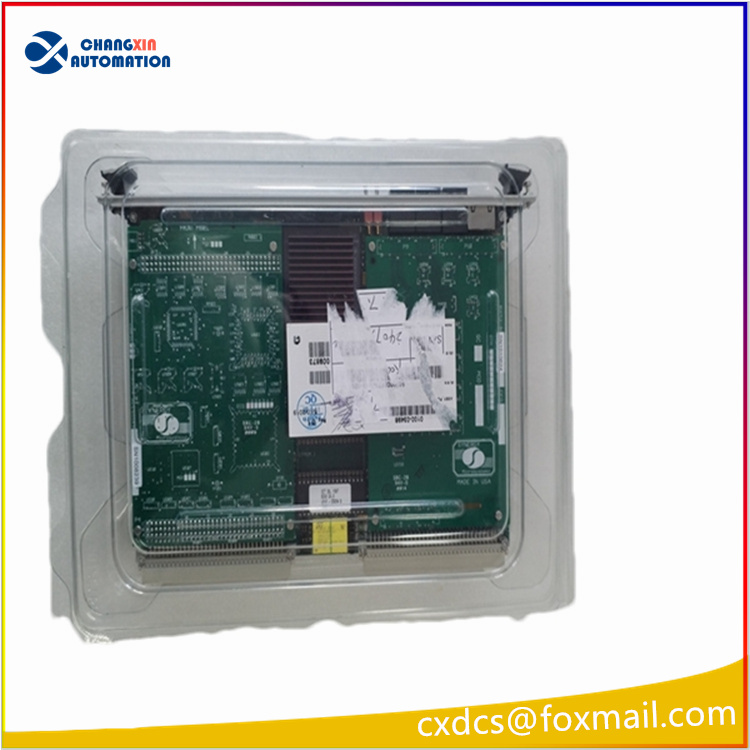

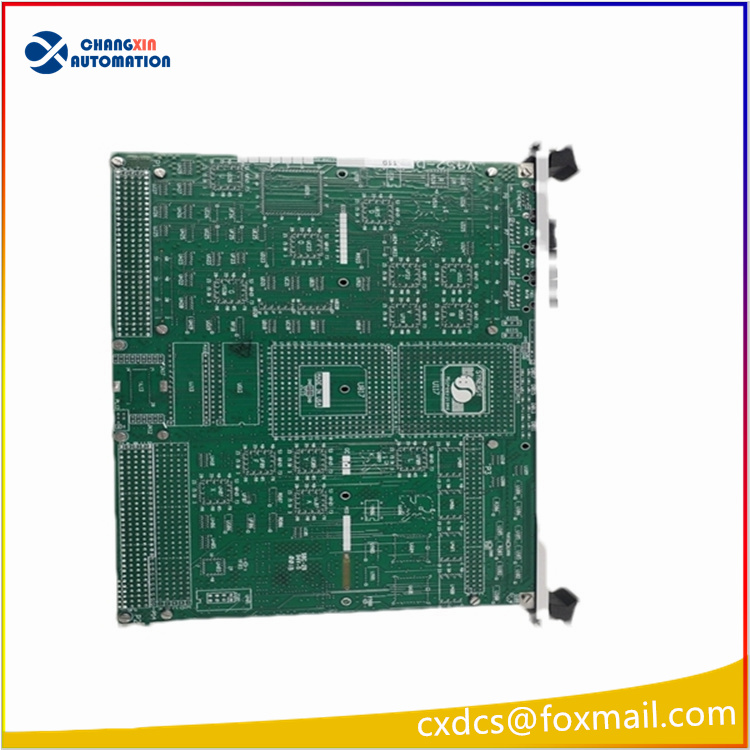

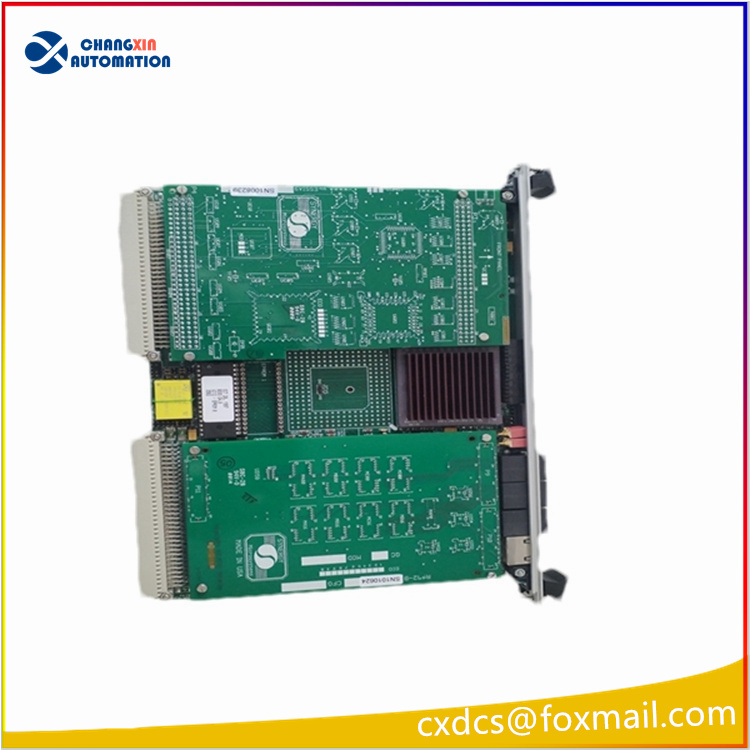

The AMAT 0090-76133 is a VME bus industrial single board computer (SBC), model Synergy V452/V452-D, manufactured by Synergy Microsystems for Applied Materials (AMAT). It serves as the core control board in semiconductor equipment.

1. Basic Information
AMAT Part Number: 0090-76133 (including version 0090-76133-A)
Original Model: Synergy V452 / V452-D
Manufacturer: Synergy Microsystems (a wholly-owned subsidiary brand of AMAT)
Application Scenario: Main control unit for AMAT semiconductor equipment (etching, CVD, RTP, deposition systems, etc.)
Bus Architecture: VME bus (industrial standard, supports multi-module expansion)

Core Hardware Specifications Table
Item Specification
Processor Motorola 68040, 16 MHz clock speed
Memory 16 MB DRAM
Storage Onboard FLASH ROM (firmware/program storage)
Interfaces Ethernet, RS-232 serial port, parallel port, VME bus interface
Dimensions Standard VME board size, compatible with industrial enclosures

Features
Real-time Control: The 68040 processor ensures real-time parameter control and data processing for semiconductor processes such as wafer fabrication and thin-film deposition.
High Reliability: Industrial-grade components designed for cleanroom and high electromagnetic interference environments, supporting continuous 7×24 operation.
Modular Design: VME bus supports expandable I/O, communication, and storage modules, enabling convenient maintenance and upgrades.
Multi-protocol Communication: Integrated Ethernet and serial ports facilitate data exchange between equipment, host computers, and sensors.
