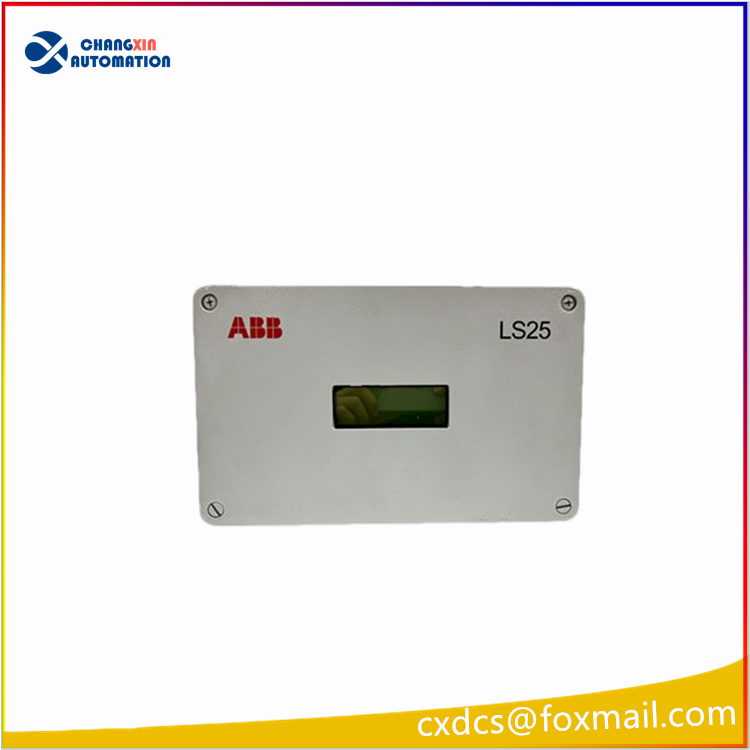

ABB AO2000-LS25 Laser Gas Analyzer (Laser Analyzer)
Brief Description
ABB AO2000-LS25 is an in-situ non-contact laser gas analyzer based on tunable diode laser absorption spectroscopy (TDLAS) technology, belonging to the ABB Advance Optima (AO2000) series. It measures gas concentrations in real-time continuously through the transverse transmission method between the transmitter/receiver across the chimney/pipeline, and possesses capabilities such as automatic calibration, explosion-proof certification (ATEX/IECEx/CSA), and remote control via Ethernet. It is widely used in gas online monitoring in industries such as thermal power, petrochemicals, metallurgy, and environmental protection.
Product Description
Item Content
Product Full Name ABB AO2000-LS25 In-Situ Laser Gas Analyzer
Model LS25
Series Advance Optima AO2000
Manufacturer ABB (Switzerland)
Measurement Principle TDLAS (Tunable Diode Laser Absorption Spectroscopy) / Infrared Single Line Absorption Spectroscopy
Core Functions Continuous non-contact in-situ gas concentration measurement, automatic calibration, remote Ethernet control
Explosion-proof Certification ATEX / IECEx / CSA (suitable for explosion-prone areas)
Product Status Original import, in stock, one-year warranty
Detailed Description
ABB AO2000-LS25 is a high-performance in-situ laser gas analyzer that adopts TDLAS technology. It is installed across the flue/pipeline by the transmitter unit and receiver unit (typical DN50 process flange). The laser passes through the gas path and is detected and absorbed by the opposite receiver, thereby accurately calculating the gas concentration. The instrument is equipped with a built-in temperature-controlled single-mode diode laser and automatic pressure/temperature compensation. It supports combination with the AO2000 central processing unit (CU) and realizes full remote control through Ethernet. It is widely used in flue gas analysis in thermal power plants, blast furnace gas analysis, petrochemical process control, environmental emission monitoring, etc.
