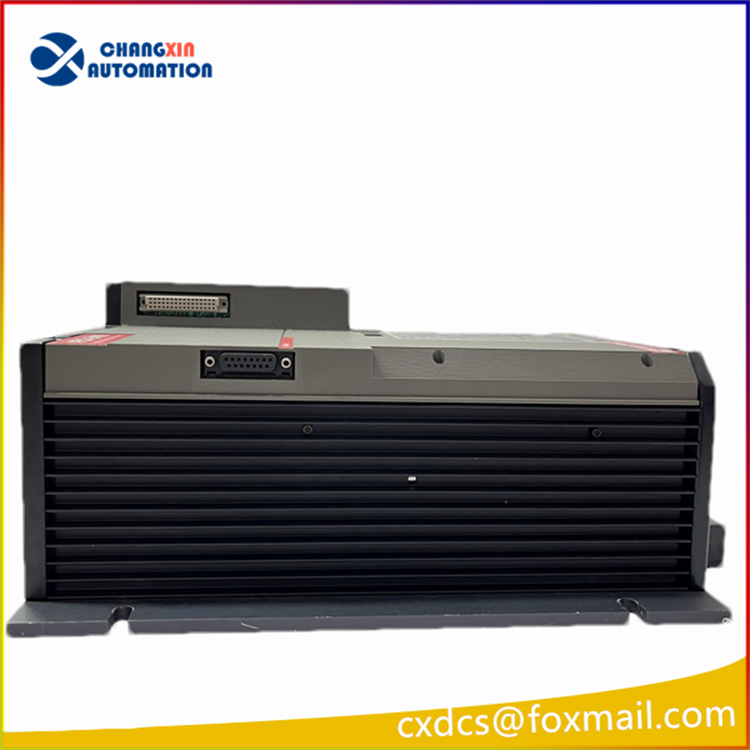

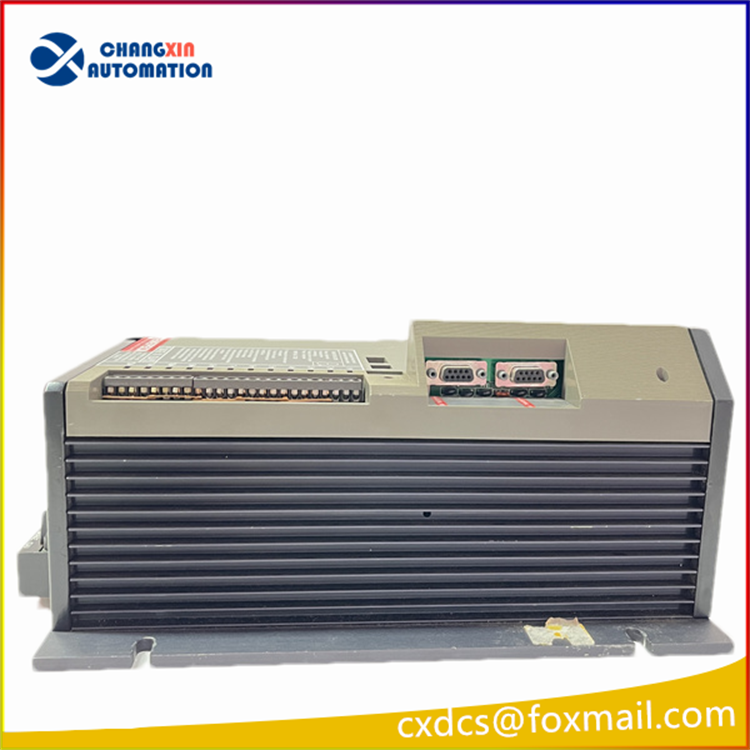

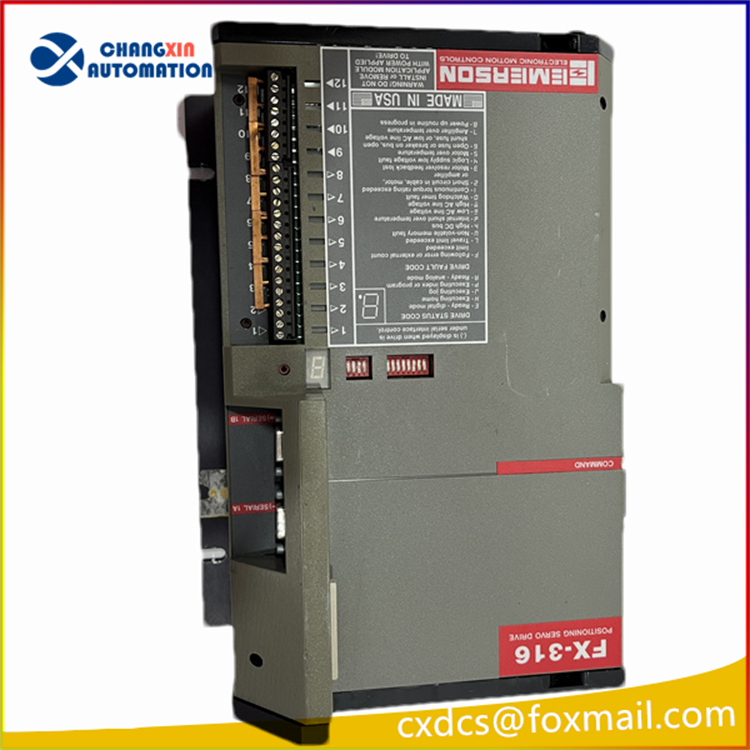

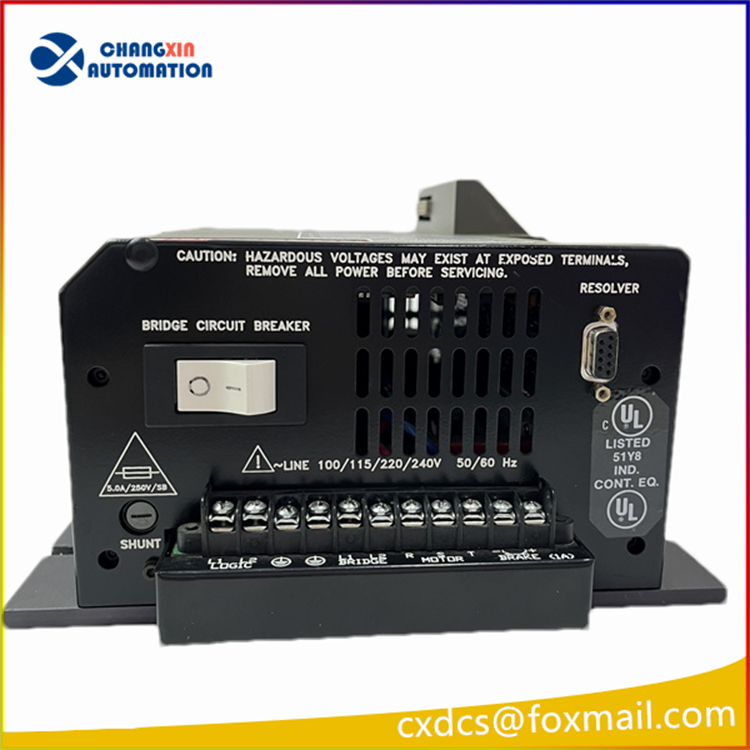

I. Basic Information

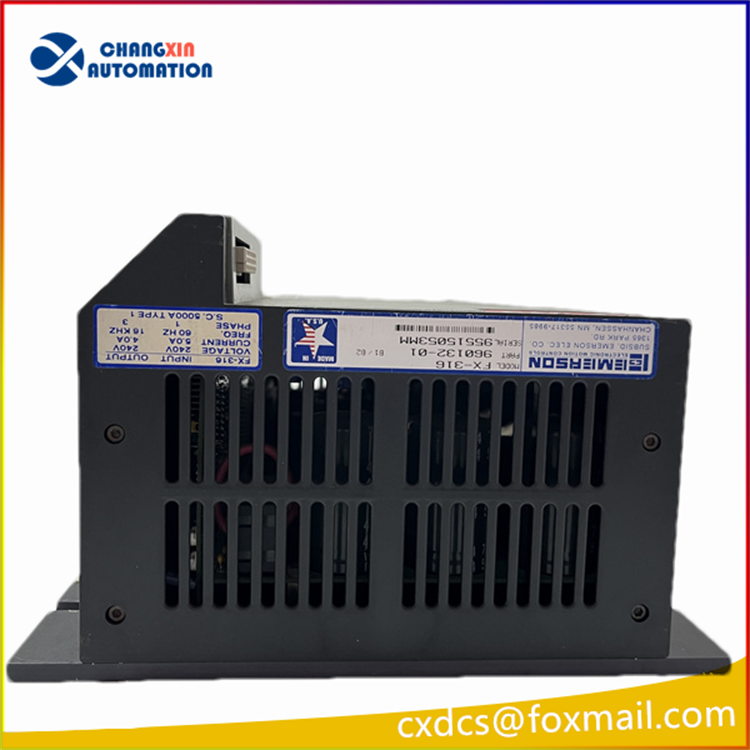

Brand: Emerson (formerly Control Techniques)
Model: FX-316
Original Part Number: 960132-01
Equipment Type: High-precision positioning servo drive
Origin: United States
Installation Method: Wall-mounted industrial cabinet installation, non-rack hot-swappable type
Core Hardware Parameters
1. Power Supply Specifications
Main circuit input: Single-phase / Three-phase 110-240VAC 50/60Hz
Control circuit: Built-in switching power supply, no additional power supply required
Rated output power: Suitable for small and medium power servo motors, peak overload capacity 150%
2. Signal and Feedback Interfaces
Encoder Feedback: Compatible with incremental orthogonal encoder (differential RS422), maximum feedback frequency 1MHz, supports precise position closed-loop positioning
Standard multi-channel isolated DI/DO terminals: Digital input, servo enable, fault reset, origin trigger; fault alarm, servo ready positioning completion output
Analog Interface: 0-10V voltage setpoint, 4-20mA current speed/torque setpoint
Communication Interface: RS485, supports Modbus RTU bus networking, multiple drives can be connected to DCS/PLC for centralized control
3. Environmental Parameters
Operating Temperature: -20℃ to +70℃
Storage Temperature: -40℃ to +85℃
Protection Grade: IP20 (installed in the control cabinet)
Electrical Isolation: 1500VAC isolation between control side and power side, anti-industrial EMC electromagnetic interference
Three Major Control Operating Modes
Positioning Mode: Supports multi-segment positioning programs, electronic gearing, origin return, relative/absolute positioning, used for precise opening of valves, actuator stroke, and fixed-point control of conveying mechanisms
Speed Mode: Analog or bus setpoint for rotational speed, stable speed control operation
Torque Mode: Tension control, constant torque winding/unwinding scenarios
Built-in Protection Functions
Overcurrent, overload, overvoltage, undervoltage, overheating, encoder break, motor phase sequence error, grounding short circuit protection
Local fault code indicator lights for local alarm, fault records can be read through the upper-level bus for easy fault traceability
Supports software limit + hardware limit dual safety protection to prevent mechanism from over-travel damage
Core Product Features
Industrial-grade closed-loop positioning, positioning repeatability accuracy can reach ±1 encoder pulse, widely used in process industry for precise regulation of actuator mechanisms
Built-in multi-segment positioning program storage, can complete multi-station sequential actions independently without an upper-level PLC
Supports multi-drive bus networking, one PLC can control multiple FX-316 for synchronous actions
Wide voltage, wide temperature reinforced design, suitable for long-term 7×24-hour operation in industrial sites with strong interference such as power plants, chemical plants, and metallurgy
Panel status indicator lights: real-time display of servo ready, running, fault, communication, and limit status, facilitating rapid maintenance and troubleshooting
Typical Application Scenarios
Precision positioning drive for fire and chemical boiler dampers, flue gas baffles, regulating valve servo actuators
Tension control for winding and unwinding in metallurgy, paper production production lines, fixed-point start/stop of conveying equipment
Electric actuator servo drive systems for valves in oil and gas, water treatment processes
Precision displacement control for automated production lines, packaging equipment with multiple stations
