EMERSON P144.R4 VME bus standard industrial control board

I. Basic Model Positioning
Brand Model: EMERSON (Emerson) P144.R4
Equipment Type: Rack-mounted intelligent mixed I/O control board card (VME bus standard industrial board)
System Ownership: Early Emerson process DCS / High-power drive control system’s supporting acquisition card, not DeltaV series, belonging to discontinued spare parts type industrial board

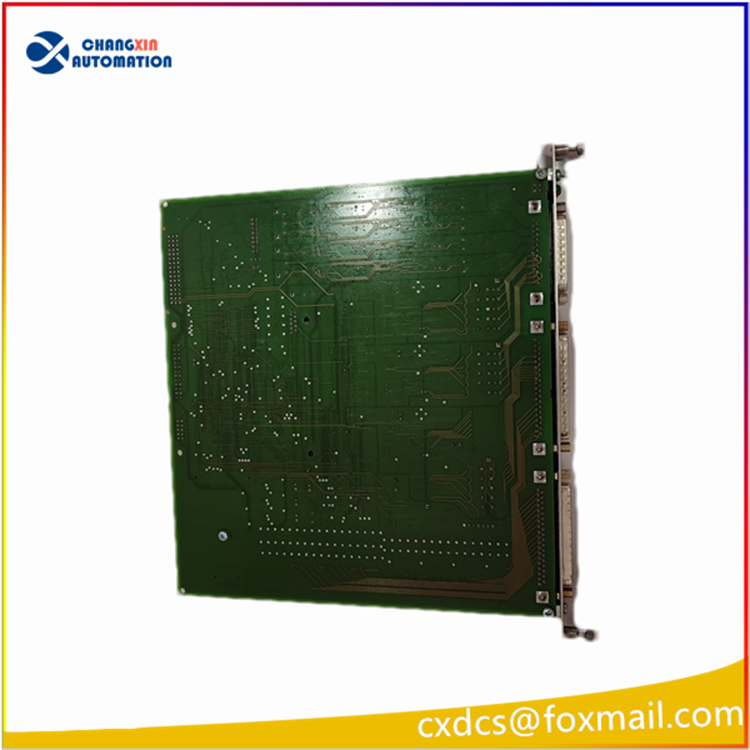

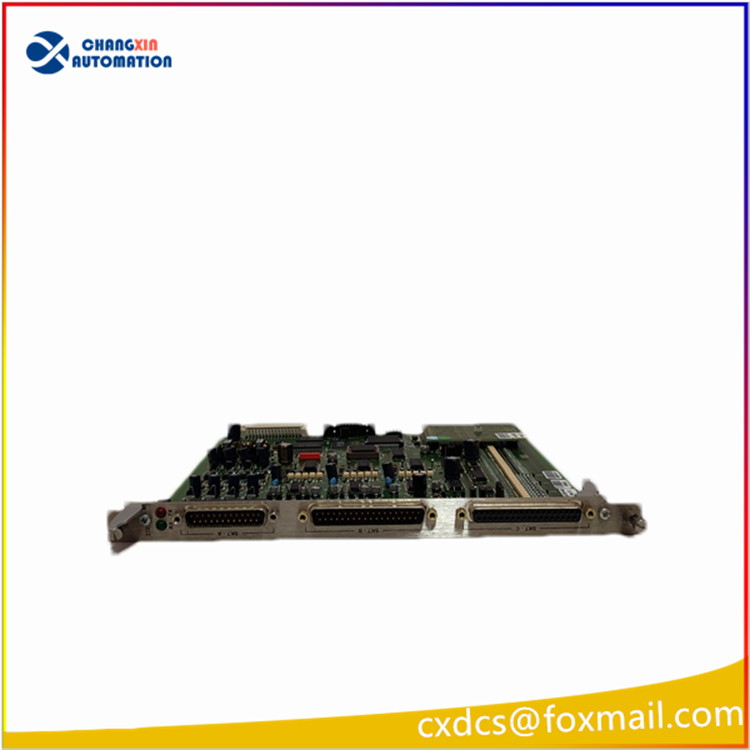

Hardware Form: Standard VME 6U rack-mounted card, three rows of DB62 industrial terminals for external wiring, backplane VME bus slots for communicationCore Hardware Channel Specifications
1. Signal Channel Configuration
Digital Input DI: 16 channels of passive switch quantity acquisition, suitable for circuit breakers, relay auxiliary contacts, limit switches
Relay Digital Output DO: 16 channels of relay contact output, single channel maximum 10A load, drive contactors, indicator lights, solenoid valves
Integrated Analog Signal Conditioning Circuit: Supports 4-20mA, 0-10V standard industrial analog signal acquisition and output, built-in signal isolation and anti-interference
Onboard Independent Signal Processing MCU, locally complete filtering, over-limit judgment, fault diagnosis, reducing the load of the main controller
2. Electrical Power Supply
Working Power Supply: 20～32VDC (standard 24VDC industrial DC)
Typical System Power Consumption: 18W
Isolation Design: Electrical isolation between on-site I/O and backplane bus, resisting strong electromagnetic interference (applicable to power transmission scenarios in power plants and metallurgy with high-power drive)

Communication and Bus
Backplane Bus: VME parallel bus, high-speed data interaction with the system’s main control CPU
External Expansion Protocol: Supports Modbus RTU, Ethernet TCP/IP, can be connected to upper-level monitoring and third-party PLC
Built-in Hardware Fault Indicator Light: Independent LED alarms for channel disconnection, overcurrent, and bus communication failure, quickly locating point faultsEnvironmental and Mechanical Parameters
Operating Temperature: -10℃ ～ +55℃; Storage Temperature: – 40℃～+70℃
Humidity: 90% RH without condensation, meeting long-term operation in industrial cabinets
Protection Grade: IP20 (only for installation inside the cabinet)
Installation: 6U standard VME rack plug-in installation, supports hot-swappable maintenance (in some systems with redundant architecture)
Size: 240×150×35mm, net weight of each piece approximately 0.4kg

Core Functional Features
Integrated Mixed Signal Acquisition
Simultaneously process switch quantities and analog quantities, one board card takes care of both on-site sensor acquisition and actuator drive, reducing the number of boards in the cabinet.
Full Channel Self-Diagnosis
Real-time monitoring of each input and output disconnection, short circuit, overload faults, upload fault codes to the main controller, facilitating maintenance and troubleshooting.
Redundancy Compatibility
Supports dual-board card redundant hot backup configuration, suitable for power plant, chemical key unit non-stop control scenarios.
Industrial Strong Anti-Interference Design
Multi-layer PCB shielding, TVS surge protection, suitable for strong electromagnetic environment around high-power frequency converters and high-voltage switch cabinets.
Modular Expansion
Multiple P144.R4 boards can be parallelly inserted on the same VME backplane, expand I/O points as needed, system expansion is flexible.

Typical Application Scenarios
High-power drive system support: synchronous motor frequency conversion, excitation control cabinet on-site signal acquisition (similar to the scenario where you previously queried the ABB AC800PEC excitation controller)
Coal-fired / Hydropower auxiliary control system: monitoring and interlock control of fans, pumps, circuit breakers, valves
Petrochemical, metallurgical rolling mill distributed process data acquisition
