EMERSON PR6424/011-140 Eddy Current Displacement Vibration Sensor

I. Basic Parameter Information
Brand: EMERSON (formerly German EPRO)
Model: PR6424/011-140
Specification Interpretation
PR6424: Probe series, M18×1.5 installation thread
011: Compatible with 11-meter armored extension cable
140: Standard length specification of the probe
Companion Equipment: Must be used in conjunction with CON011 and CON021 series preamplifiers, and connected to MMS6000 and MMS5000 rotating machinery monitoring systems
Standards: API 670, DIN 45670, ISO 10817 Rotating Machinery Protection Standards

Core Technical Parameters Table
Parameter Item Technical Specification
Static Linear Measurement Range ±2.0mm
Dynamic Measurement Range 0 – 1000μm (common range for shaft vibration)
Sensitivity 4V/mm
Rated Installation Gap (midpoint) 3.0mm, standard static gap voltage approximately -12VDC
Material to be Measured Ferromagnetic steel (42CrMo4), shaft diameter recommended to be ≥80mm
Frequency Response 0 – 10kHz
Operating Temperature -35℃ – +150℃ (maximum short-term 180℃)
Protection Grade IP67, PTFE high-temperature resistant cable, capable of withstanding oil, sewage, and steam
Explosion-proof Grade Ex ib IIC T6, suitable for use in explosion-proof hazardous areas
Maximum Axial Surface Linear Velocity 2500m/s

Core Measurement Functions
Axial Displacement Monitoring
Monitoring of axial movement of turbine and compressor thrust bearing rotor in steam turbines and compressors to prevent friction and collision between moving and stationary parts, which is a key measurement point for ETS protection of the unit.
Radial Axial Vibration Measurement
Installing two probes at 90° orthogonal positions at the bearing seat to collect the amplitude of the radial vibration of the rotating shaft, to determine rotor imbalance, misalignment, and bearing wear faults.
Thermal Expansion Difference, Eccentricity, Valve Position Gap Measurement
Monitoring the thermal expansion difference between the rotor and the cylinder of the steam turbine, shaft bending eccentricity, and valve opening gap.
Phase Speed Collection
Combining with the keyway on the shaft, output synchronous pulse signals for vibration phase analysis and fault spectrum diagnosis.

System Composition
PR6424 Probe Body: M18 thread installation, sensing changes in shaft clearance

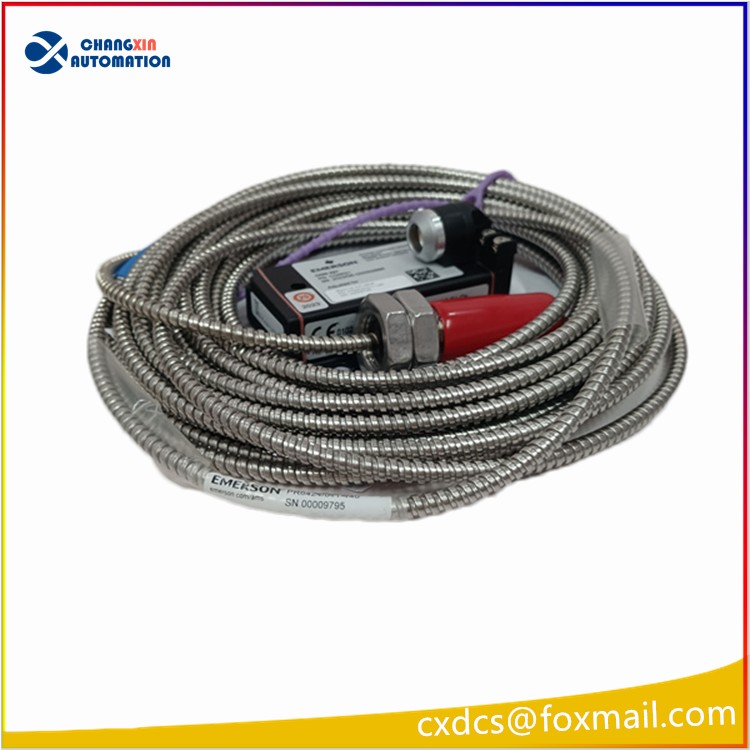

11-meter armored extension cable: shielded for anti-interference, connecting the probe and the preamplifier

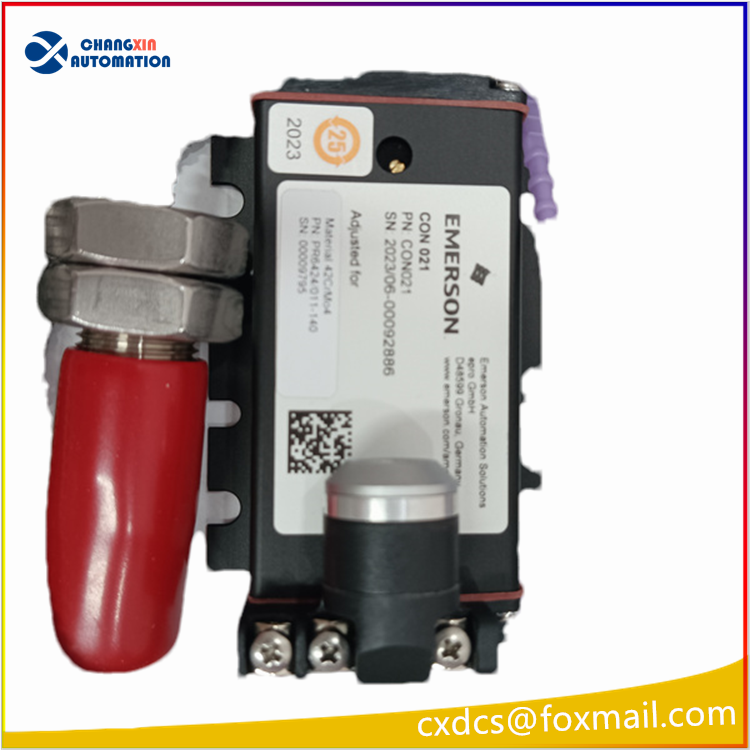

CON Series Preamplifier: providing high-frequency oscillation excitation, converting the clearance signal linearly into a 0 – -20VDC voltage signal, uploading to the monitoring framework
MMS6000 Monitoring Module: signal acquisition, over-limit alarm, interlock shutdown protection

Typical Application Scenarios
Safety Monitoring of Axial Vibration, Axial Displacement, and Thermal Expansion Difference in Steam Turbine Generators of Thermal Power Plants and Gas Turbine Power Plants
Equipment Protection for Petrochemical Centrifugal Compressors, Large Fans, and Booster Units
Online Monitoring of the State of Large High-Speed Rotating Equipment in Metallurgy, Mining, and Water Supply
Sensor Spare Parts Replacement for Old EPRO MMS Systems and Unit Vibration Protection Renovation
