I. Product Brief Description

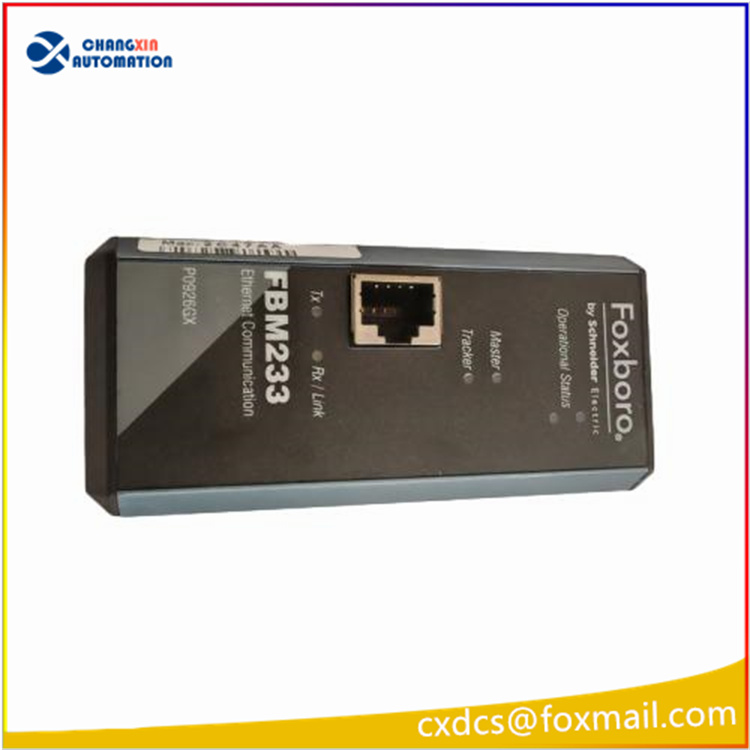

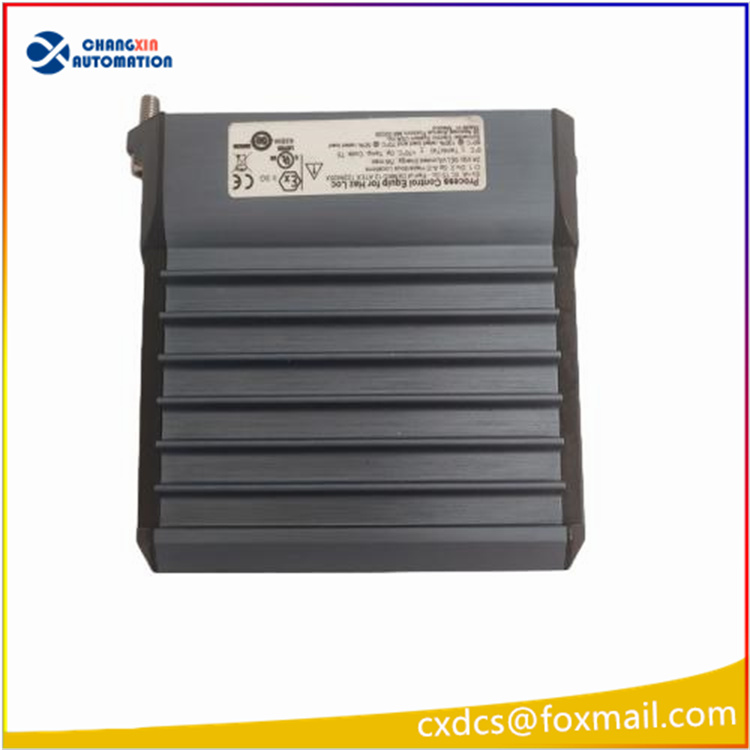

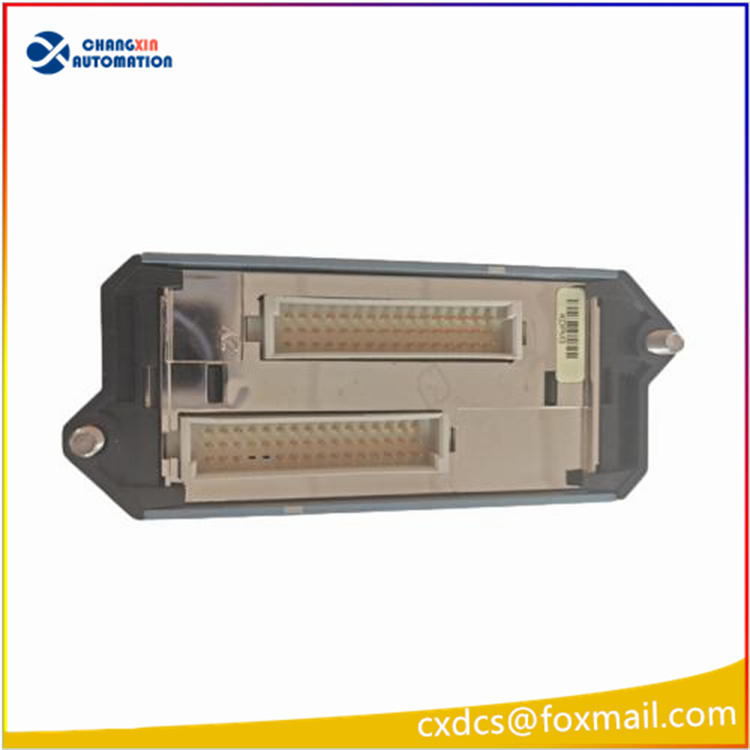

This product belongs to the Foxboro I/A Series DCS control system under Schneider. Its full name is FDSI Field Equipment System Integrated Redundant Communication Module. The material order number is P0926GX. As a protocol conversion gateway between the DCS master station and third-party Ethernet field instruments, PLCs, and remote I/Os, a single module can accommodate up to 64 field devices. Two paired deployments can achieve module-level redundant hot backup. It is suitable for the bus expansion and third-party equipment access transformation of old DCS systems in petrochemical and power plant process industries.
Key Technical Parameters
Table
Parameter Item Technical Specifications
Power Supply DC 18~36V (standard 24VDC, power supply inside the cabinet)
Overall Power Consumption ≤5W
Ethernet Interface 1 front-mounted RJ45 10/100Mbps auto-sensing electrical port (maximum transmission distance of 100m for twisted pair)
Maximum Number of Modules Supported for Installation Up to 64 Ethernet peripheral devices
Data Interchange Capacity Maximum support for 2000 sets of DCI data block point mapping
Redundant Architecture Dual-module operation with one primary and one backup, automatic failover without interruption in case of faults
Installation Specifications Standard I/A series FBM rack plug-in installation
Dimensions 114mm (height) × 45mm (width) × 104mm (depth)
Net Weight of the Entire Machine Approximately 284g
Environmental Grade G3 harsh industrial environment grade (resistant to dust, moisture, and corrosive gases)
Operating Temperature 0℃ ~ +60℃
Storage and Transportation Temperature -40℃ ~ +85℃
Protection Grade IP20 (inside the control cabinet)
Built-in Status Indicators Group of LED status displays for power, operation, link, and fault
Firmware Characteristics Downloadable multi-protocol driver firmware, configurable communication protocols as needed
Mean Time Between Failures (MTBF) >100,000 hours
Core Product Performance
Module-level Redundant Fault-Tolerant Operation
When configured in pairs, one module is responsible for real-time data transmission and reception, while the other is a tracking backup module. In case of communication interruption or hardware failure of the main module, the system automatically switches to the standby module within milliseconds, ensuring uninterrupted control throughout the process, meeting the safety requirements for continuous production in power plants and chemical plants; manual switching of the main and standby roles can also be achieved through the upper-level software.
Flexible Adaptation to Multiple Protocols
Modules can download corresponding drivers, compatible with mainstream industrial Ethernet protocols, and can uniformly integrate data from third-party PLCs, flow meters, analyzers, and frequency converters into the Foxboro DCS real-time database, breaking down the data barriers of heterogeneous control systems.
Massive Point Data Mapping Capability
Up to 2000 sets of process data mapping blocks can be established. Analog, digital, and cumulative quantities can be bidirectionally read and written, meeting the demand for centralized collection of a large number of on-site measurement points in large-scale production workshops.
Complete Hardware Self-Diagnosis and Link Monitoring
Real-time inspection of Ethernet links, heartbeat of on-site equipment, and internal circuitry of the module; equipment disconnection, network cable breakage, and power abnormalities can trigger alarms, and fault codes can be uploaded to the DCS monitoring screen for easy troubleshooting.
Durability Design for Harsh Industrial Conditions
Circuit boards are coated with three protection layers, resistant to electromagnetic interference, vibration, and salt spray corrosion, capable of operating continuously without interruption for 7×24 hours, suitable for harsh factory environments such as thermal power plants, oil and gas refineries, and other harsh factory environments.
Hot Swap Maintenance Design
Modules can be plugged in and replaced without system shutdown, allowing for equipment maintenance without the need for a complete shutdown of the entire line.
Application Domains
Thermal power plants, gas-fired power plants Foxboro I/A DCS system external Ethernet instruments, flue gas analyzers, denitrification systems PLC connection;
Petroleum refining, chemical parks process DCS integration of third-party fieldbus devices;
Remote sites of oil and gas pipeline pumping stations, LNG receiving stations data centralized upload;
Distributed workshops of paper mills, building materials, and pharmaceutical factories interconnection of multiple brand automatic control systems;
Upgrade of old Foxboro DCS systems, spare parts replacement and maintenance scenarios.
