Product Overview

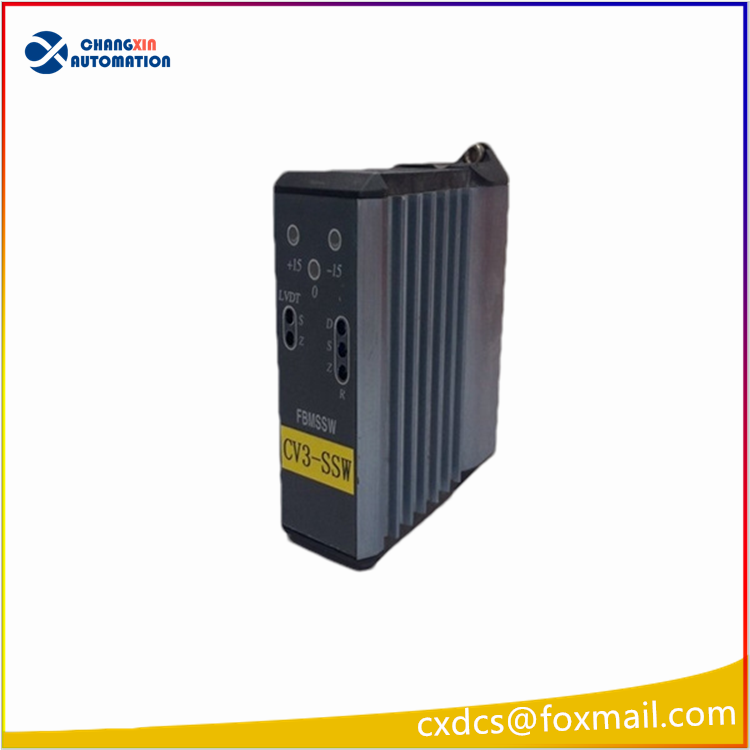

FOXBORO FBMSSW (Part No. 542167) is a 16-channel dry contact digital input module dedicated to FOXBORO I/A Series DCS control system. As a core Field Bus Module (FBM), it is specially designed for industrial process control. It accurately collects passive dry contact signals from field equipment such as limit switches, level switches, button contacts and relay feedback devices, isolates and converts field switch status signals, and uploads data to the DCS main control system.
Adopting industrial isolation design, the module features strong anti-interference ability and stable long-term continuous operation, fully adapting to heavy-duty industrial working conditions in chemical, power, oil & gas and water treatment industries. FBMSSW 542167 is an original standard spare part for the system, with regular channel configuration, high signal acquisition accuracy and low failure rate. It is a universal core module for daily maintenance, module replacement and system expansion of FOXBORO I/A systems.
2. Technical Parameters
|
Parameter
|
Specification
|
|
Model
|
FBMSSW
|
|
Part Number
|
542167
|
|
Product Type
|
16-Channel Dry Contact Digital Input Module
|
|
Applicable System
|
FOXBORO I/A Series DCS Control System
|
|
Input Signal Type
|
Passive dry contact signal, switch status contact signal
|
|
Channel Quantity
|
16 independent digital input channels
|
|
Isolation Mode
|
Industrial electrical isolation, independent single-channel isolation
|
|
Working Power
|
System bus power supply, compatible with I/A system standard voltage
|
|
Operating Temperature
|
0℃ ~ +60℃ industrial standard temperature range
|
|
Protection Grade
|
Industrial cabinet protection, suitable for indoor cabinet installation
|
|
Core Functions
|
Field switch status acquisition, passive contact signal conversion, isolated signal transmission, real-time status upload
|
|
Matching Equipment
|
Limit switches, level switches, pressure switches, buttons, relay feedback, valve position switches
|
|
Origin
|
Original USA imported
|
3. Product Features
-
Highly Integrated Multi-channel Design: Integrates 16 independent digital input channels, supporting multi-path field switch signal collection simultaneously. It saves cabinet installation space and reduces system wiring cost.
-
Accurate Passive Signal Acquisition: Optimized for dry contact passive signals, no external field power supply required. It perfectly matches various industrial switches and relay contacts with stable and accurate signal collection.
-
Safe and Reliable Electrical Isolation: Independent single-channel electrical isolation structure blocks field interference and voltage surge effectively, preventing field faults from spreading to the main control system and ensuring DCS system safety.
-
Excellent Industrial Anti-interference Performance: Optimized for high electromagnetic interference working conditions in chemical and power industries, featuring strong noise resistance, stable signal transmission without false acquisition or signal drift.
-
High System Compatibility: Fully compatible with the full series of FOXBORO I/A Series control systems, plug-and-play without program modification, ideal for old system replacement, faulty module replacement and system expansion upgrading.
-
Convenient Maintenance and Low Failure Rate: Standard modular structure with simple disassembly, assembly and wiring. It operates stably and durably with low long-term operation and maintenance costs, adapting to 24-hour continuous industrial operation.
