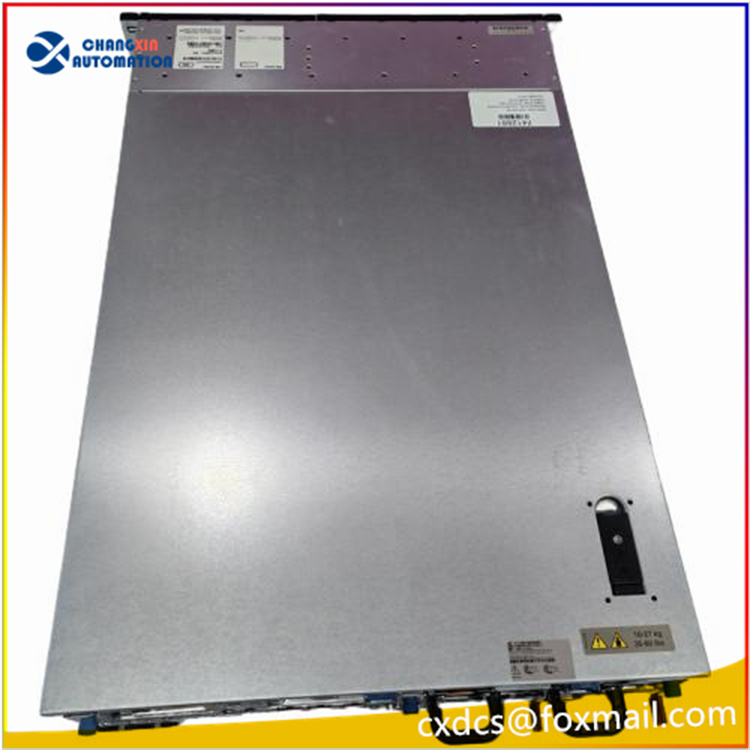

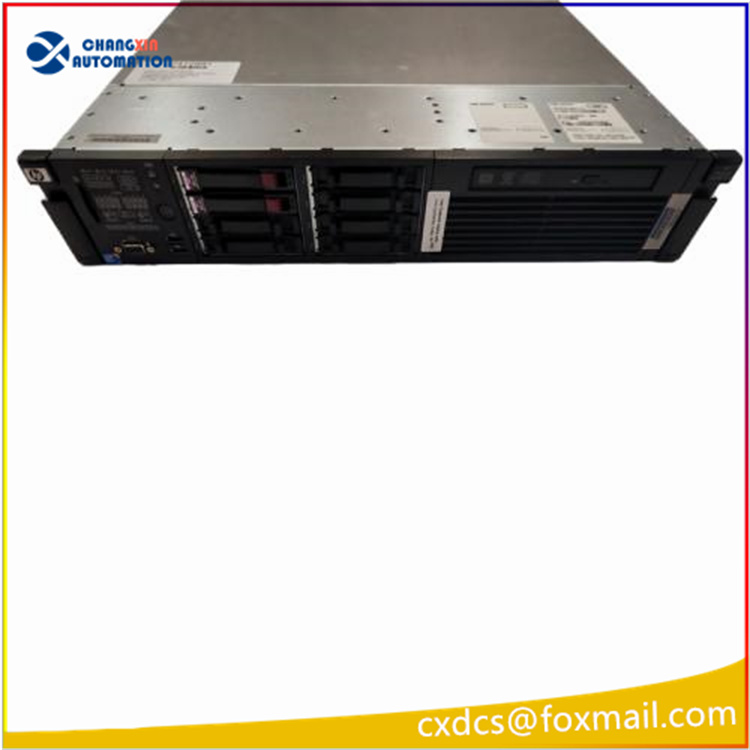

FOXBORO H90 H90C9AA0117S I/A Series Industrial Server

I. Basic Definition of Model
Brand: FOXBORO (Foxboro, an I/A Series DCS system under Schneider)
Series: H90 Industrial Rack-mounted Control Server, belonging to the I/A Series DCS upper-level core hardware

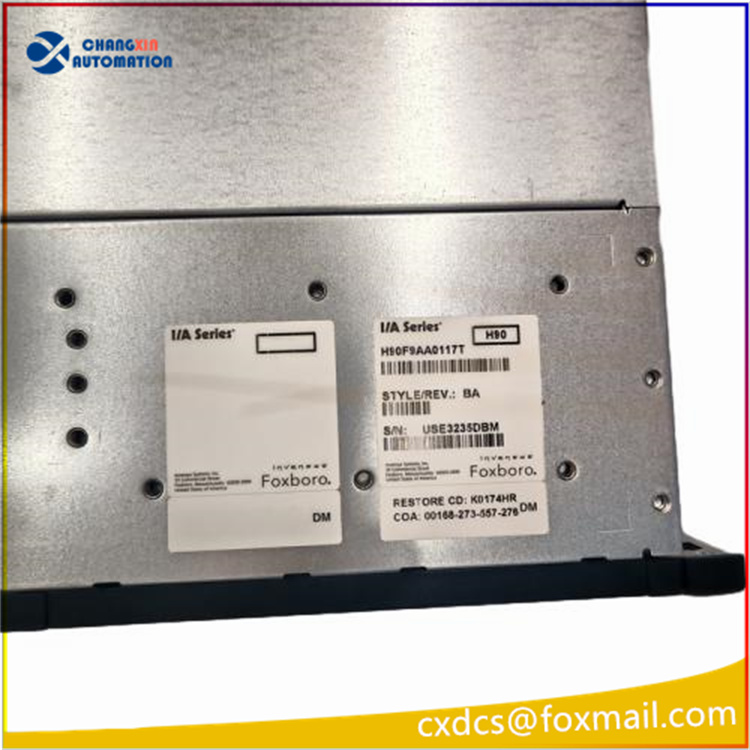

Complete Part Number: H90C9AA0117S (The unique order code for the entire machine, must be fully filled in for procurement and spare parts)
Equipment Positioning: 2U Rack-mounted Industrial Server, divided into three types of uses: engineer station, operator HMI, and historical database server. It is the upper-level data center of the I/A DCS system, connecting the field control station and the entire plant monitoring screen.Segmented Analysis of Model Code H90 C9 AA 0117 S
H90: Product Series (2U Industrial Rack Server Platform)
C9: Hardware Configuration Level (High-end Xeon Processor, Multiple Network Ports, Large-capacity Storage Version)
AA: System Pre-installed Software Package (I/A DCS Standard Monitoring + Historical Record Software Authorization)
0117: Hardware Batch, Backplane Interface, Power Redundancy Configuration Version
S: Factory Test Certification Mark, Compatible with Power Plants / Chemical Industry Explosion-proof EMC Industrial Standards

Core Hardware Specifications
1. Computing and Storage
CPU: Intel Xeon Industrial Multi-core Processor, supporting 7×24-hour uninterrupted real-time computing
Memory: Standard 16GB DDR4 ECC Error-Correcting Memory, expandable to 64GB, ensuring concurrent reading of massive measurement points
Hard Disk: Multi-slot SAS Hot-Swappable Hard Disk, supporting RAID1 Redundancy, used for storing real-time trends, alarm events, unit fault recording data
CD-ROM: Built-in DVD-RW, used for engineering program backup, firmware upgrade
2. Communication Interfaces (Post-Backplane)
Multiple Gigabit Ethernet Electrical Ports:
DCS Control Network: Connect to I/A Field FCP270/CP270 Control Station, collecting all plant analog quantities, switch quantities, PID loop data
Upper-level Monitoring Network: Connect to central control screens, remote clients, factory MES/ERP systems
Third-party Interface Network: Modbus TCP, OPC UA, connect to ABB AC800M PM866A DCS, VME Gas Turbine Control System, Vibration Monitoring VM600, Excitation GFD563A102 and other external devices
Serial Port RS232, USB, VGA Video Output: External display, keyboard and mouse, local debugging terminal
Dual Redundant 750W Hot-Swappable Power Supply, single power failure does not stop operation
3. Mechanical and Environmental Parameters
Installation: Standard 2U 19-inch Rack-mounted Installation
Size: Height 88mm × Width 445mm × Depth 700mm
Operating Temperature: 0℃ ~ +60℃, industrial dust-proof, anti-vibration reinforced cabinet
Protection: IP20 inside the cabinet, CE, UL industrial EMC electromagnetic compatibility certification, compatible with strong electromagnetic interference environment in power plants

Core Software and Functions (I/A DCS Exclusive)
Operator Monitoring HMI
Run FoxView Monitoring Screen, real-time display of boiler, turbine, excitation, auxiliary machine operation parameters, pop-up alarms, trend curves, sequential control operation panel.
Engineer Configuration Station
Use FoxDraw, Control Builder software to complete control logic loading, measurement point configuration, alarm threshold modification, PID parameter tuning.
Historical Data Server
Long-term storage of unit operation data, supports monthly/year historical curve retrieval, fault event sequence record, used for unit performance analysis, accident traceability.
Cross-system Data Gateway
Through OPC protocol and your previous complete industrial control hardware intercommunication: ABB PM866A AC800M DCS
Concurrent VME gas turbine real-time control system (SSI232.1, P144.R4, P155.R2)
ABB AC800PEC excitation GFD563A102
VM600 MPC4 vibration monitoring, Honeywell EG1033 flame amplifier
