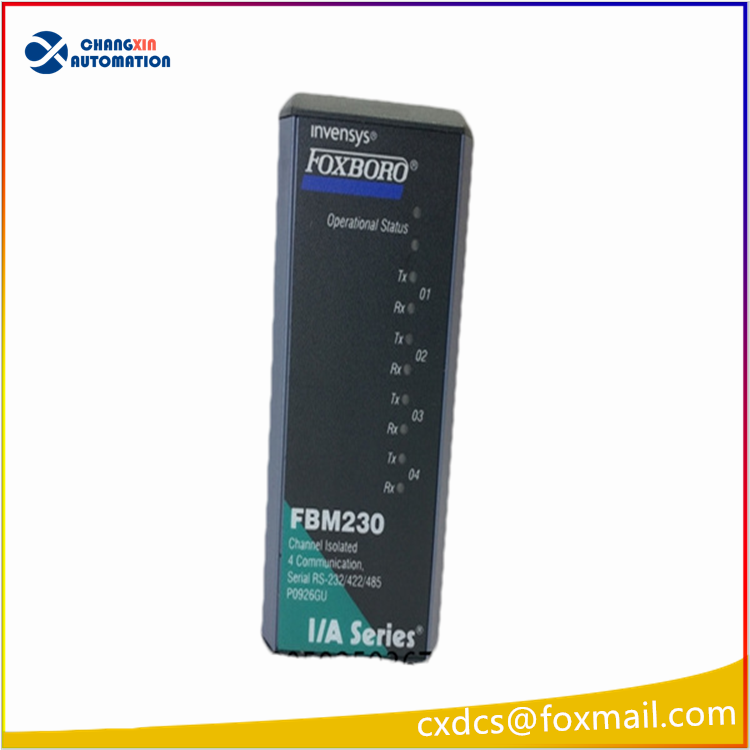

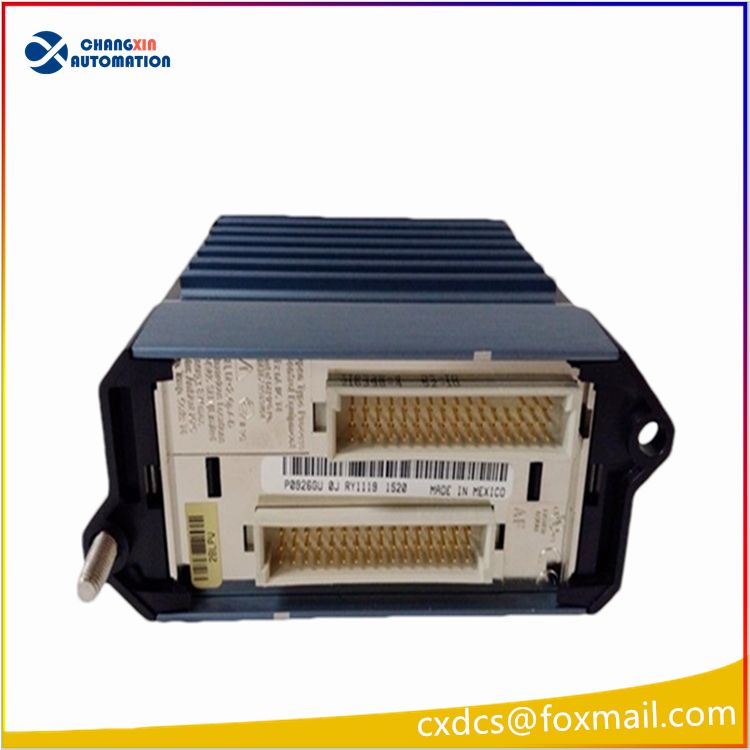

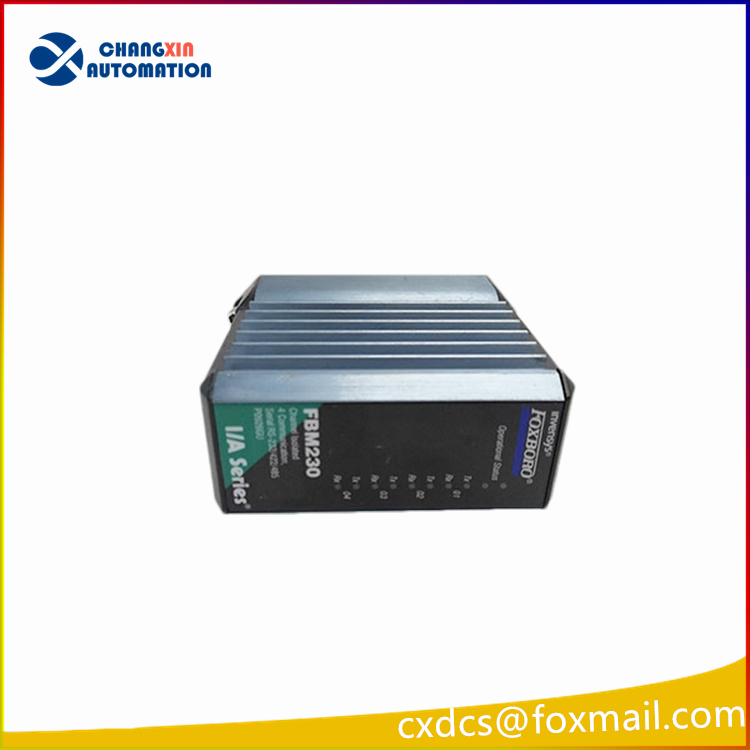

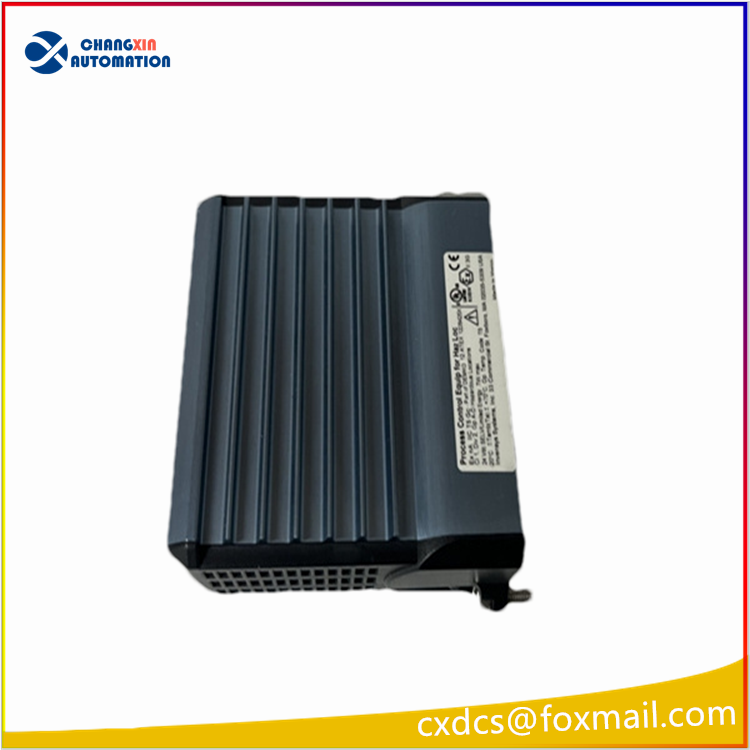

Foxboro P0926GH FBM230 Field Equipment System Integration Module

Core Positioning of Foxboro P0926GH (FBM230)
FBM230 (P0926GH) is a 4-port serial communication gateway (FDSI, Field Device System Integration Module) of Schneider Foxboro I/A Series DCS, used for connecting third-party serial devices to the DCS. P0926GH is the model code, and FBM230 is the module model.

I. Basic Information
Model: FBM230 (Part Number: P0926GH, Common Replacement: P0926GU)
Manufacturer: Foxboro (now part of Schneider EcoStruxure)
System I/A Series DCS System
Function： 4 isolated serial ports → DCS backplane bus protocol conversion
Form： Standard I/A rack-mounted installation， hot-swappable
II. Hardware Specifications (4 ports can be configured by software)
Port count： 4 independent isolated serial ports (PORT1~PORT4)
Interface type (per port can be selected by software)：
RS-232： Point-to-point， maximum 15m
RS-422： Differential point-to-point， maximum 1200m
RS-485： Differential point-to-multipoint， maximum 1200m， up to 64 devices / port
Communication parameters：
Baud rate： 300~115.2 kbps (software configurable)
Data bits： 7/8； Check： None / Odd / Even; Stop bit: 1/2
Electrical: 24VDC ±10%, power consumption approximately 7W
Environment: -20°C ~ +70°C, IP65
Data capacity：
Maximum 2000 DCI (Distributed Control Interface) data points
Supports analog (integer / floating point)， digital (single / packaged 32 points)

Core Functions (Protocol Conversion + Data Integration)
Multi-protocol Gateway
Pre-installed drivers： Modbus RTU master / slave， ASCII， custom serial protocol
Dynamic download of third-party device drivers (such as frequency converters， instruments， PLCs)
Flexible topology
Each port can be independently configured， and can simultaneously mix RS-232/422/485 devices
Supports point-to-point， point-to-multipoint， Modbus network
DCS data interaction
Data update fastest 500ms， suitable for process control real-time performance
High-speed communication between backplane bus and DCS control station， supports redundant configuration

Typical Application Scenarios
Instrument connection： Serial port instruments such as pH / conductivity / temperature / pressure → FBM230 → DCS
Frequency converter / soft starter： Modbus RTU driver → FBM230 → DCS control and monitoring
Third-party PLC/HMI： Serial communication → FBM230 → I/A DCS data interconnection
Remote I/O： RS-485 remote module → FBM230 → DCS centralized monitoring
