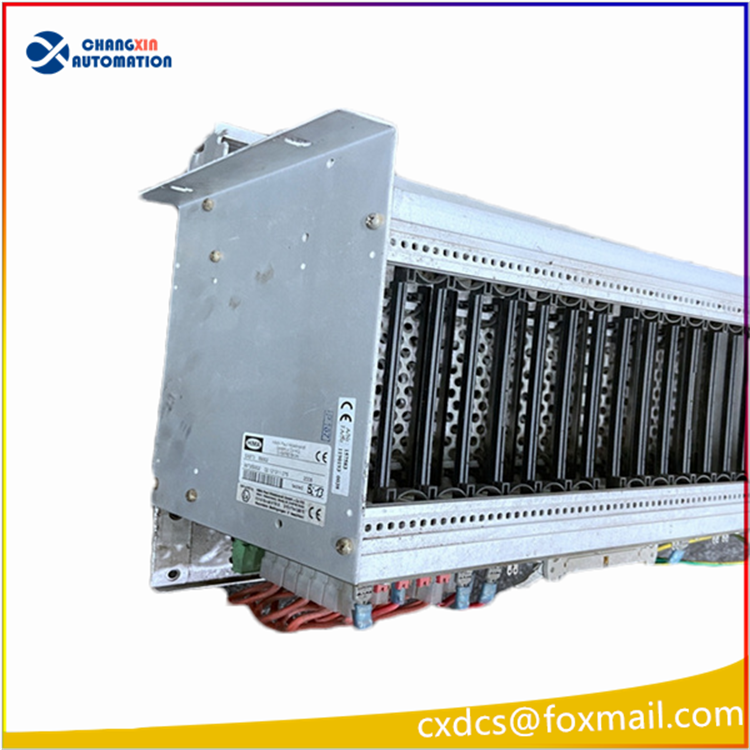

HIMA F-BASE RACK11 PLC Expansion Rack

Product Description

Model: F-BASE RACK11, Brand: HIMA. It is an 11-slot safety PLC expansion rack for HIMatrix F series, 19-inch standard subrack integrated with safety backplane bus and redundant power bus, compatible with HIMatrix F series safety I/O modules. It adopts pluggable card mounting structure, the built-in backplane realizes safe data communication between controller and I/O modules, certified to IEC61508 SIL3. It can work as main rack or expansion rack to expand I/O quantity of safety system. Modular design facilitates on-site assembly, maintenance and hot module replacement, serving as core mounting carrier for SIS safety instrumented systems.

Technical Specifications

• Model: F-BASE RACK11
• Brand: HIMA
• Type: 11-slot Safety PLC Rack (HIMatrix F Series)
• Slot Quantity: 11 module slots
• Form Factor: 19-inch rack
• Backplane Bus: HIMatrix safety backplane bus
• Power Bus: Dual redundant 24V DC backplane
• Max Total Power Consumption: 300W (full load with all 11 modules)
• Cooling: Passive natural air cooling
• Operating Temperature: 0℃ ~ +60℃
• Relative Humidity: Up to 90%, non-condensing
• Protection Class: IP20 (cabinet mounting)
• Safety Level: IEC61508 SIL3
• Vibration Standard: IEC60068-2-6, 10~500Hz
• Material: Anti-corrosion coated steel
• Mounting: 19-inch cabinet installation
• Features: Redundant power backplane, safety bus, pluggable modules, SIL3 certified, support main/expansion rack configuration

Application

For HIMA HIMatrix SIS safety instrumented system, to host F-series safety I/O modules:

1. ESD emergency shutdown systems for oil refinery and chemical plants
2. FSSS furnace safety protection systems for gas power plants and thermal power boilers
3. Safety interlock systems for offshore oil & gas platforms and LNG facilities
4. Safety control systems for coal chemical and pharmaceutical hazardous processes
5. Safety protection cabinets for compressors, furnaces and reactors Function: Offer 11 slots for safety input, output and communication modules. Safety signal transmission is realized via backplane bus to expand I/O capacity of SIS. Redundant power design reduces single-point power failure risk and ensures the whole safety system reliably execute interlock and emergency shutdown protection under hazardous working conditions.

Related Series Models

F-BASE RACK11 (11-slot rack) F-BASE RACK04 (4-slot rack) F-BASE RACK08 (8-slot rack) F-BASE RACK16 (16-slot rack) F-BASE RACK20 (20-slot rack)
