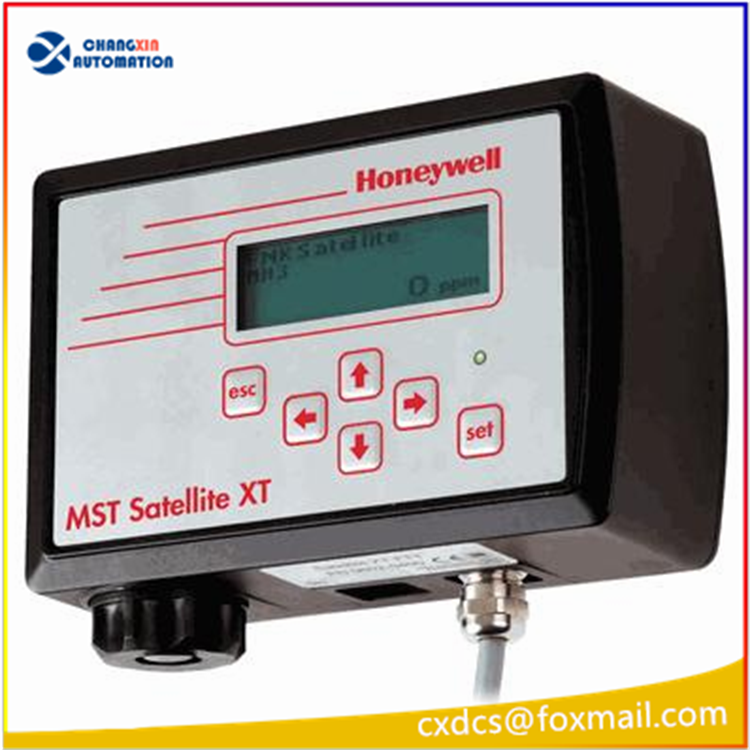

Honeywell 9602‑0205 Gas detection transmitter

Honeywell 9602‑0205 Gas Detection Transmitter

Product Full Name**: Satellite XT 4‑20mA/R Gas Detection Transmitter
Series: MST Satellite XT (Honeywell Analytics, Point Source Gas Detection for the Semiconductor Industry)

 Basic Information

– Model: 9602‑0205
– Output Interface: 4‑20mA Analog Output + R = Built-in 3-channel SPST Relay Output
– Detection Principle: Plug-in Electrochemical Intelligent Sensor (Sensor to be ordered separately)
– Typical Applications: Semiconductor Gas Chamber, VMB Valve Box, Equipment Chamber, Local Monitoring of Toxic / Corrosive / Combustible Gases (Point-of-Use Detection)

 Key Technical Parameters

Table

| Item | Parameter
| Power Supply | 12 – 24 VDC, maximum power consumption 1.8W
| Analog Output | 4 – 20mA; Fault 0 – 2mA; Maintenance 2.4 – 4mA; Alarm 2.8 – 4mA with 0.1Hz flashing signal
| Relay | 3-channel SPST; Contact capacity 250VAC / 30VDC, 2A
| Display Screen | 122 × 32 backlit LCD, touch-screen operation for menu, calibration, and configuration
| Operating Temperature | -20℃ ~ +40℃
| Protection Grade | Standard IP52, optional upgrade to IP65 version (model 9612-0205)
| Dimensions | 145 × 95 × 50 mm, weight approximately 1kg
