I. Overall Product Positioning

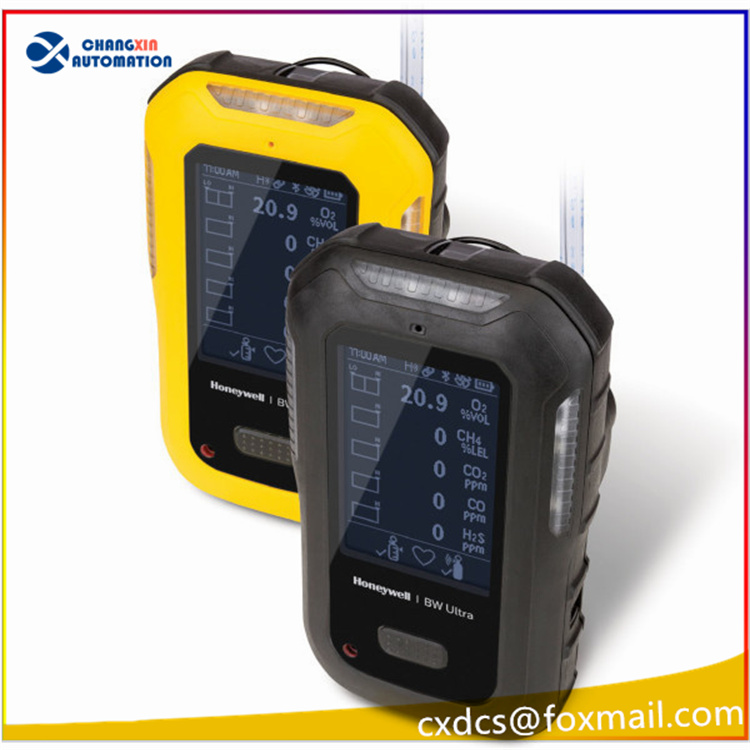

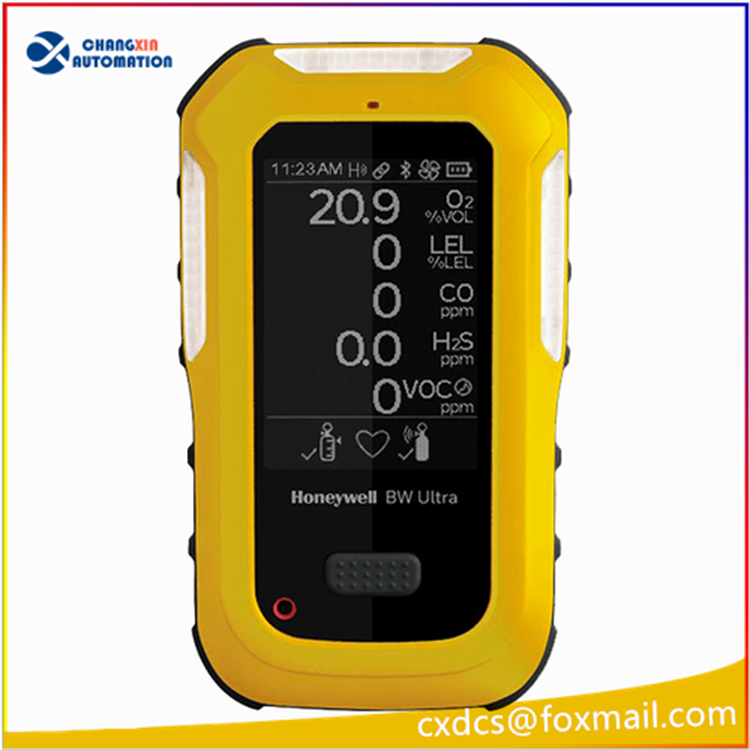

BW Ultra Portable Multi-Gas Detector (with Built-in Sampling Pump)
This is a high-end BW gas alarm instrument specifically designed for confined spaces, under the Honeywell brand. It can simultaneously detect 5 types of gases. It comes with an electric suction pump as standard, which can extract gas from pipelines, deep wells, and internal tanks for remote sampling. It is a mainstream equipment for safety detection in chemical, oil and gas, municipal sewers, and confined space operations.
Complete Model Segmentation Explanation: HU-X1W1H1M1Q1-Y-N
Segmented breakdown of the code meaning:
HU-X1: Product series = BW Ultra’s new-generation multi-gas detection instrument mainframe platform
W1: Equipped with an internal electric sampling pump (for remote gas sampling)
H1: Standard H₂S (sulfur dioxide) sensor
M1: Standard CO (carbon monoxide) sensor
Q1: Fifth gas: VOC (volatile organic compounds) (PID (photodetector) sensor)
Y: Body shell color: Yellow standard industrial model
N: Standard configuration, no additional customization options
✅ The entire machine can detect 5 types of gases:
O₂ (oxygen) + LEL (lower explosive limit) combustible gas + H₂S (sulfur dioxide) + CO (carbon monoxide) + VOC (volatile organic compounds)
Measurement Range and Resolution of Each Gas Table
Gas detection Measurement range Resolution
O₂ Oxygen 0 – 25% VOL 0.1% VOL
LEL Flammable Gas 0 – 100% LEL 1% LEL
H₂S Hydrogen Sulfide 0 – 100 ppm 0.1/1 ppm
CO Carbon Monoxide 0 – 2000 ppm 1 ppm VOC 0 ~ 1000 ppm 1 ppm
Core Hardware and Performance Parameters
1. Pump Sampling Capacity
Built-in electric vacuum pump, maximum sampling distance 23 meters (75 feet), suitable for deep wells, enclosed cabins, and remote gas extraction and detection in pipelines
2. Power Supply and Battery Life
3.7V rechargeable lithium battery
Continuous working time: 14-18 hours
Support for replacing the entire machine with batteries
3. Alarm System (Triple Alarm)
95dB high-pitched beeping alarm
Red and blue high-brightness LED lights flashing
Built-in vibration alarm (also detectable in noisy conditions)
Alarm thresholds can be customized
4. Storage and Communication
Data recorder: 8-hour shift, 15-second interval sampling, can store 45 days of detection data
Communication: Bluetooth BLE wireless, Mesh networking; can be connected to Honeywell Safety Suite software, download records on mobile phones/computers, remote personnel monitoring
TouchConnect: Wireless quick calibration, parameter configuration, no need for wiring base
5. Protection, Explosion-proof and Environmental Specifications
Protection level: IP66 / IP68 waterproof and dustproof, can be briefly immersed in water
Explosion-proof certification: Ex ia IIC T4 Ga (intrinsic safety explosion-proof), applicable to Class I Div 1 flammable and explosive hazardous areas
Operating temperature: -20°C ~ +55°C
Humidity: 5% ~ 95% RH, no condensation environment applicable
Machine body material: Anti-drop honeycomb structure shell, wear-resistant and scratch-resistant
6. Screen and Operation
Large-sized dot matrix LCD color display, multi-mode interface (restricted space duty mode, simplified reading mode)
Single-button minimalist operation of the entire machine, anti-misconfiguration design
Standard Factory Accessories
Sampling hose, various quick connectors, pump filter assembly, dust filter, charging component, screwdriver, complete set of manuals
Typical Application Scenarios
Petroleum refining and chemical processing, oil and gas station inspection
Municipal sewer, sewage wells, storage tank enclosed space entry before gas detection
Chemical workshop, painting workshop VOC concentration monitoring
Ship compartments, underground pipe galleries safety inspection
Environmental emergency gas leakage investigation
Warranty, Lifecycle & Market Trends (2026)
Original factory status: Active production mainstream model, not discontinued, produced in the Mexican factory
Official warranty: Whole machine 3-year warranty, 1-Series sensor design life 3-5 years
Price reference (RMB)
New original set: 7800 ~ 9200 yuan
New overseas stock overseas trade goods: around 7500 yuan
Series differentiation: Without pump model (without W1) price is lower, only diffusion type intake, unable to conduct long-distance sampling
