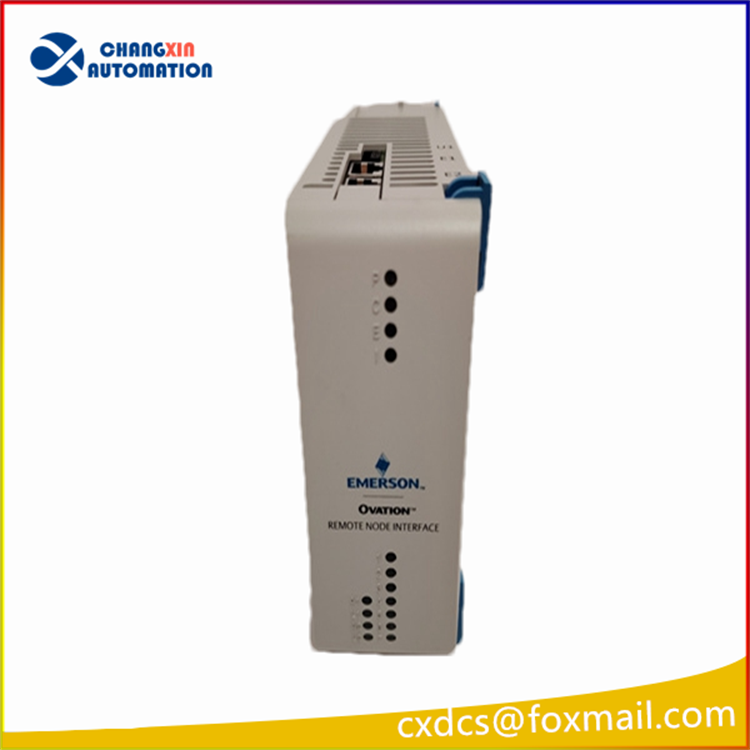

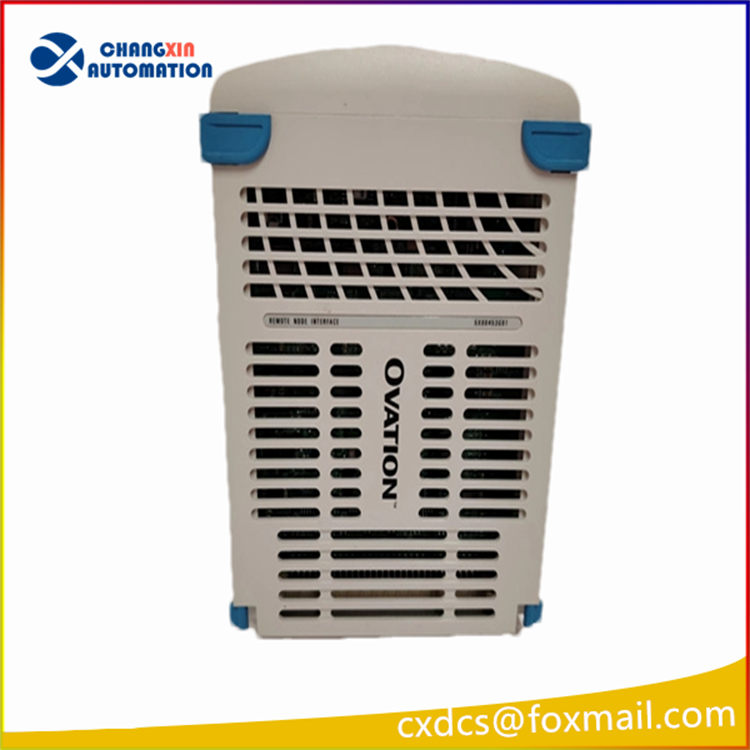

MERSON 5X00453G01 I/O Interface Module

I. Basic Information
Brand: EMERSON (formerly Westinghouse)
Model: 5X00453G01
System: Ovation DCS 5X series remote I/O interface module (IO Interface)
Redundant Pair Model: 5X00453G01, supporting 1:1 hardware redundancy deployment
Core Positioning: High-speed communication gateway between the controller and the remote I/O rack, enabling data interaction between the local control cabinet and the remote I/O station

 Core Hardware Parameters
Communication Interface: Dual RJ45 Ethernet ports (redundant communication links), Ovation dedicated fieldbus protocol
Backplane Interface: Compatible with the Ovation 5X series controller rack backplane, supporting hot swapping
Power Supply Method: 24VDC power supply from the rack backplane
Operating Environment
Operating Temperature: -40℃ ~ +70℃
Storage Temperature: -40℃ ~ +85℃
Humidity: 5%~95% RH (no condensation)
Electrical Isolation: Communication ports with 1500VAC electrical isolation, resistant to industrial electromagnetic interference
Protection Grade: IP20 after rack installation, the total machine weighs approximately 0.34kg
Fault Diagnosis: Panel status indicator lights, real-time monitoring of communication links, module operation, and redundant fault alarms

Main Functional Uses
As a remote I/O communication bridge for the Ovation distributed system, it forwards the control instructions issued by the controller to the remote I/O module, and simultaneously collects on-site AI/DI/AO/DO data and transmits it back to the controller.
It is commonly used for remote I/O expansion of large-scale DCS systems in thermal power plants, chemical plants, and metallurgy, to achieve high-speed transmission of process data between the local control cabinet and the remote equipment.
It supports redundant dual-network communication, automatically switching within milliseconds when a single link fails, ensuring uninterrupted operation of the unit interlocks and regulation loops.

Core Product Features
Redundant Safety Design: Supports dual-module + dual-network line redundant networking, eliminating the risk of system loss due to single-point communication failure, meeting safety standards of the power industry.
Real-time Deterministic Communication: Industrial-grade hard real-time bus, low data refresh delay, suitable for high-precision control scenarios such as valve regulation and turbine control.
Full Link Fault Diagnosis: Can locate network line faults, remote I/O station disconnections, and module hardware abnormalities, facilitating rapid troubleshooting during operation.
Hot Swap without Shutdown: Online replacement of modules does not require DCS system shutdown, significantly reducing equipment maintenance downtime.
Perfectly compatible with the entire Ovation 5X series I/O cards, can be expanded with various AI, AO, DI, DO, and pulse input modules.

Typical Application Scenarios
Thermal power plant boiler and turbine DCS control systems, remote I/O expansion of oil and gas refining and chemical plants, large-scale water treatment, metallurgy rolling and steel automation control systems.
