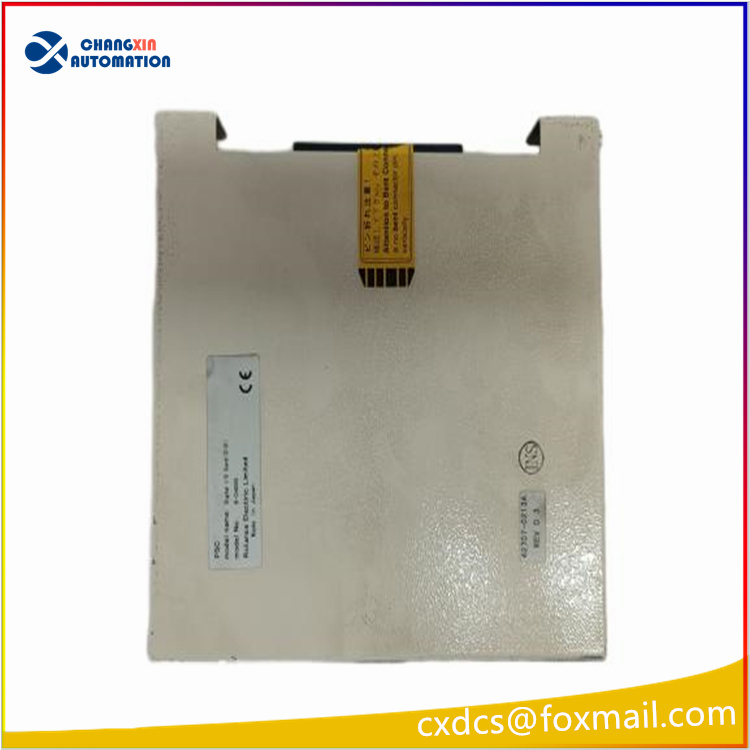

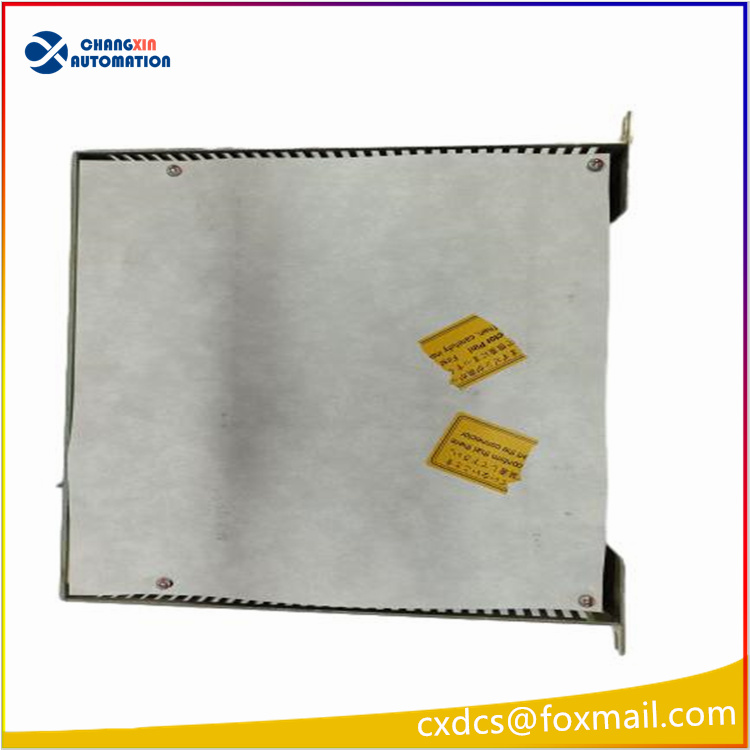

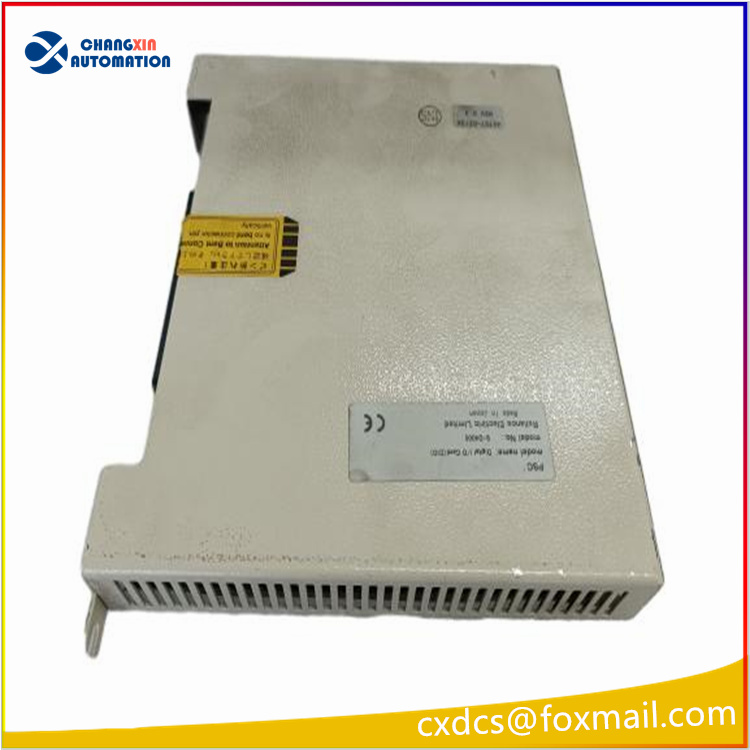

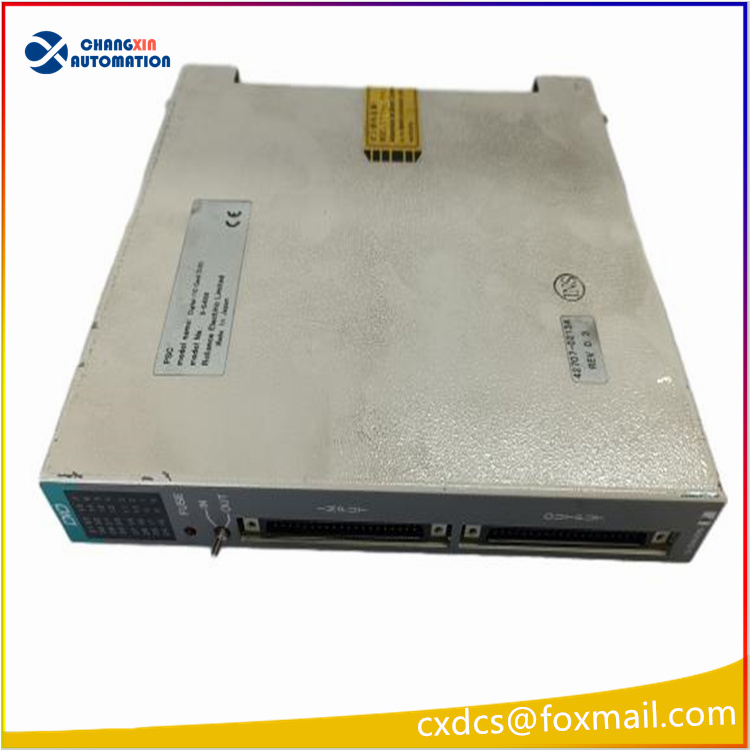

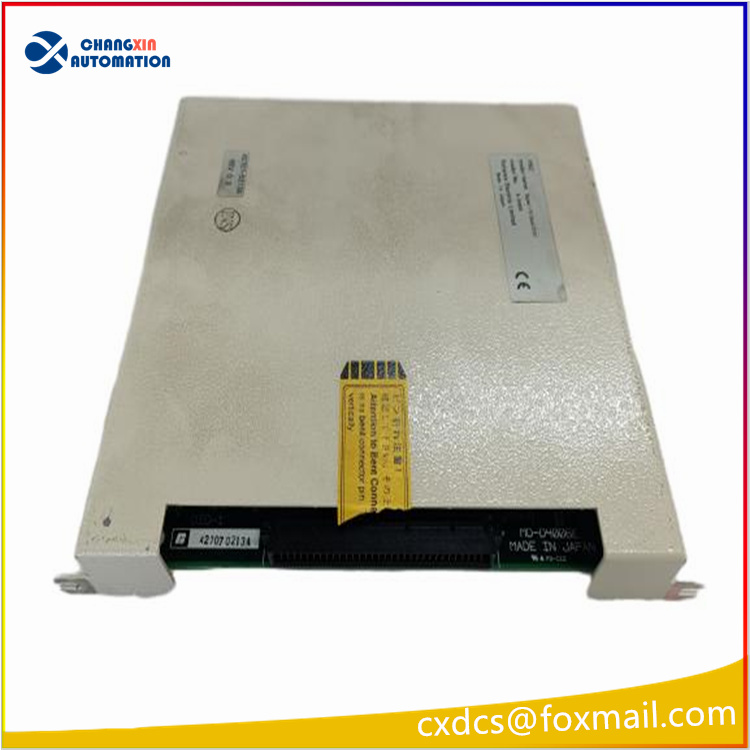

RELIANCE S-D4006 IGBT Driver Board

RELIANCE S-D4006 IGBT Driver Board
Product Description
RELIANCE S-D4006 is a dual-channel IGBT isolation driver board produced by Ryan Electric. It is used in conjunction with VZ7000 high-voltage variable frequency and high-power direct current transmission power units, responsible for the drive amplification, short-circuit protection, and operation status signal feedback of power IGBTs. It is a core triggering control board in the power circuit.Key Technical Parameters
1. Power Supply Input: 24VDC control power supply
2. Drive Channels: Dual-channel independent drive output
3. Isolation Method: Electrical isolation using high-frequency pulse transformers
4. Insulation Voltage Rating: 2500V AC for strong and weak electrical isolation
5. Drive Peak Current: ±8A per channel
6. Operating Temperature Range: 0℃ to +60℃
7. Protection Functions: Short-circuit protection for each IGBT, undervoltage in driving, overheat monitoring
8. Signal Feedback: Fault level signal returned to the main control unit
9. Compatible Power Devices: High-voltage high-power IGBT module

Product Performance
1. Dual-channel synchronous drive design, with balanced drive waveforms for both upper and lower bridges, effectively suppressing uneven voltage loss.
2. Microsecond-level short-circuit blocking protection. Once an IGBT breaks down, the direct connection is immediately cut off by the drive pulse, preventing the expansion of the fault.
3. Industrial thickened PCB and flame-retardant components, resistant to vibration and cabinet internal harmonic electromagnetic interference, enabling full-load stable operation around the clock.
4. On-board power supply, operation, and fault indicator lights, allowing for intuitive on-site fault determination.
5. Standard terminal connection structure, facilitating easy disassembly, replacement, and maintenance, with high efficiency.
6. Stable drive voltage amplitude, regular switching waveforms, reducing overall switching loss and electromagnetic radiation.
Application Fields
1. RELIANCE VZ7000 Series High-Voltage High-Power Frequency Converters
2. 7000 Series Four-Quadrant DC Speed Control Drive Devices
3. Main Drive for Metallurgical Rolling Mills, Mine Hoists, Large Water Pump and Fan Heavy-load Equipment
4. High-Power Rectifier Inverter Power Supplies, Industrial SVG Reactive Power Compensation Power Units

Same Series Models
1. WR-D4005: Single-channel low-power driver board
2. WR-D4007: Multi-channel high-power driver board
3. WR-D4008: Enhanced multi-channel driver module
4. S-D4004: Economical dual-channel basic driver board
Supplementary power supply boards: 45C990, 45C992, 45C993
