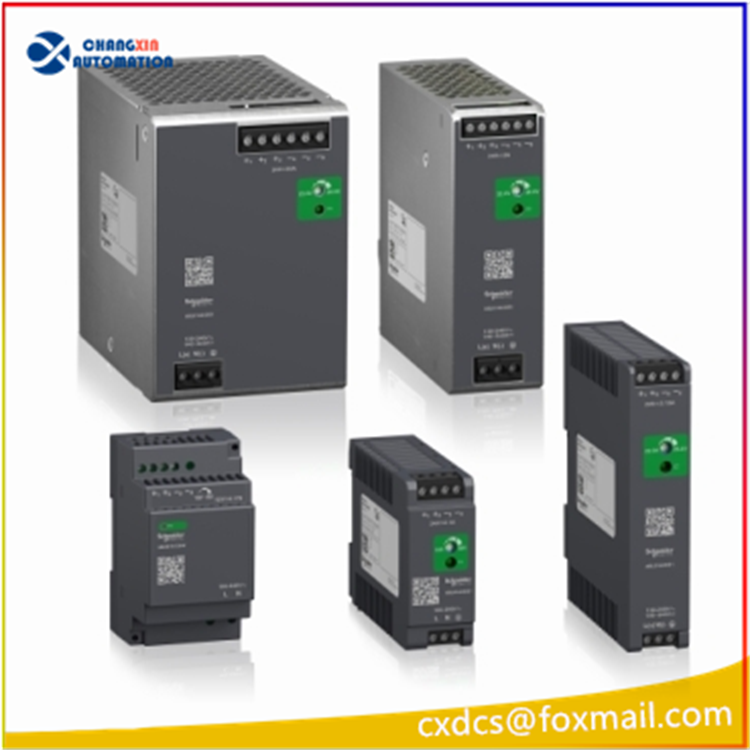

This model belongs to the Schneider PacDrive motion control series servo power supply unit. It is a dedicated DC bus power supply module for the old Lexium/PacDrive multi-axis servo system, mainly used in packaging, machine tools, and multi-axis linkage scenarios of assembly lines. The model segmentation meaning is as follows: PS = Power Supply; 5/10/20 represent the adapted drive expansion capacity; 400 represents the adapted 400V industrial grid; 00 is the standard basic version.
1. Core Electrical Parameters Table
Parameter item Specification details
Input voltage Single-phase / Three-phase universal AC 220~480V (compatible with industrial 400V power grid), frequency 48~62Hz
Built-in braking unit Internal 23Ω braking resistor, continuous braking power 200W, peak 28kW
DC bus output DC bus voltage range 270~680V; when three-phase input, continuous current 20A, 1s peak 40A; single-phase input, continuous 10A
Control auxiliary power supply Independent 24VDC output, maximum 13A, supplies power to servo drivers and peripherals
Expansion capability Up to 10 external DB-5 distribution boxes, series-connected for multiple-axis servo
Working loss Control circuit loss 25W, power unit loss increases by 15W/A according to load
Protection mechanism Overvoltage, overcurrent, overheat, short circuit self-lock protection, with built-in release threshold (810V shutdown, 830V enable)
Core Functional Features
Centralized bus power supply: A single module supplies the DC bus to multiple servo drives, eliminating the need for each drive to have its own rectification circuit, simplifying the wiring in the control cabinet and reducing energy consumption;
Integrated braking circuit: Built-in braking resistors allow the motor to convert its deceleration energy into local consumption, eliminating the need for an additional external braking unit;
Dual power supply output: One high-power DC bus drives the servo motor, and one independent 24V supplies power to PLC, sensors, and panels. One set of power supplies covers the entire machine’s power supply;
Flexible expansion for multiple axes: Expand the number of axes by using the DB-5 distribution box, suitable for small and medium-sized multi-axis production lines ranging from 5 to 20 axes;
Wide power grid compatibility: Supports 220V single-phase and 380/400V three-phase industrial power grids, allowing for direct deployment in new or old workshops.
Typical Application Scenarios
High-speed packaging equipment: Pillow packaging, vertical bag-making machines with multi-axis film movement and cutting linkage control;
Specialized CNC machines: Small milling and grinding equipment, robotic joints with multi-axis servo clusters for power supply;
Workstation on the production line: Sorting and transplanting, reciprocating positioning equipment with multi-axis synchronous drive;
Existing old equipment spare parts: Fault replacement parts for outdated PacDrive systems, the same model can be directly plugged in and replaced.
