Vibro-Meter RPS6U 200-582-200-011 VM600 Rack Power Module

I. Basic Information
Full part number: RPS6U 200-582-200-011
Brand: Vibro-Meter (now part of Meggitt/HBK, a high-end rotational machinery vibration monitoring brand)
System： VM600 / VM600 Mk2 unit vibration protection system， equipped with ABE04x 6U standard 19-inch rack
Product positioning： Rack-specific VME backplane high-power power supply， providing unified power supply for all monitoring cards (MPC4， IOC4T， CPU card， etc.) in the entire rack， supporting dual redundant hot-swappable
Numbering segmentation explanation
RPS6U： Rack Power Supply 6U rack power supply
200-582： Power series base number
200： AC input version (distinguishing 500 = DC input， 600 = universal AC/DC input)
011： Hardware version， protection and terminal configuration

Electrical Input Specifications (suffix 200 = AC input model)
AC input： 85-264VAC 50/60Hz， full-range adaptive
Maximum input power： 300W， rated power of the entire unit
Compatible with power plants， gas turbines， compressors standard 220VAC control power supply

Multiple standard outputs (supply power to all cards on the VME backplane) Table
Output Voltage Rated Output Current Usage
+5VDC 35A For digital logic, CPU, and communication chips
+12VDC 6A For analog signal conditioning, sensor power supply
-12VDC 2A For vibration signal amplification circuit
Stabilization accuracy: Full load ≤ ±0.2%, ripple ≤ 50mVpp, suitable for high-precision vibration acquisition
Full protection: Overvoltage OVP, Overcurrent OCP, Short-circuit limiting current, Overheating OTP, Input undervoltage lockout

Core Hardware Characteristics
6U rack standard plug-and-play
Installed in the front power slot of the ABE04x rack, dual high-current connectors connect to the backplane VME bus; size 6U/12TE, depth 187mm, total weight approximately 2.1kg
Redundant parallel + hot-swappable
The rack can simultaneously install 2 RPS6U parallel redundant units, with one unit failure, the other unit can continue to carry load without interruption; during operation, it can be directly plugged and replaced, and the unit does not need to be shut down for maintenance, meeting the high availability requirements of API670 rotating machinery protection
Panel status indicator lights
POWER (input normal), OK (output normal), FAULT (overheating / short circuit / overcurrent alarm), fault signals can be uploaded to the upper-level monitoring
Strong industrial EMC / earthquake resistance
Complies with IEC68-2 vibration and shock standards, suitable for combustion engines, steam turbines, large compressors, and strong electromagnetic cabinets in the environment

Differentiation of the same series models (spare parts must not be mixed)
Table
Full part number Input type Applicable scenarios
200-582-200-011 AC 85~264V General factory / power plant 220VAC power supply (this model)
200-582-500-013 DC 18~145V Only DC 110/125VDC control power cabinet
200-582-600-013 AC+DC wide range AC/DC dual input redundant cabinet

associated equipment (you previously queried the entire power plant system)

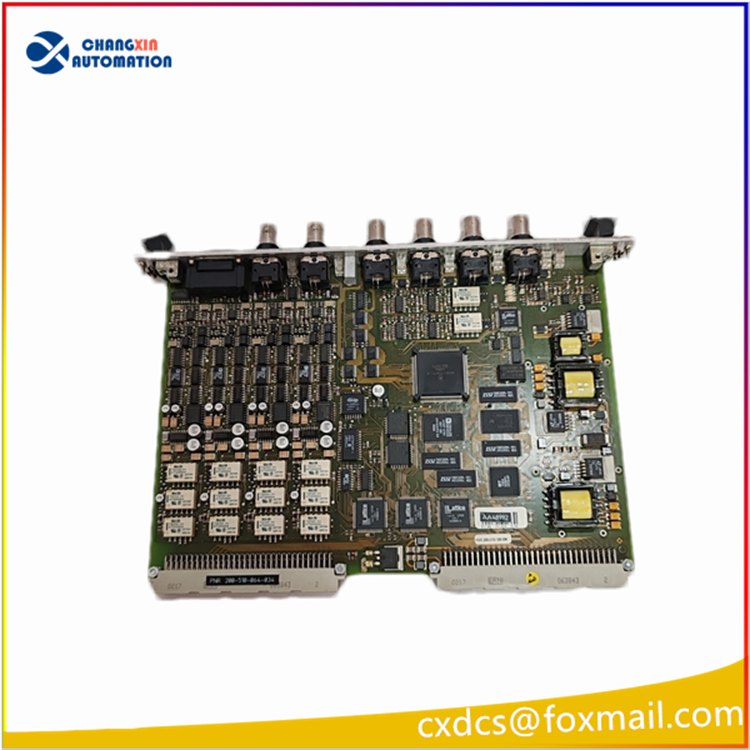

VM600 MPC4 vibration monitoring card (rack core acquisition board)
GE Mark VIe 342A3648P960W28 gas turbine main control power supply
ABB AC800PEC excitation system + 3BUS208796-001 power conditioning board
REC670/REF615E high-voltage protection IED
RH102AN IEC61850 industrial switch, Prosoft PTQ-PDPS DP communication card
Seven, application scenarios
Gas turbine, steam turbine, large air compressor, compressor unit vibration protection
Power plant combined cycle, thermal power, LNG, metallurgical rolling equipment condition monitoring
Equipped with Mark VIe, AC800PEC main control units to achieve vibration interlock trip protection
