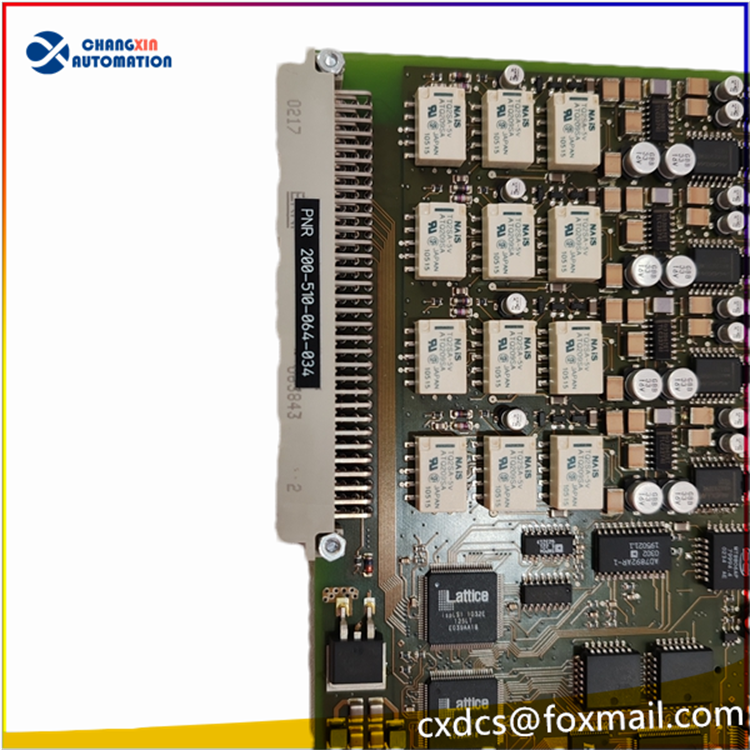

VIBRO-METER VM600 MPC4 200-510-064-034 Mechanical Vibration Monitoring

VIBRO-METER VM600 MPC4 200-510-064-034 Mechanical Vibration Monitoring

I. Product Description
Brand: VIBRO-METER (a high-end rotating machinery vibration monitoring brand under the Swiss Meggitt Group)
Product Series: VM600 Rack-mounted Mechanical Protection System MPS
Board Card Model: MPC4 (Machine Protection Card 4-channel Mechanical Protection Mainboard)
Complete Original Factory Order Number: 200-510-064-034 (SIL2 safety certification version, dedicated for power plant gas turbines / steam turbines)
Required Sub-boards: IOC4T I/O Output Interface Card, MPC4 only performs signal acquisition and calculation, alarm relays, 4-20mA analog output are all implemented by IOC4T, used in pairs and inserted into ABE04x rack

Channel Hardware Specifications (Core Collection Capability)
1. Dynamic Measurement Channels (4 independent programmable channels)
Each channel is compatible with all types of rotating machinery sensors, with onboard built-in sensor power supply:
Eddy Current Probe (Relative Vibration of Shaft, Thrust Shaft Displacement, Gap Voltage)
Piezoelectric Acceleration Sensor (Absolute Vibration of Shell)
Electromagnetic Speed Sensor
Supported Measurement Parameters: Peak-to-peak Shaft Vibration, Shell Vibration Velocity, Eccentricity Smax, Axial Thrust Displacement, Cylinder Expansion, Dynamic Pressure; Built-in Integration / Differentiation, Digital Filtering, Order Tracking (Amplitude + Phase), Gap Voltage Monitoring
2. Speed / Phase Channels (2 channels)
Compatible with Eddy Current Phase Probes, Magnetic Pulse Sensors, TTL Level; Supports fractional speed ratios, used for speed adaptive alarm, vibration order analysis, phase fault diagnosis
3. Panel Interface
Front 6 BNC Buffered Outputs: Can be externally connected to oscilloscopes to read raw sensor waveforms; 7 LED Status Lights (Operation, Fault, Channel Alarm, Hazard Shutdown, System Fault); Supports hot-swappable maintenance

Safety and Certification (Exclusive to 200-510-064-034)
SIL 2 Safety Integrity Level Certification (IEC 61508), the last digit of the order number 034 corresponds to the SIL safety version; The standard version has the last digit 014, which cannot be mixed in the unit isolation protection circuit
Whole Machine BIST Self-Test: Power-on / Real-time Channel Break, Sensor Short Circuit, Backplane Communication Failure Self-test, when a fault occurs, force all relays to be in a safe shutdown state
Complies with power plant explosion-proof EMC, CE, ATEX industrial standards, suitable for strong electromagnetic cabinet environments of gas turbines, steam turbine generator sets

Signal Output and Communication (Coordinated with IOC4T)
Alarm Relays: 4 programmable relays (Warning / Hazard Shutdown / Channel Fault / System Fault), can be directly connected to the unit ETS isolation system
Analog Output: 1 4-20mA per dynamic channel, upload to DCS/PLC to display real-time values of vibration and displacement
System Bus: Parallel bus inside the VM600 rack, multiple MPC4s share the backplane; Ethernet communication connects to VM600 MPSx upper-level software, supports fault recording, trend curve storage
Maximum Expansion: Up to 12 groups of MPC4 + IOC4T in one VM600 rack, totaling 48 dynamic vibration monitoring channels of Meggitt Sensing Systems

Electrical and Environmental Parameters
Power Supply: Unified 24VDC power supply on the rack backplane
Operating Temperature: -20℃ ~ +85℃, without forced air cooling in the cabinet, stable operation
Installation: Standard 6U European rack, ABE042/ABE044 rack plug-in installation Accuracy: Measurement error ≤ ±0.75%, millisecond-level response speed, meeting the requirements for rapid tripping of the unit in case of overspeed or excessive vibration
Six, Typical Application Scenarios
Thermal Power / Combined Cycle: Gas turbine, steam turbine, generator main shaft vibration, thrust disk displacement safety protection
Petroleum and Chemical Industry: Large centrifugal compressors, reciprocating units, booster pumps online protection
Metallurgy / Mining: Large rolling mills, mine hoist high-speed rotating shaft condition monitoring
Marine Power: High-power turbine propulsion unit vibration interlock protection
