I. Product Basic Information
Brand: Vibro-meter (a division of Meggitt, now part of Borge Group)

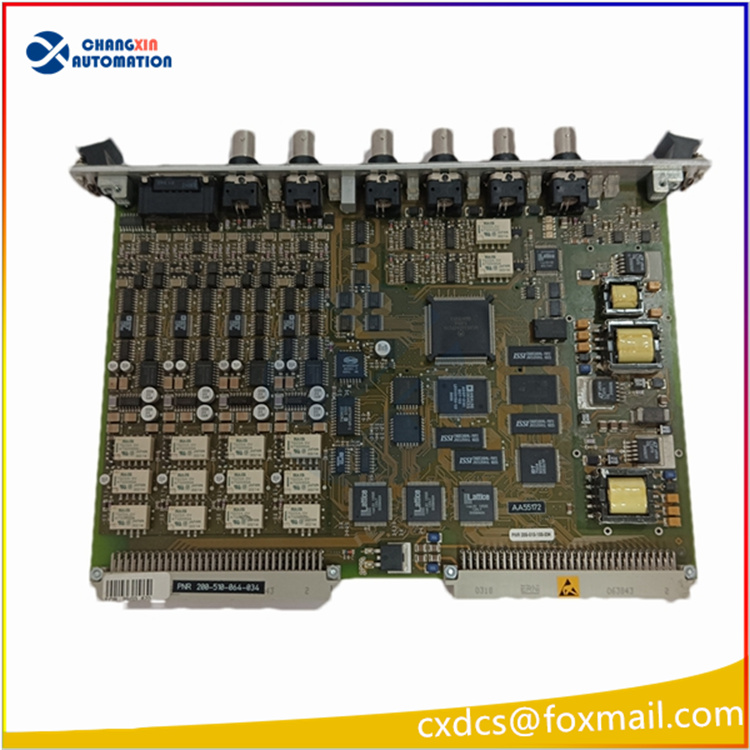

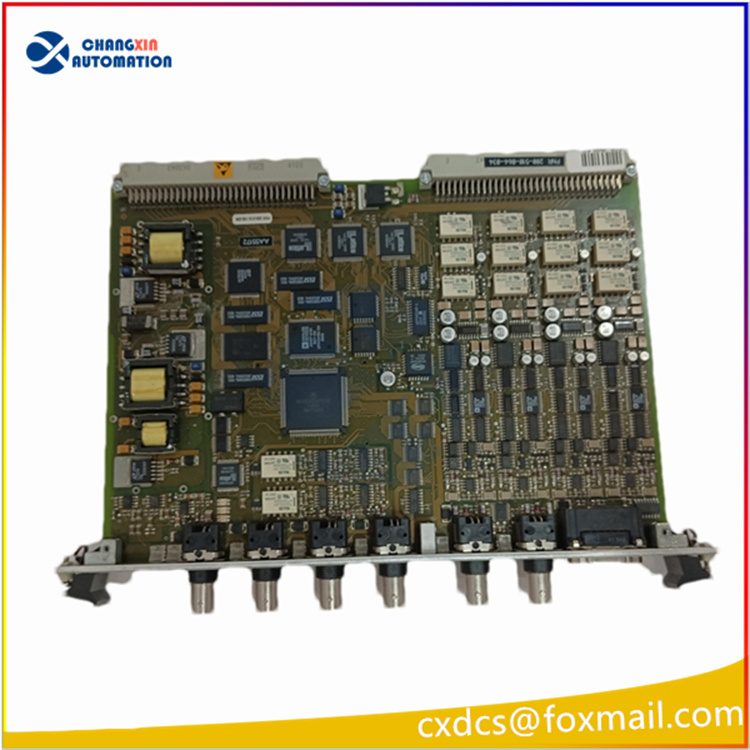

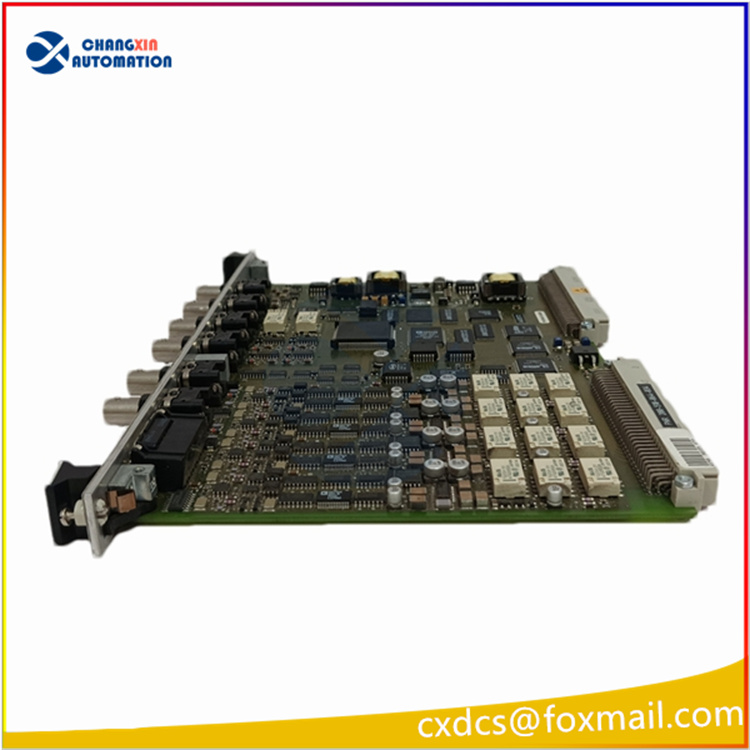

Model: VM600 MPC4 Order Code: 200-510-100-034
Positioning: Core signal processing card for the VM600 rack-mounted rotating machinery protection system (MPS), must be used in pairs with the IOC4T I/O interface card to meet API 670 turbine protection standards; this model supports SIL2 safety certification.
Core Channel Configuration
4 dynamic signal input channels (BNC front-end interface)
Compatible with three types of sensors:
– Eddy current displacement probes: shaft vibration, axial displacement, eccentricity, differential expansion monitoring
– IEPE accelerometers and velocity sensors: bearing housing absolute vibration monitoring
Frequency acquisition range: 0.5 Hz to 10 kHz; 16-bit ADC high-precision sampling, maximum sampling rate 100 kHz; supports programmable wide/narrow band filtering, integration/differentiation, FFT spectral analysis, and order tracking
2 speed (keyphasor) input channels
Supports electromagnetic, eddy current, and TTL-type tachometric sensors for speed measurement, phase analysis, and vibration order tracking
Main Functions
Rotating Machinery Safety Protection
Real-time acquisition of vibration, displacement, and speed signals; customizable warning and danger threshold levels with delay hysteresis; triggers interlock shutdown via relay output when limits are exceeded, protecting critical equipment such as turbines, compressors, fans, and gas turbines
Online Monitoring and Diagnostic Functionality
Outputs process parameters including vibration peak-to-peak, RMS, peak values, and gap voltage; supports early fault analysis for bearing faults, rotor imbalance, misalignment, etc.; BNC front-end allows direct access to raw sensor buffered signals for convenient on-site oscilloscope debugging
Rich Signal and Alarm Outputs
When paired with the IOC4T card: 4 channels of 4–20 mA / 0–10 V analog outputs, 4 user-programmable alarm relays, and 1 system status relay; supports alarm logic combining AND/OR/majority voting operations
System Features
Supports hot-swapping—modules can be replaced online without system shutdown, with automatic parameter reconfiguration
Front-panel LED indicators: power, operation, channel fault, alarm status
Communication: Ethernet, Modbus RTU/TCP, Profibus DP; compatible with DCS, SCADA, and MPSx upper-level configuration software from Meggitt Se…
Electrical and Environmental Parameters
Power supply: 24 VDC, power consumption approximately 5.5 W
Operating temperature: -20°C to +60°C; storage temperature: -40°C to +70°C
Protection rating: IP20 (for cabinet installation only)
Installation: Compatible with VM600 ABE04 series standard racks
Certifications: CE, UL, CSA, SIL2, API 670
Typical Application Scenarios
TSI safety monitoring systems for rotating equipment such as thermal/hydroelectric turbines, gas turbines, compressors, blowers, pumps, and metallurgical rolling mills; widely used in power generation, petrochemical, coal chemical, and steel industries
Required Accessories
Must be used in conjunction with the rack: IOC4T I/O interface card, responsible for extending relay, analog, and system bus communication functions; MPC4 performs only signal acquisition and processing and has no independent I/O output capability
