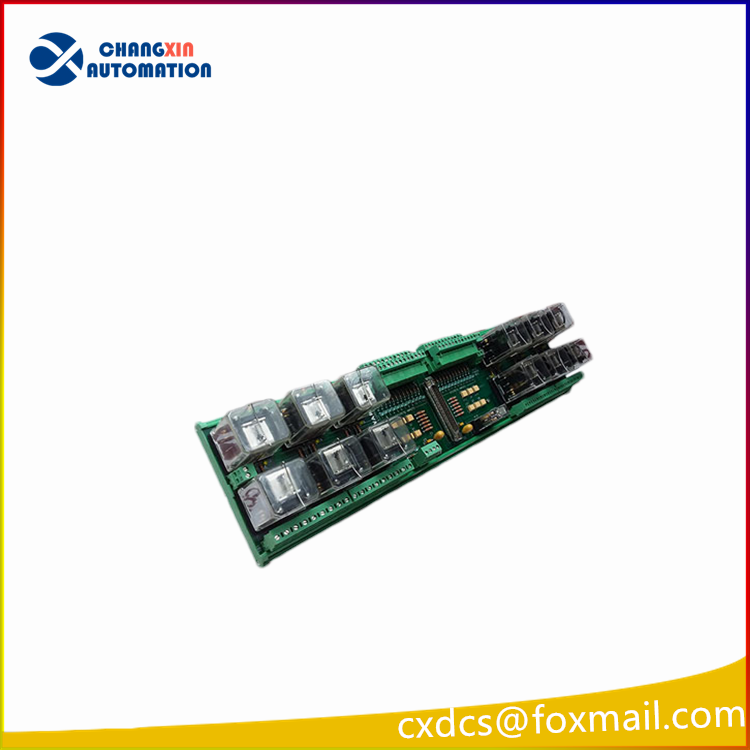

Woodward 5441-693 I/O Terminal Module

Product Description

Woodward 5441-693 is a relay-type discrete I/O terminal module for Woodward turbine control systems. It is designed for gas turbine and steam turbine control units to acquire digital on/off signals and drive field devices via relay outputs. The module integrates multiple optically isolated digital inputs and built-in relay output channels, with terminal blocks directly connected to field sensors, solenoid valves, alarm loops and interlock equipment. It has per-channel LED status indicators and millisecond-level time stamping for input signals to capture turbine interlock events rapidly. DIN rail mounting with electrical isolation between inputs and outputs protects the main controller from field surge and interference. This model is end-of-life from OEM and supplied as spare parts for existing turbine units.

Technical Parameters

• Model: 5441-693
• Type: Discrete Relay I/O Terminal Module
• Brand: Woodward
• Digital Input: Opto-isolated discrete input, 24VDC signal sensing
• Digital Output: Built-in relay contact output
• Signal Update Time: 5ms
• Time Stamp Resolution: 1ms
• Isolation: Channel optical isolation, module-to-chassis isolation
• Power Supply: 24VDC
• Mounting: DIN rail mount
• Indication: Per-channel LED status indicator
• Operating Temperature: -20℃ ~ +70℃
• Features: Event time stamping, surge protection, interlock signal acquisition & output
• Product Status: OEM EOL, industrial spare part

Product Applications

1. Discrete interlock signal acquisition and relay output for Woodward governor control systems of gas turbines, steam turbines and generator sets.
2. Turbine BMS burner management, emergency shutdown ESD loops, alarm signal collection and actuation.
3. Power & oil/gas plant control systems, driving field solenoid valves, indicator lamps and alarm relays.
4. Maintenance, spare parts replacement and control system retrofitting for legacy Woodward turbine control equipment.
5. Unit protection interlock logic; high-resolution event sequencing for post-fault analysis.

Series Models

• 5441-693: Standard discrete relay I/O terminal module
• 5441-691: Digital I/O board of same series, transistor output type
• 5441-695: Extended-channel relay I/O module
