Product Overview

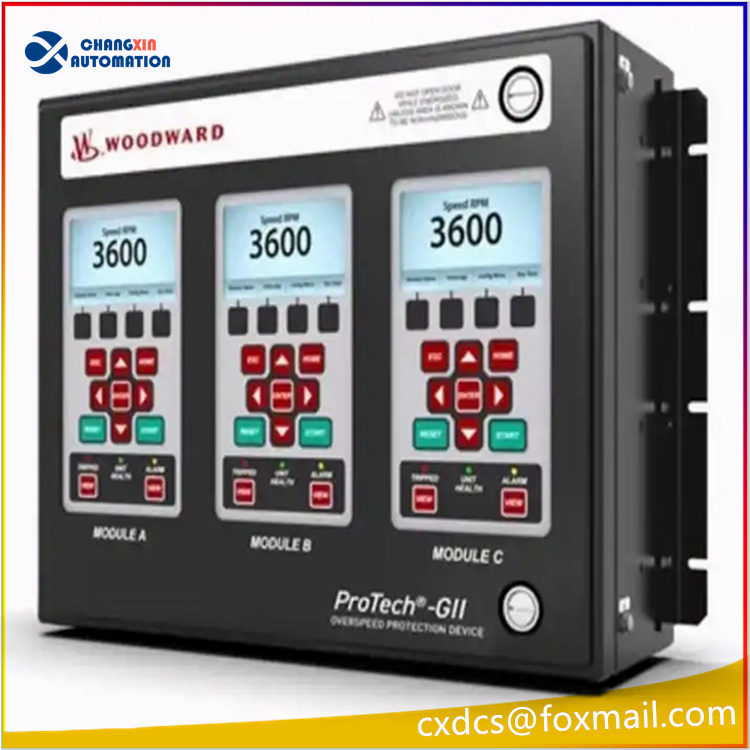

Woodward 8237-1246 is an original bulkhead-mounted overspeed protection relay of the Woodward ProTech‑GII series, serving as a high-level safety protection device for industrial turbine units. Specially designed for steam turbines, gas turbines, hydro turbines, generator sets and high-speed rotating power equipment, it adopts a triple independent redundant monitoring architecture with 2-out-of-3 voting logic. It accurately detects equipment overspeed, over-acceleration and speed abnormality, triggering emergency trip interlock to prevent unit runaway and severe equipment accidents.
Compatible with MPU magnetic pickup speed sensor signals, the device integrates high-precision speed monitoring, acceleration judgment, online self-diagnosis and automatic overspeed testing functions, fully complying with SIS safety system specifications for high-risk industries such as power, petrochemical and metallurgy. With an IP56 industrial bulkhead enclosure, it features strong vibration and electromagnetic interference resistance, supporting 24/7 continuous operation. It is an essential original component for maintenance replacement, system upgrading and safety reconstruction of turbine overspeed protection systems.
2. Technical Parameters
|
Parameter
|
Specification
|
|
Model Number
|
8237-1246
|
|
Product Series
|
ProTech‑GII Industrial Overspeed Protection System
|
|
Brand & Origin
|
Woodward, Original USA Imported
|
|
Mounting Type
|
Bulkhead Wall Mount
|
|
Safety Architecture
|
3 Independent Channels, 2oo3 Safety Voting Logic
|
|
Applicable Equipment
|
Steam turbine, gas turbine, hydro turbine, generator, high-speed rotating units
|
|
Input Signal
|
Compatible with standard MPU magnetic pickup speed sensor frequency signal
|
|
Measurement Accuracy
|
±0.1% high precision speed sampling
|
|
Response Time
|
＜10ms ultra-fast interlock response
|
|
Power Supply
|
90–264VAC / 47–63Hz or 100–150VDC wide voltage
|
|
Power Consumption
|
≤30W
|
|
Protection Grade
|
IP56 dustproof & waterproof
|
|
Operating Temperature
|
-10℃ ~ +60℃ industrial wide temperature range
|
|
Vibration Resistance
|
10~500Hz vibration adaptability, 0.04G²/Hz vibration tolerance
|
|
Communication Interface
|
Ethernet, USB for debugging & data upload
|
|
Core Functions
|
Speed monitoring, over-acceleration protection, auto overspeed test, channel self-diagnosis, fault interlock shutdown
|
|
Dimension
|
330×486×153mm
|
3. Product Features
-
Triple Redundant High-level Safety Architecture: Equipped with three fully independent speed acquisition and operation channels and industry-standard 2oo3 voting logic, avoiding false interlock or refusal action caused by single-channel faults, meeting high integrity requirements of power plant SIS safety systems.
