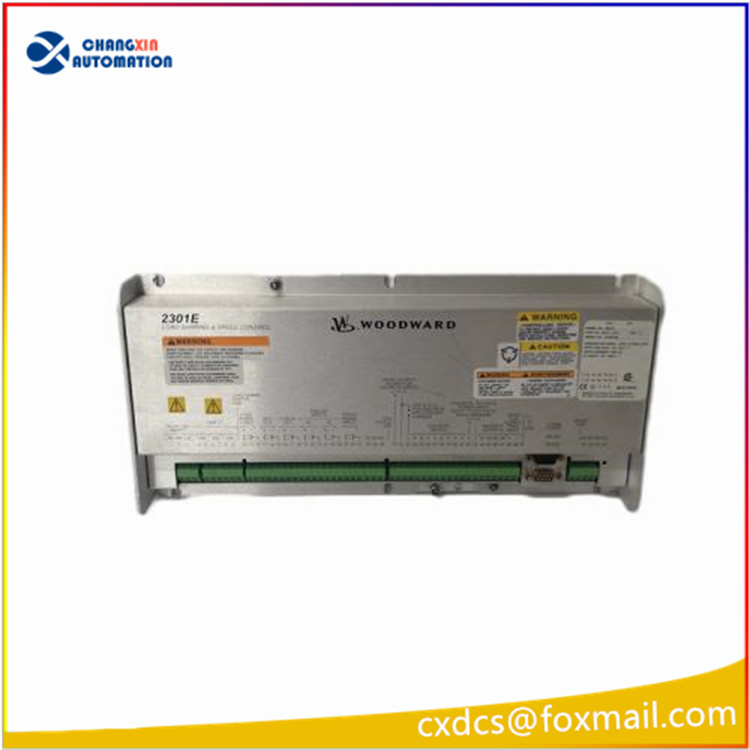

WOODWARD 8273-1011 (2301E series) Digital Speed Control Controller

WOODWARD 8273-1011 (2301E series) Digital Speed Control Controller
I. Product Basic Information
Brand: Woodward (USA)
Series： 2301E Generator Set Speed and Load Sharing Controller
Full Model Name: 2301E 8273-1011
Core Positioning: For diesel/gasoline engines， turbine-driven generator sets， to achieve precise speed adjustment for individual units and balanced load distribution for multiple units in parallel connection. It can be equipped with AVR excitation device to automatically synchronize voltage， frequency， and phase before grid connection.

Core Hardware Electrical Parameters
Power Supply Specification: Standard DC 24V direct current power supply
I/O Channel Configuration
Analog Input: 2 configurable 4-20mA/0-10V voltage signals (load, temperature collection)
Analog Output: 1 actuator drive output (supports 4-20mA, 0-200mA, PWM three drive modes), capable of directly driving fuel actuators
Switching Input: 8 passive digital inputs (remote start-stop, fault interlock, mode switching)
Relay Output: 4 isolated relay alarm outputs (over-speed, fault, grid connection status alarm)
Speed Collection: Compatible with magnetic-electric MPU speed sensor, real-time collection of generator speed signals
Communication Interface: Independent RS-232, RS-422 dual serial ports, support Modbus RTU protocol, can be connected to DCS/SCADA system for remote monitoring and parameter download.
Environmental Parameters: Working temperature -40℃ ~ +85℃, protection level IP20, suitable for Class1 Div2 hazardous area control cabinet installation.

Core Control Functions
1. Speed Control
Supports isochronous mode (Isochronous): Single machine independent operation for constant speed control;
Supports droop mode (Droop): Multi-generator parallel operation for stable frequency regulation, speed control accuracy can reach ±0.25% FS.
2. Load Sharing Function
When multiple 2301E controllers are networked, they automatically distribute the total active load, avoiding overload of a single generator and uneven load distribution, ensuring the stability of the grid connection system.
3. Automatic Synchronization Control
Can output bias adjustment signals, combined with AVR excitation regulator, to complete automatic matching of frequency, voltage, and phase before grid connection, achieving safe synchronous grid connection of the generator set.
4. Safety Protection and Fault Diagnosis
Built-in over-speed protection, stall, actuator failure, signal breakage, etc. multiple interlock protection;
Local LED status indicator + event fault record, with timestamp storage, can trace tripping and alarm history;
Supports critical speed avoidance, remote load adjustment, soft start speed regulation and other advanced control logic.

Software Configuration and Compatibility
Companion debugging software: Woodward Watch Window, can perform online parameter setting, curve optimization, and fault log reading;
Downward compatible with 2301A, 2301D old controllers, installation size, wiring definition are consistent, can be directly replaced and upgraded, no need to modify the on-site cabinet wiring.

Typical Application Scenarios
Parallel frequency regulation and load distribution control of diesel/gasoline self-owned power generation units in power plants;
Speed regulation and grid connection control of emergency backup power generation units on offshore platforms and refining plants;
Speed regulation of small steam turbine generator sets and power control of waste heat power generation systems;
Multi-generator collaborative load scheduling scenarios in distributed energy power stations.
