Woodward PEAK200 8200-1508 Steam Turbine Digital Speed Control Controller
I. Product Brief Description

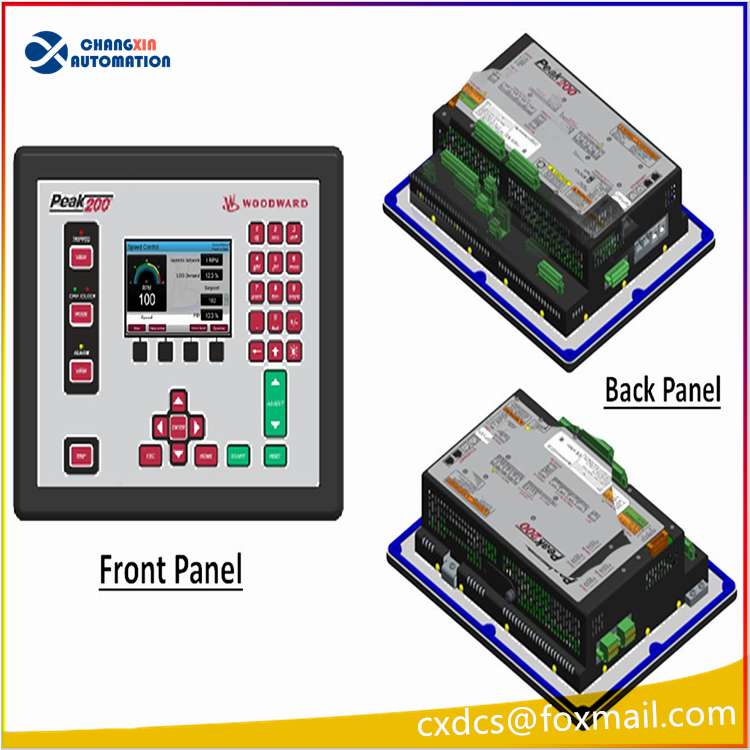

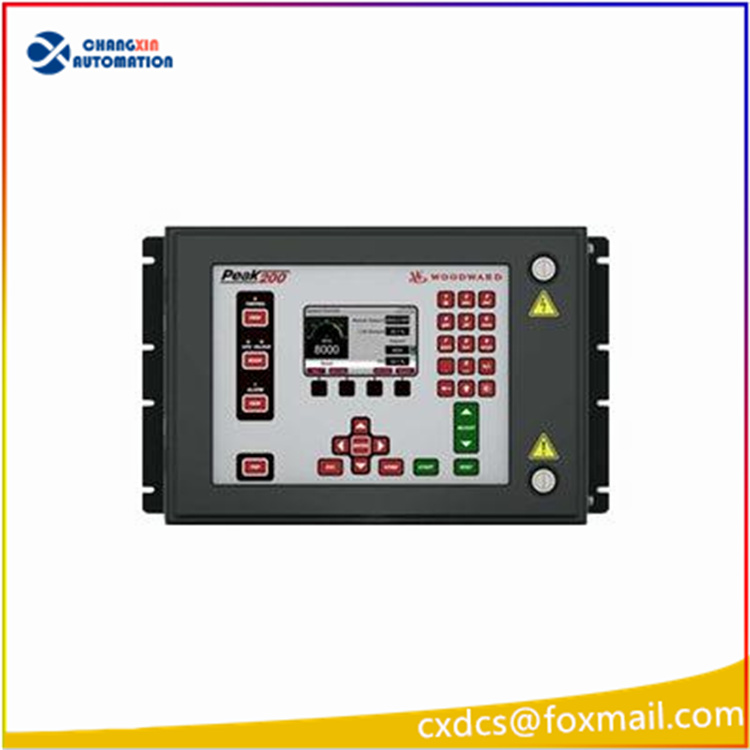

A small single-valve industrial steam turbine dedicated integrated digital speed control protection device, iteratively upgraded from PEAK150 controller; integrates a color human-machine interface, speed regulation, load control, complete unit safety trip protection logic. 8200-1508 is the North American explosion-proof configuration version, with Class1 Div2 hazardous area certification, wall-mounted enclosure installation structure, suitable for HVAC waste heat steam turbines and small industrial flatting machines integrated control scenarios.
Key Technical Parameters Table
Parameter Item Technical Indicator
Power Supply Specification (HV High Voltage Version) 88~264V AC / 90~150V DC; Maximum power consumption of the entire machine is 45W
Speed Acquisition Channel 2 redundant magnetic resistance speed measurement probes for input, frequency range 100~35000Hz
Digital Switch Quantity Input Standard 8-channel passive contact input; can be expanded to 24 channels via LinkNet bus
Analog Input 4 channels of 4~20mA standard current signal input
Actuator Drive Output 1 servo valve drive, supports two output ranges of 4~20mA / 0~200mA
Relay Passive Contact Output 4 C-type relay contacts, 24VDC/2A load capacity
Analog Output 3 independent 4~20mA process variable output
Communication Interface Dual network ports: Modbus TCP Ethernet, RS485 Modbus RTU serial port
Speed Control Accuracy ≤±0.5% of rated speed
Multi-machine Parallel Load Distribution Accuracy ≤1%
Display Screen Color LCD touch key integrated panel, local parameter configuration, curve viewing
Explosion-proof Certification North American Class I Division 2 flammable and explosive area use certification
Installation Method Cabinet bulkhead embedded (Bulkhead mount)
Operating Environment Temperature -20℃ ~ +70℃
Protection Grade IP30 (cabinet installation)
Storage Temperature -40℃ ~ +85℃
Overall Machine Weight Approximately 1kg
Firmware Function Built-in steam turbine simulation debugging, real-time trend curve, first occurrence trip fault memory
Core Product Performance
Basic Regulation: Speed PID closed-loop regulation, unit load control, steam inlet pressure / exhaust pressure cascade regulation, suitable for various load conditions of driven pumps, fans, compressors, etc.;
Start/Stop Logic: Fully automatic program start/stop, manual start/stop mode, can automatically avoid rotor critical speed range to prevent resonance damage to shaft system;
Complete Safety Protection: Over-speed trip, bearing temperature high, lubricating oil pressure low, vibration over-limit, exhaust pressure abnormal and other interlocking shutdown protection, with first occurrence fault memory function;
Redundant Design: Dual-channel speed probe redundant acquisition, single-channel speed measurement failure does not affect the normal operation of the unit;
Event Storage: Massive alarm, trip, operation event records, supports historical data recall and retrieval;
Remote Maintenance: Ethernet access to factory DCS system, can remotely read/write parameters, monitor conditions, diagnose faults;
Hardware Corrosion Resistance: Internal circuit board with three-proof coating, able to withstand oil and moisture industrial harsh environment;
The entire machine can directly be compatible with and replace the old PEAK150 series, cabinet opening and wiring definitions do not need to be modified for renovation and replacement.
Application Domains
HVAC residual heat power generation system for HVAC heating, ventilation, and air conditioning;
Small industrial turbines, expansion machines, speed and load control in chemical and refining plant areas;
Grid-speed regulation and island operation stable pressure regulation for small power steam turbine generators in self-owned power plants;
Overall control of industrial-driven steam turbines for pumps, fans, air compressors;
Measurement and control of steam turbines in hazardous environments of oil and gas stations, explosion-proof plant areas.
Main Ordering Models of the PEAK200 Series (8200 Series Code)
8200-1500: 24VDC low-voltage power supply, ordinary cabinet installation, basic model without explosion-proof certification
8200-1502: ATEX Zone2 EU explosion-proof certification, low-voltage DC power supply version
8200-1504: High-voltage AC/DC power supply, panel embedded conventional general model 8200-1508: Class 1 Div 2 explosion-proof, high-voltage power supply, bulkhead wall-mounted (this model)
8200-1509: Panel-mounted structure + North American explosion-proof certified high-end version
