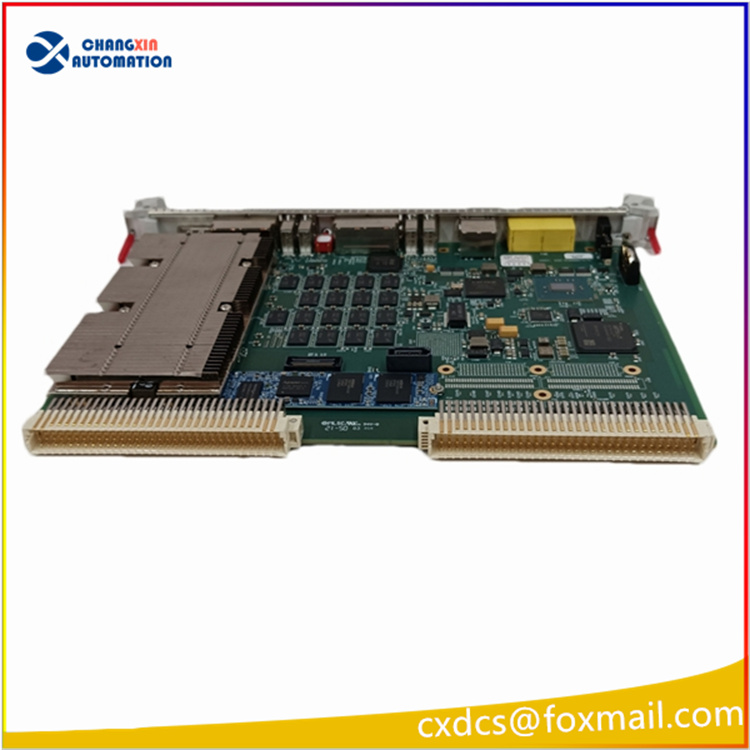

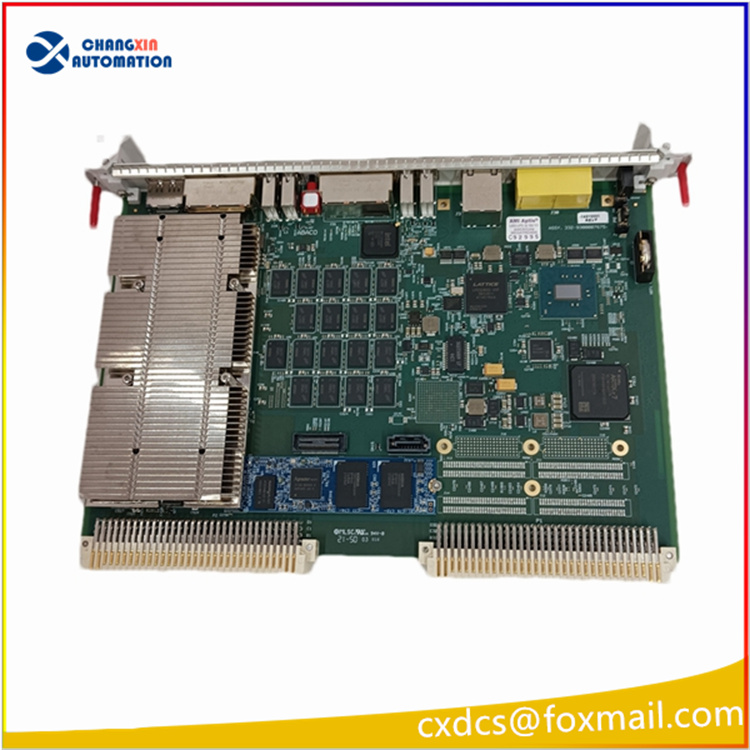

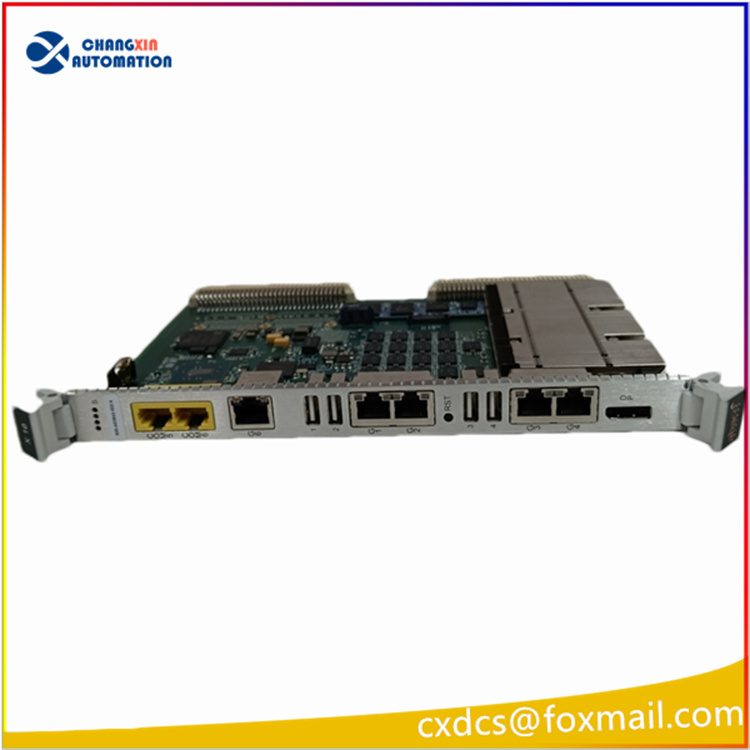

Abaco X10-14210201 (Material Code: 605-A53842-002) 6U VPX ruggedized single-board computer
I. Product Description
Abaco X10 series 6U VPX architecture ruggedized SBC single-board computer, originally derived from GE Intelligent Platform embedded product line; it adopts conduction cooling design, is equipped with multi-core processors, integrates multiple high-speed Ethernet and general peripheral interfaces, supports mainstream embedded operating systems, and is used as a core module for task computing in harsh environment embedded platforms; X10-14210201 is the model code, and 605-A53842-002 is the original factory material code, and the two are in one-to-one correspondence.
Key Technical Parameters
Board Specification: 6U VPX standard backplane slot
Cooling Method: Conduction cooling (optional air-cooling version)
Memory: On-board DDR4 memory, supports large capacity configuration
External Interfaces: Multiple Gigabit Ethernet, USB, serial communication interfaces
Storage: Supports onboard solid-state storage expansion
Power Supply: Follows VPX standard backplane power supply
Operating Temperature: -40 ℃ ~ +85 ℃ (conduction cooling condition)
Environmental Standards: Meets MIL-STD-810 vibration shock, MIL-STD-461 electromagnetic compatibility specifications
Supported Systems: VxWorks, Linux, embedded Windows
Expansion Capability: Supports VPX high-speed interconnection channels, can be paired with I/O, signal processing subcards
Product Performance
Multi-core computing architecture, with low-latency real-time data processing capability, suitable for high throughput tasks;
Fully hardened hardware design, without fan conduction cooling, adaptable to high vibration, wide temperature harsh conditions;
Rich standardized high-speed I/O, can directly interface with sensors, communication links, storage units;
Modular VPX architecture, easy to build distributed computing systems with multi-module networking;
Long life cycle military-grade component selection, meets the long-term service spare parts requirements of equipment;
Software and hardware support mainstream real-time operating systems, facilitating program transplantation for airborne, shipborne projects.
Application Domains
Aircraft airborne mission computers, flight control and data processing systems
Ship, offshore platform airborne embedded monitoring and signal processing platforms
Radar, sonar, electronic countermeasure real-time signal computing units
Railway vehicle core control equipment
Field mobile equipment, industrial high-hardened measurement and control systems
X10 Series Related Models on the Same Platform
X10-14210201 (605-A53842-002) Standard 6U VPX Single Board Computer
Different configuration derivative versions of the X10 series (processors, memory, interface configurations are different, and cannot be directly interchangeable)
Note: When purchasing and replacing spare parts, the complete model X10-14210201 and the material number 605-A53842-002 must be checked simultaneously. The modified configuration hardware cannot be directly compatible.
