I. Basic Product Information
Brand: ASML (Netherlands ASML)
Material Number: 4022.455 (The complete material number usually has a suffix, such as 4022.455.09864)
Equipment Compatibility: ASML PAS series DUV deep ultraviolet lithography machines (KrF 248nm, ArF 193nm light source models, such as PAS 5500, 7000, 7500 series)

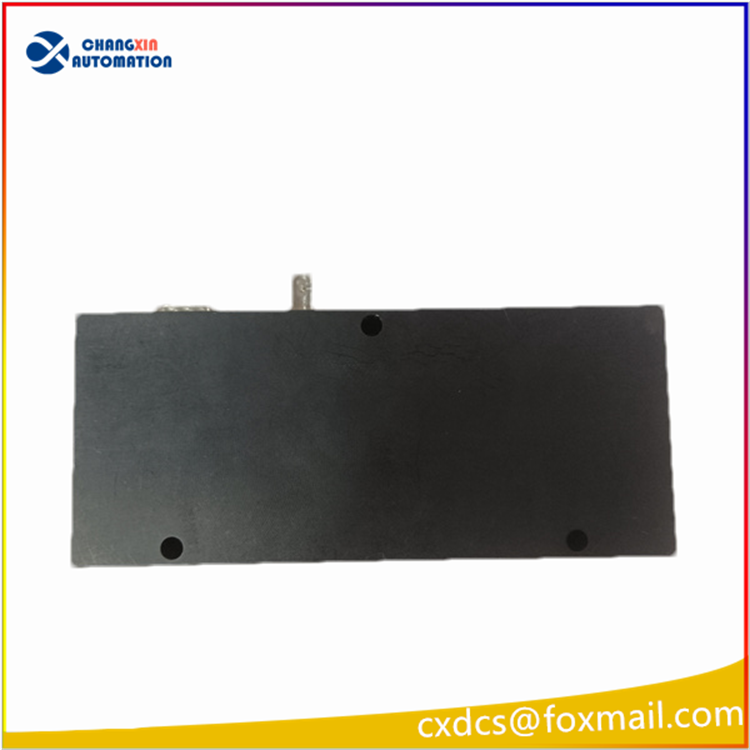

Product Type: Off-Axis Green Laser Controller Component, belonging to the core spare part for the optical alignment calibration of the lithography exposure system
Core Functions
Off-Axis Laser Emission and Beam Control
Output high-precision green calibration laser, used for wafer and mask stage nanometer-level alignment positioning, optical path calibration, automatic correction of beam direction, ensuring lithography alignment accuracy, which is the key sensing control unit of the alignment system of the lithography machine.
Laser Parameter Closed-loop Adjustment
Built-in power stabilization circuit, automatic beam expansion calibration unit, real-time correction of laser offset, power attenuation, suppression of alignment errors caused by temperature drift and vibration of the optical path.
Industrial Control Data Interaction
Connected to the main control system of the lithography machine through DB9 serial port + RF coaxial interface, upload laser power, beam position, fault diagnosis data, support equipment self-diagnosis, abnormal alarm.

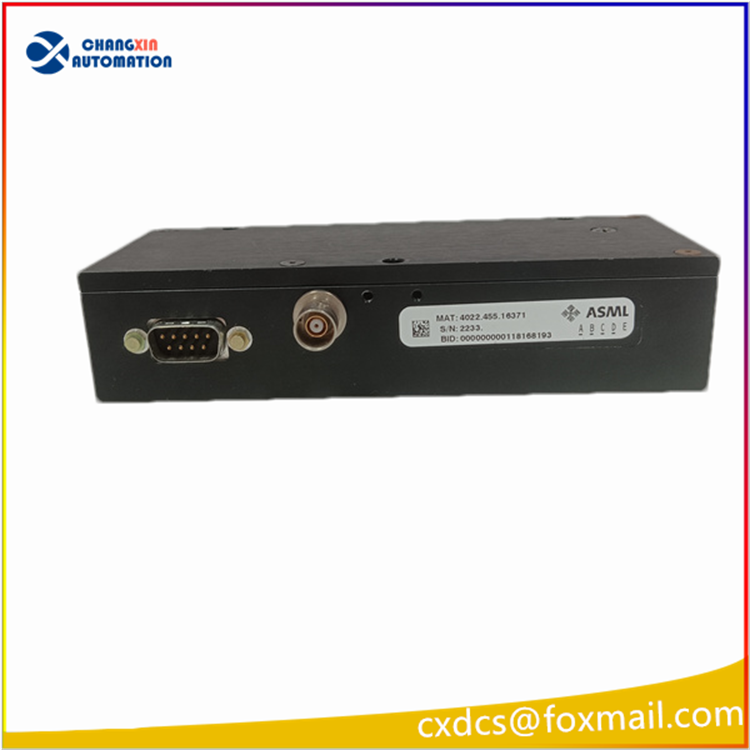

Hardware Interface Configuration
DB9 RS232 Serial Port: Equipment debugging, main control communication, parameter configuration, fault log reading
SMA RF Coaxial Interface: Laser signal / feedback sensing link transmission
Built-in status detection circuit, real-time monitoring of laser emission abnormalities, line short circuit, power limit faults
Key Technical Parameters
Laser Type: Continuous green calibration auxiliary laser
Compatible Light Source: KrF 248nm, ArF 193nm excimer DUV lithography system
Beam Calibration Accuracy: Sub-micron level beam pointing adjustment
Working Environment: Semiconductor ultra-clean workshop, working temperature 18~24℃, low dust, resistant to strong electromagnetic interference
Installation Method: Cabinet embedded fixed installation, industrial sealed aluminum shell shielding design
Protection: Full metal shielding shell, to prevent laser electromagnetic interference from affecting the precise measurement and control circuit of the lithography machine
Typical Application Scenarios
Mask and wafer alignment optical path calibration of ASML PAS5500/PAS7000/PAS7500 series DUV lithography machines
Automatic compensation of optical path deviation before lithography exposure, real-time monitoring of laser beam stability
Core optical spare parts for mature semiconductor manufacturing processes from 28nm to 130nm mass production equipment
