Eaton XVS-440-10MPI-1-10 10.4-inch industrial human-machine interface HMI

Product Description

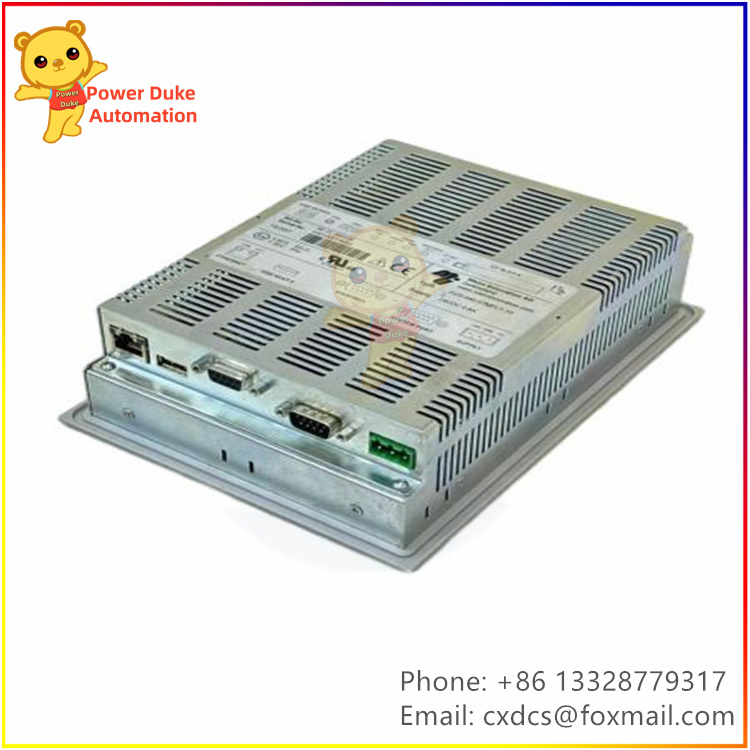

Eaton XVS-440-10MPI-1-10 is a 10.4″ industrial HMI of XVS400 series. It adopts infrared touch TFT color display with Windows CE operating system, and optional on-board PLC function. Equipped with multiple industrial communication interfaces including Ethernet, RS232 and PROFIBUS/MPI. It features metal front frame, laminated non-reflective safety glass and flush panel mounting. It realizes on-site data visualization, parameter setting, alarm display and equipment operation. Certified to UL508 and cUL, it can run stably in industrial control cabinets for long-term operation.

Product Parameters

• Series: XVS400 Industrial HMI Human Machine Interface
• Model: XVS-440-10MPI-1-10
• Display Size: 10.4 inch TFT color display
• Resolution: VGA 640×480
• Touch Type: Infrared touch
• Color Depth: Configurable 65536 / 256 colors
• Operating System: Windows CE (PLC function requires separate license)
• Power Supply: 24V DC (SELV)
• Communication Interfaces: Ethernet 10/100Base-TX, RS232, PROFIBUS/MPI, 2×USB Host, USB Device
• Mounting: Flush panel mounting
• Front Panel Protection: IP65
• Housing: Metal enclosure & front plate, non-reflective laminated safety glass
• Operating Temperature: 0℃ ~ +50℃
• Certifications: UL508, cUL
• Storage: CF card supported

Product Application

Applied in automatic production lines, machinery, HVAC, water treatment, packaging machinery and energy equipment. As HMI terminal, it monitors real-time operating data, modifies process parameters, displays fault alarms and controls equipment start/stop. It connects with Siemens PLC via MPI/Profibus and other automation controllers via Ethernet, installed inside control cabinet for local visualization and operation of whole automation system.

Same Series Models (XVS400 Series HMI)

XVS-440-10TVB-1-10, XVS-440-06TVB-1-10, XVS-440-06MPI-1-10, XVS-440-12MPI-1-10, XVS-440-15MPI-1-10
